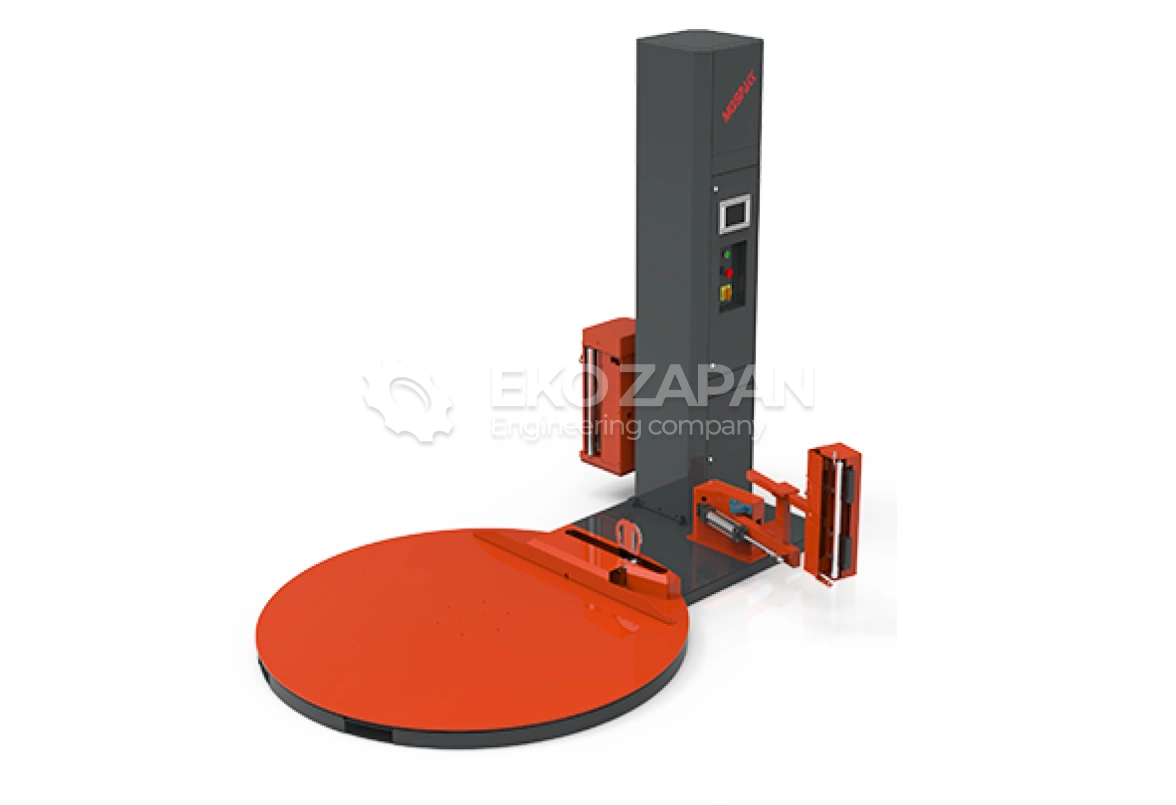

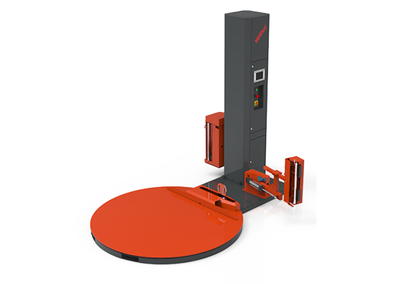

MP206 Rotating Base Pallet Winding Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 1 800
$
Article: 1875
Specifications
Features of the semi-automatic model:
- A carriage with pre-stretching of the film, a coefficient of 300%.
- Double chain structure column, variable carriage speed.
- Intuitive touch screen, easy to operate.
- Photoelectric induction, automatic determination of the height of the load, increased intelligence.
- Automatic spring drop prevention device under the film frame for greater safety.
| Parameter | Meaning |
| Maximum loading weight | 2000 kg |
| Power | 1.35 kW |
| Table rotation speed | 0-15 rpm, variable speed, smooth start and stop of the table |
| Machine voltage | 220 V, 50/60 Hz, 20 A |
| Winding height | 2100 mm, 2400 mm, 2600 mm |
| Machine weight | 700 kg |
| Diameter of the turntable | 1500 mm/1650 mm/1800 mm |
| Dimensions | 2565 x 1500 x 2535 mm |
| Pre-tension coefficient | 300% |
| Management | Programmable PLC control |
| Carriage speed | 3 m/min |
| Operating mode | auto/manual |
| Packing speed | 20-40 pallets/hour |
