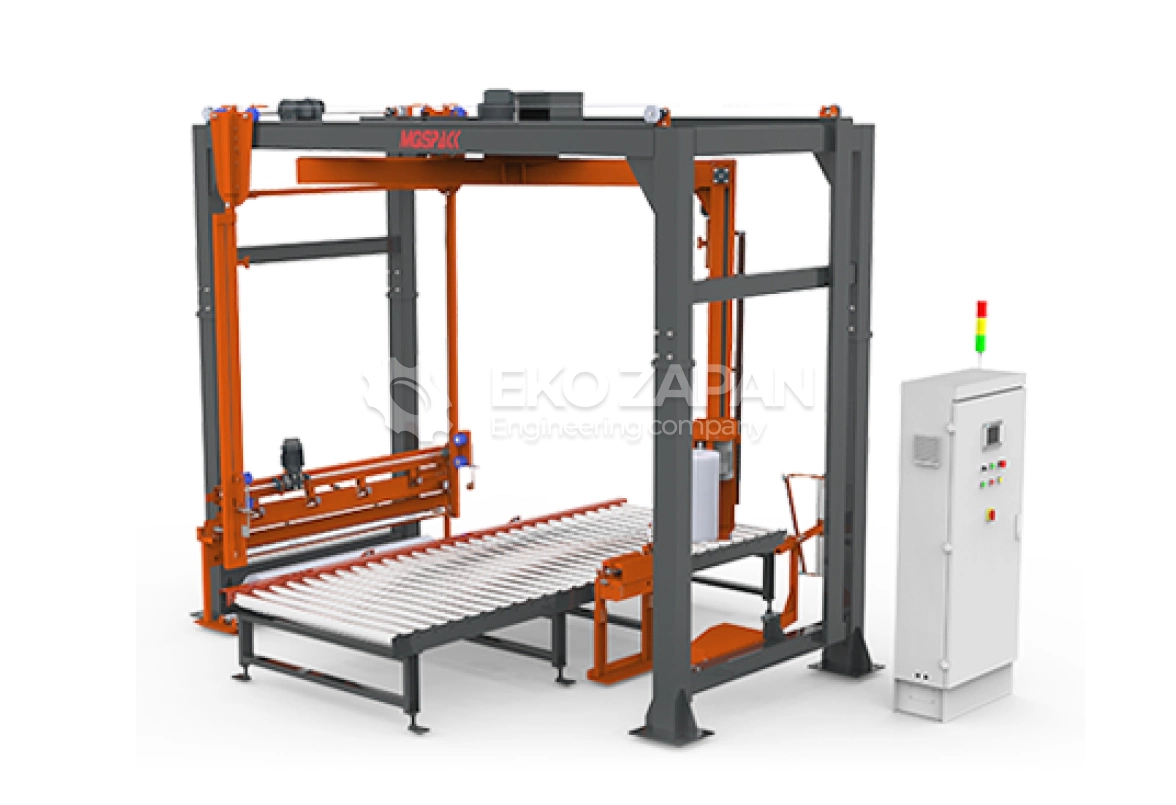

Pallet Winding Machine with MP 402D Console
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 6 700
$
Article: 1879
Specifications
Fully automatic machine with rotating boom and top sheet stacker
- Two modes of operation: winding or winding with laying of the top sheet.
- Automatic film application and trimming.
- Pre-stretching ratio: 250%.
- Automatic winding according to pre-set parameters. Touch screen for setting winding cycles, upper/lower cycles and film tension.
- Return of the rotating boom to its original position, highly sensitive braking system.
Product Parameters:
| Parameter | Meaning |
| Rotation speed | 0-20 rpm, variable |
| Power | 2.5 kw + conveyor line |
| Pallet size | W (500-1200) mm * L (500-1200) mm |
| Conveyor height | 450 mm |
| Winding height | 1800 mm |
| Conveyor speed | 0-12 m/min |
| Pre-tension coefficient | 250% |
| Machine voltage | 380 V, 50/60 Hz, 20 A |
| Carriage speed | 3 m/min |
| Machine weight | 1800 kg |
| The speed of pulling the top sheet | 12 m/min |
| Dimensions of the machine | 3200 x 3220 x 3120 mm |
| The size of the top sheet | 1800 mm, length is adjustable |
| Management | PLC programmable control, touch screen |
| The pruning method | The heater |
| Operating mode | fully automatic, without human intervention |
| Packing speed | 20-30 pallets/hour |
| Air pressure | 0.4-0.7 MPa |
