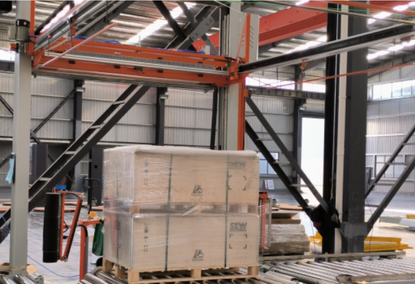

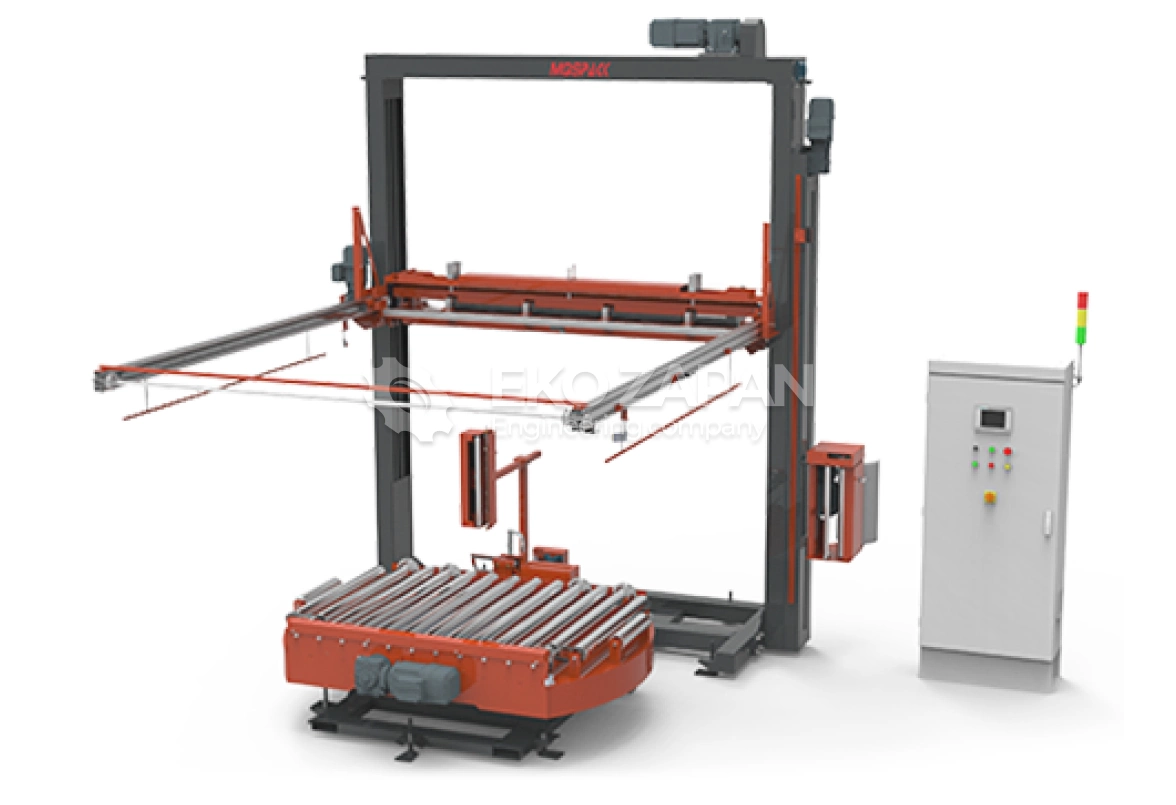

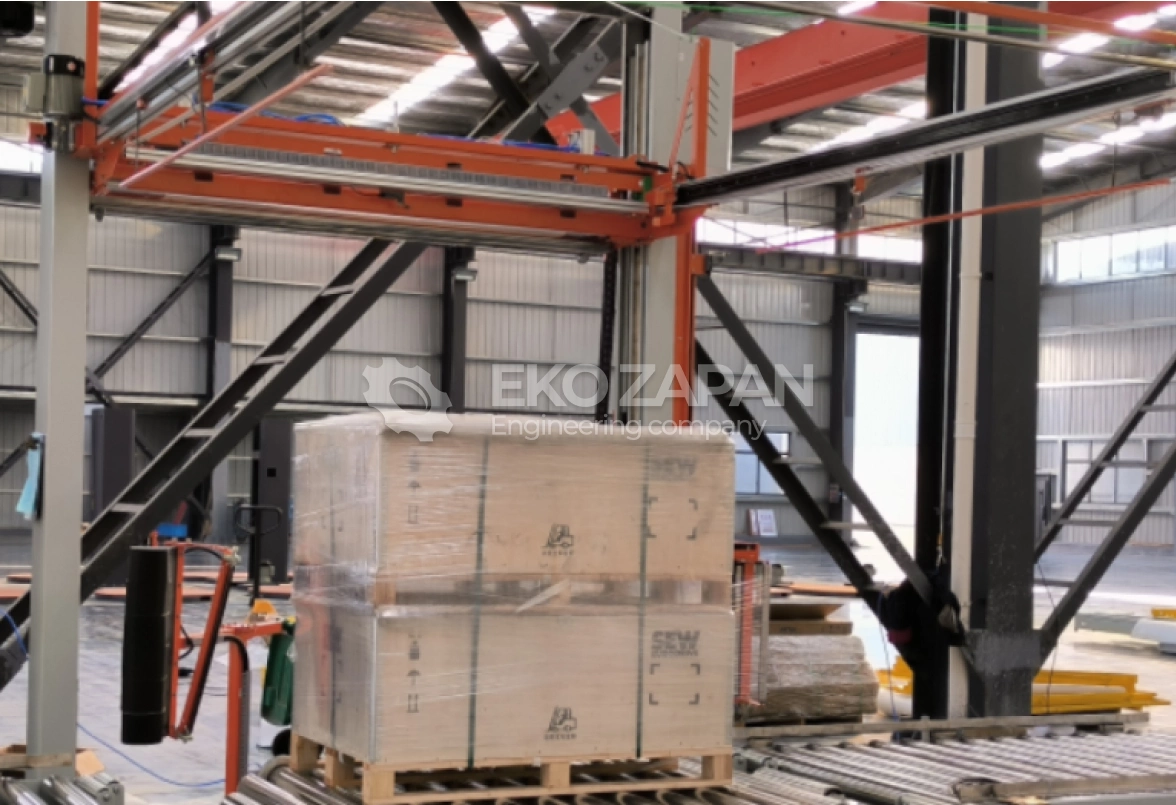

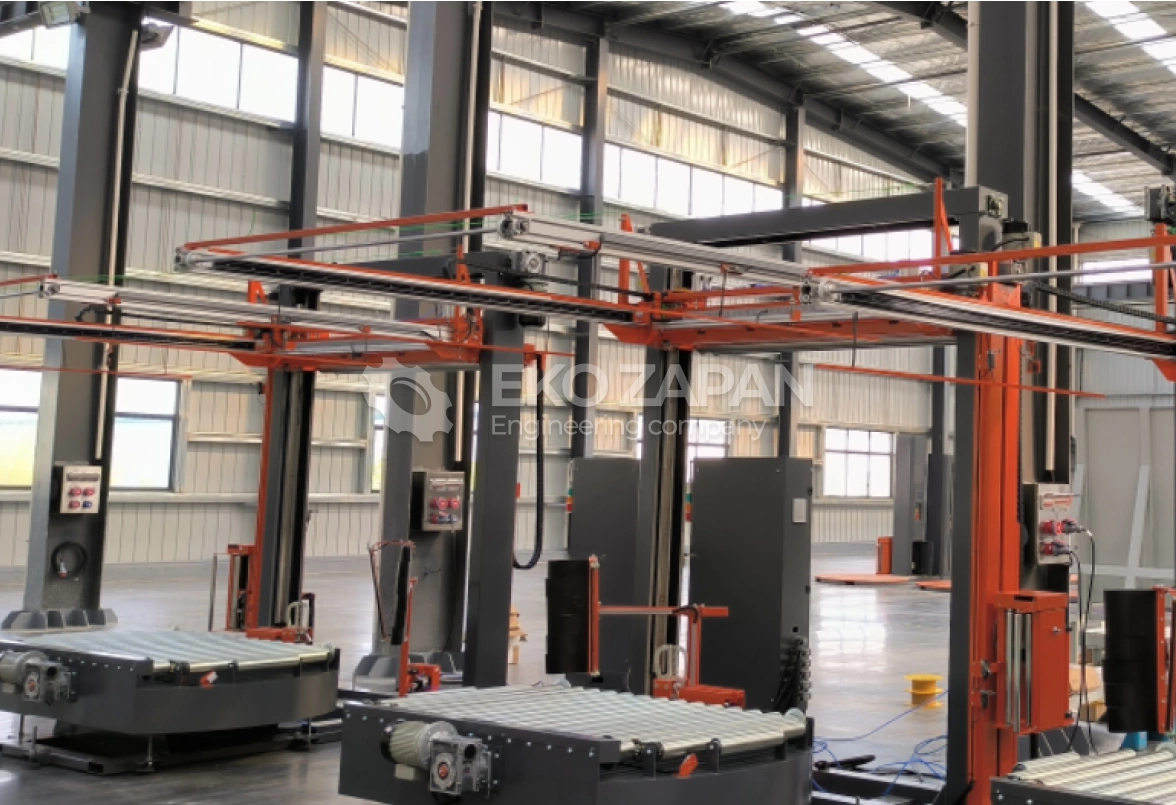

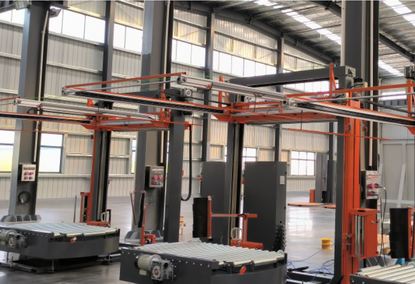

MP207B Conveyor Winding Machine

Why Choose Us?

From 6 500 $

Article: 1877

Specifications

Fully automatic Winding and sheltering machine

Two modes of operation: winding or winding with laying of the top sheet.
The film winding mechanism automatically closes, tears off and tears the film.
The top film laying mechanism automatically pulls, cuts and stacks the film.
Equipped with a remote control device for one-button remote control.
A carriage with pre-stretching of the film, a coefficient of 250%.
Intuitive touch screen, easy to operate.
The photoelectric sensor automatically detects the height of the load, increasing intelligence.
Double limit switches on top and bottom for better safety.

Product Parameters:

Parameter	Meaning
Maximum loading weight	2000 kg
Power	1.35 kW
Table rotation speed	0-15 rpm, variable speed, smooth start and stop of the table
Machine voltage	220 V, 50/60 Hz, 20 A
Winding height	2100 mm, 2400 mm, 2600 mm
Machine weight	700 kg
Diameter of the turntable	1500 mm/1650 mm/1800 mm
Dimensions	2565 x 1500 x 2535 mm
Pre-tension coefficient	250%
Management	Programmable PLC control
Carriage speed	3 m/min
Operating mode	auto/manual
Packing speed	20-40 pallets/hour
