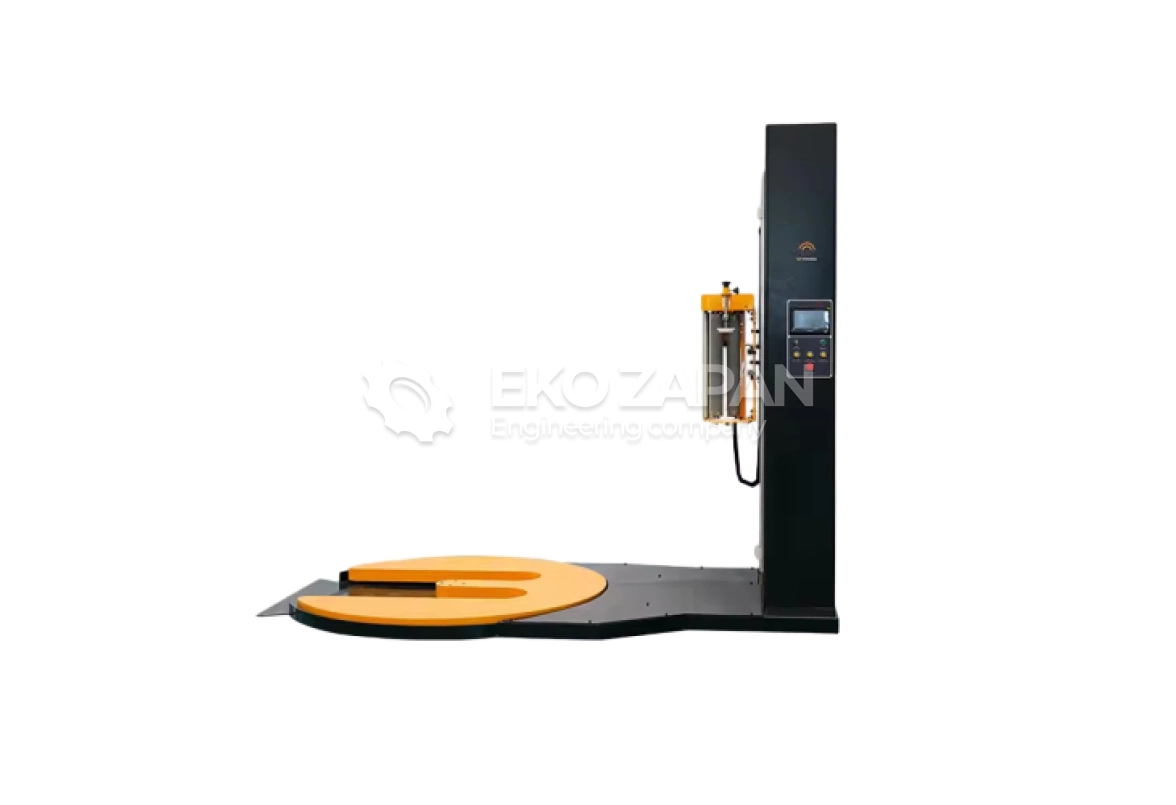

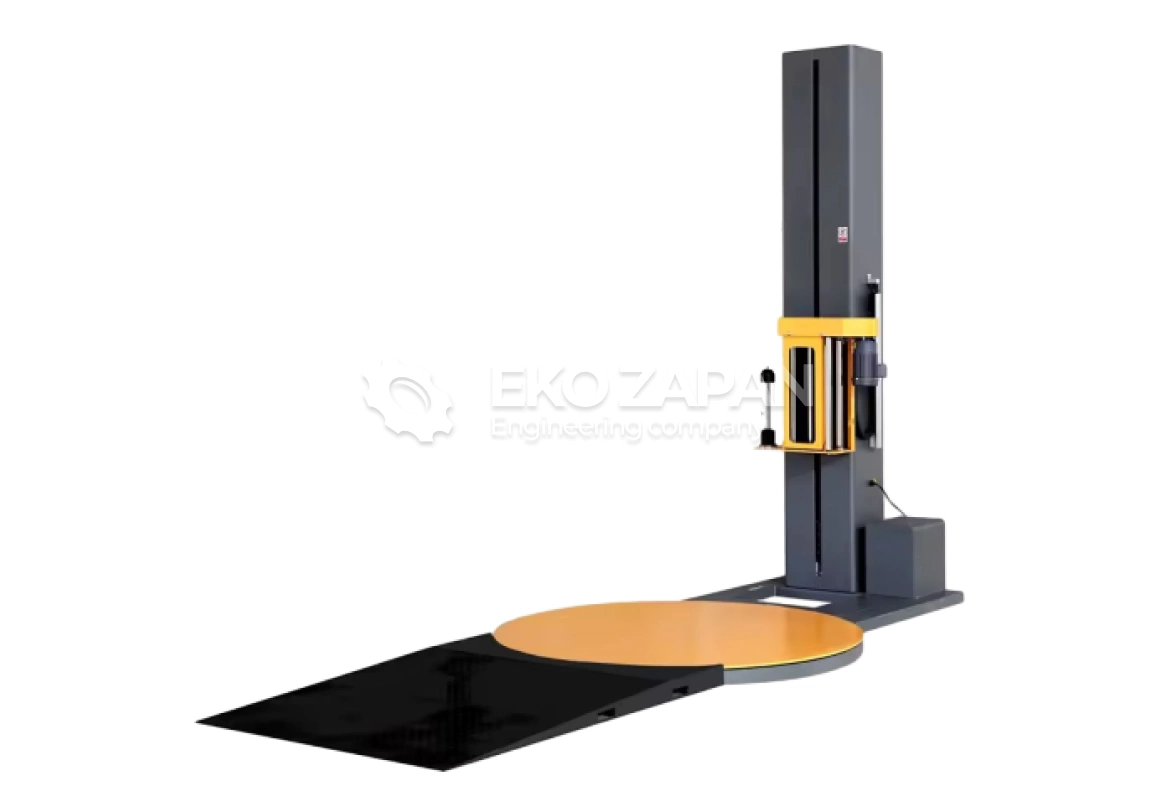

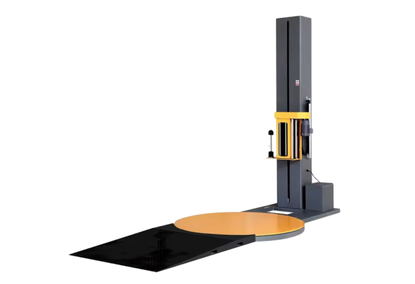

Pallet Winding Machine with Turntable
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 4 000
$
Article: 2452
Specifications
| Parameter | Description |
| Automation | Automatic |
| Weight | 600 kg |
| The main components | PLC, motor |
| Voltage | 110V/220V |
| Function | Pallet winding |
| Packaging efficiency | 20-40 downloads/hour |
| The speed of the turntable | 0-12 rpm |
| Diameter of the turntable | Diameter: 1650 mm, height: 85 mm |
| Max. load on the turntable | 2000 kg |
| The frame is up and down | Double chain, variable speed |
| Film feed | Pre-tension |
| The management system | PLC |
| Maximum machine weight | 700 kg |
| Machine Dimensions | 2650 mm * 1650 mm * 2400 mm |
| Package Dimensions | 2650 mm * 1650 mm *700 mm |
| Electrics | Single-phase 220 V, 50 Hz |
| Power | Rotary table: 0.75 kW, film feed: 0.3 kW, up and down: 0.4 kW |
