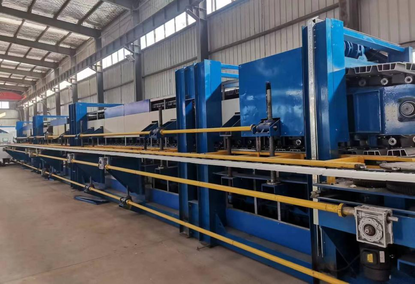

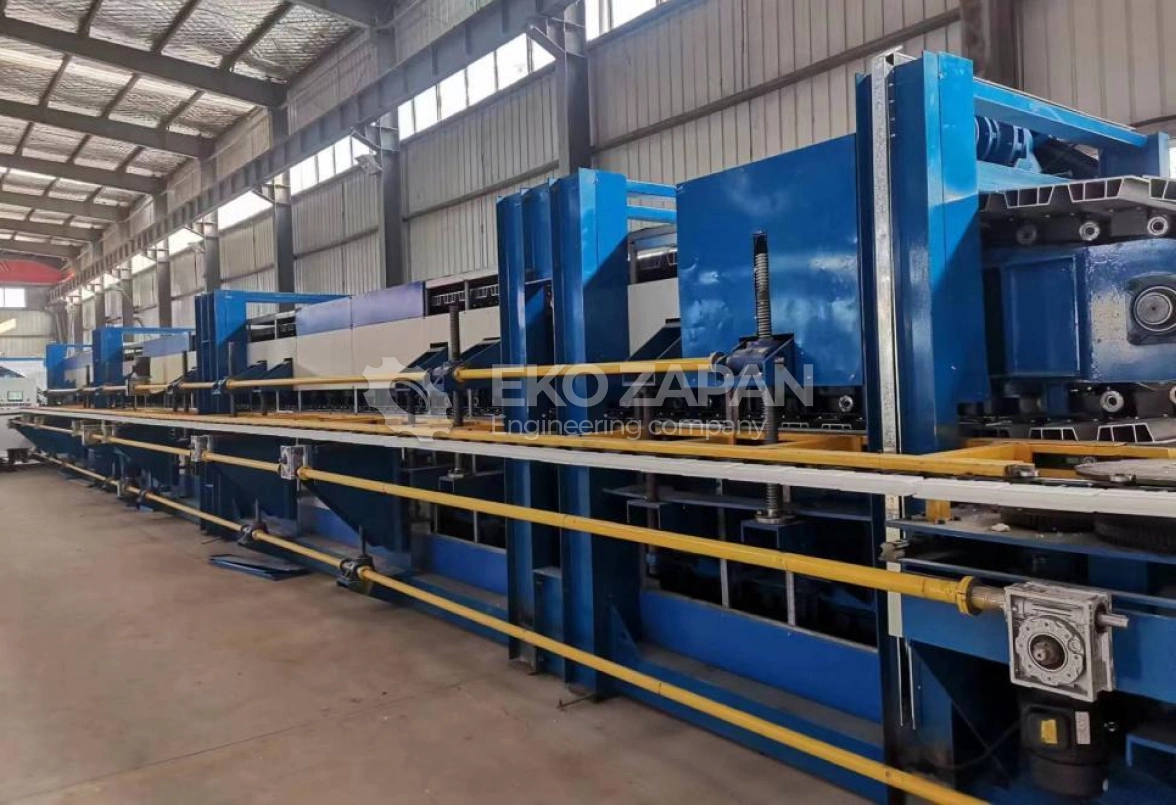

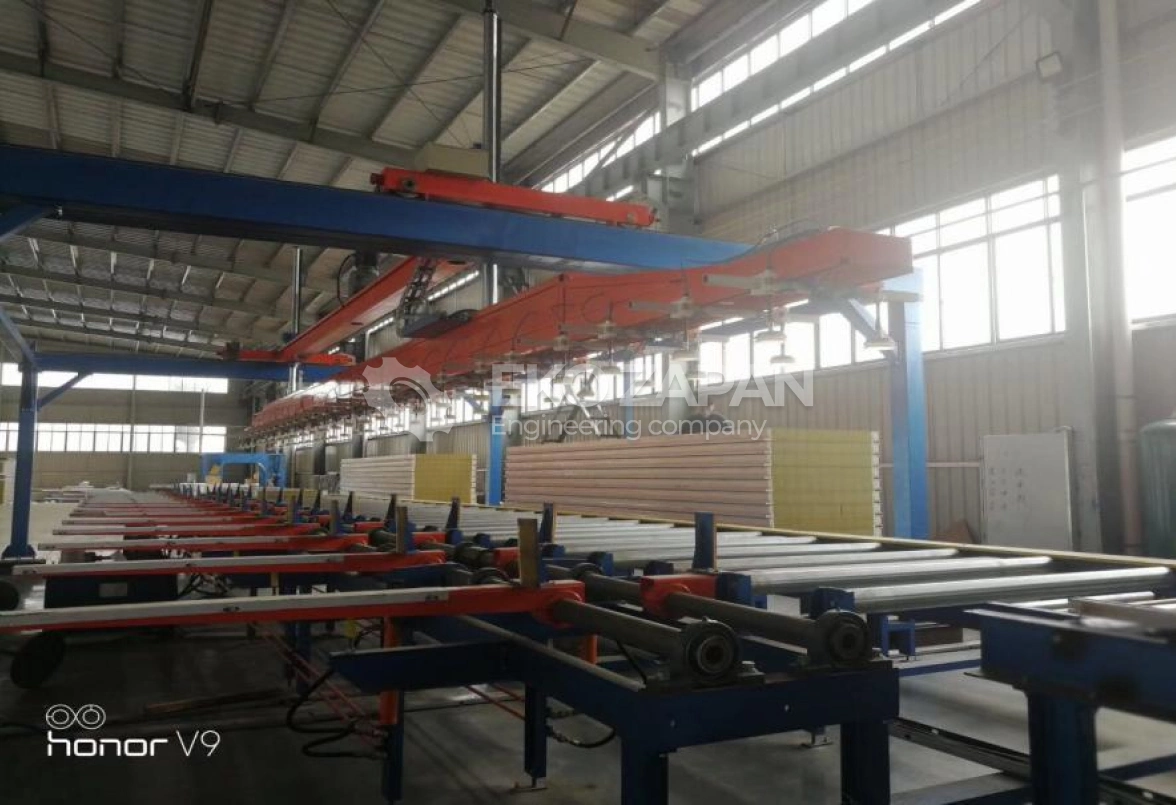

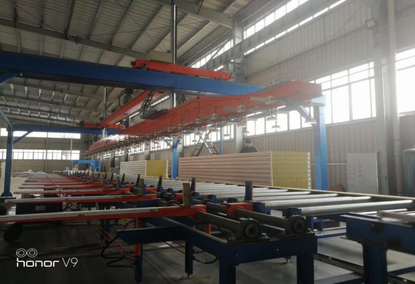

Automatic Sandwich Panel Production Line

Why Choose Us?

From 432 600 $

Article: 66

Specifications

Description

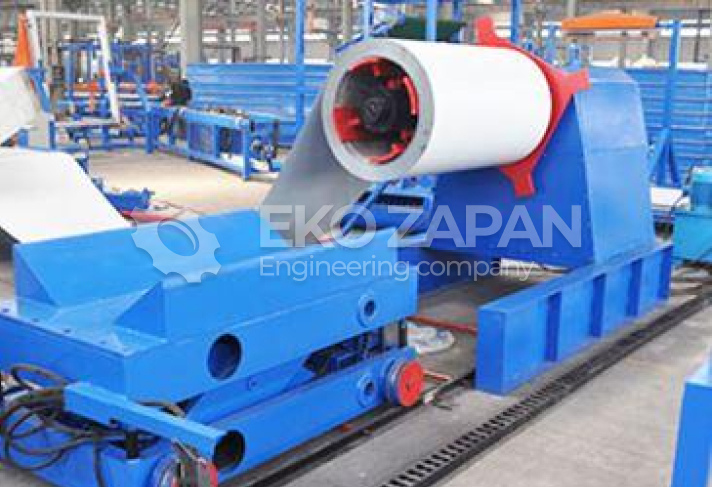

Hydraulic uncoiler with trolley. For continuous feed of the tape.
A mill for upper profiles. A two-tier mill with parameters.
A mill for lower profiles. A single-tier mill with parameters.

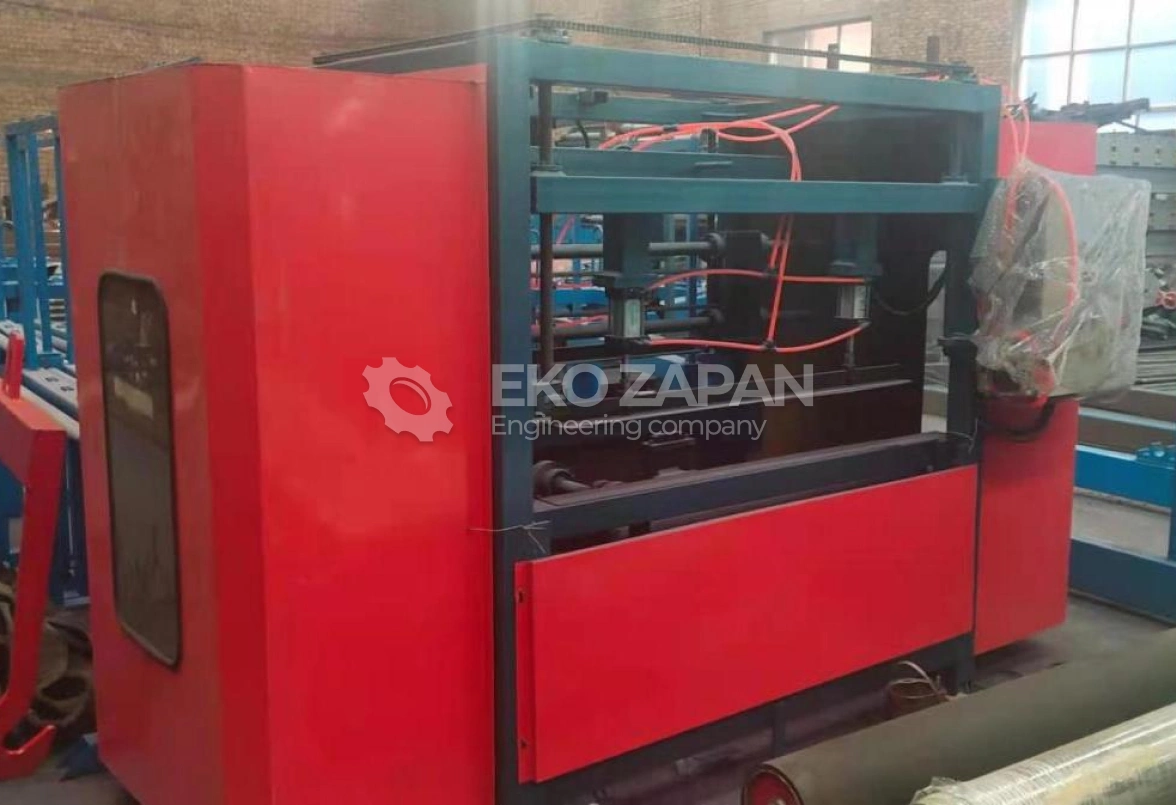

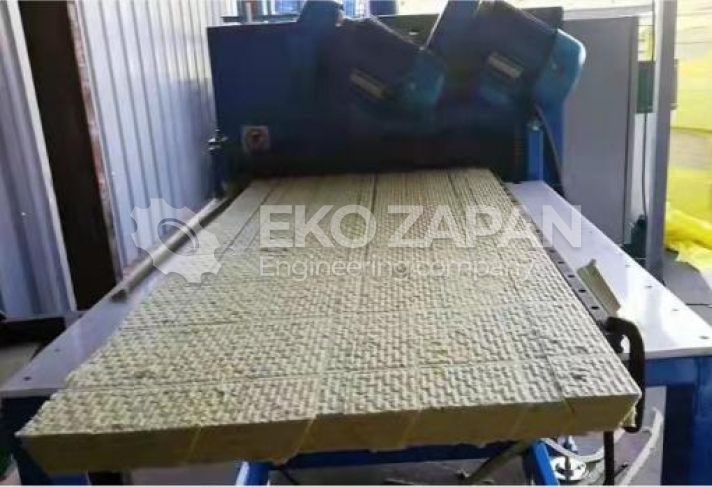

Automatic machine for feeding and cutting of mineral wool. With parameters for sawing mineral wool.
Glue distribution system. For uniform application of glue.
Crawler machine for clamping sandwich panels. With parameters.
Electric heating system. To ensure the temperature conditions.

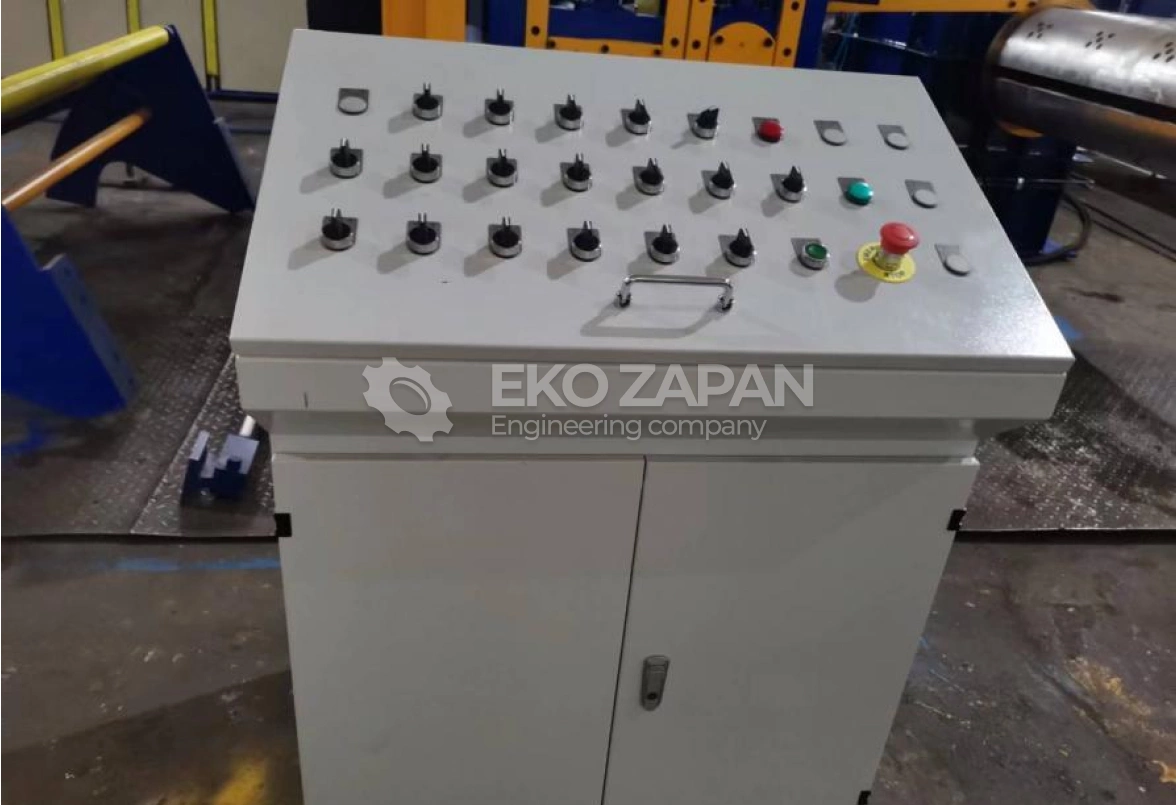

The control system. Responsible for coordinating all stages of production.

Automatic cutting device. The minimum length of sandwich panels is 3 m, the maximum width of the segment is 1200 mm.
The reception desk. The length is 12 m.
Automatic stacker. For automatic piling of finished sandwich panels.
An additional device for cutting a trapezoid. Manual feeding of the mineral wool, automatic cutting and manual feeding of the trapezoid into the roof.

4.9 10

Loading of raw materials. Mineral wool or foam.
Unwinding. Continuous feed of the tape from the roll to the rolling mill (width 1250 mm, inner diameter of the roll 1 m, axial load 7 t).

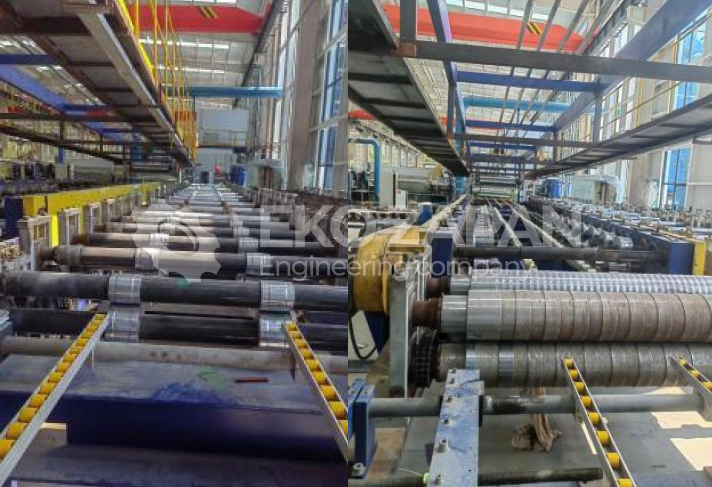

Production of metal profiles. Two-tier mill for upper profiles, single-tier mill for lower profiles.

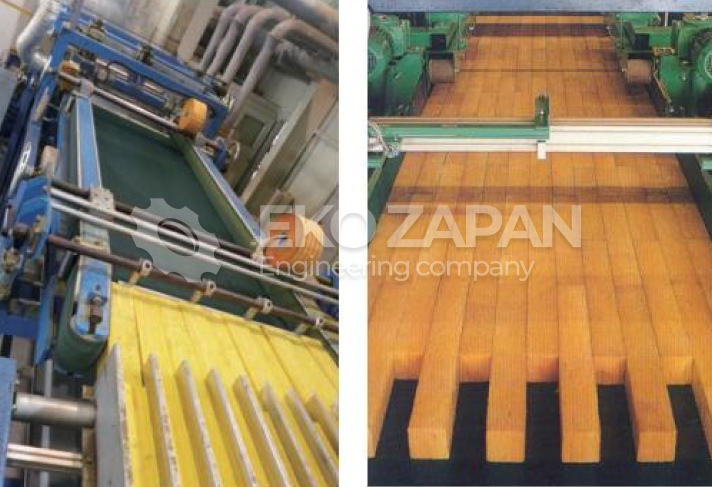

Submission of the mineral wool. Automatic machine for feeding and cutting of lamella minvata.
Glue dripping and molding. The glue distribution system for applying glue to the minvata, then forming the sandwich panel.
Stamping and cutting. Forming with stamps and cutting out panels.

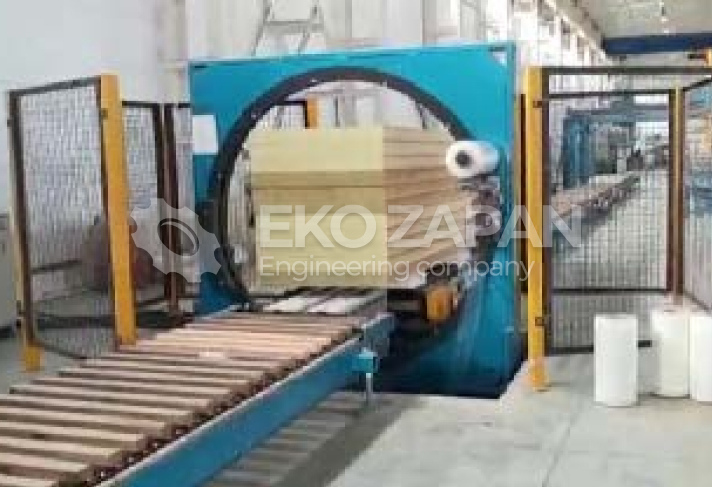

Package. Crawler sandwich panel clamping machine and automatic packaging machine.
