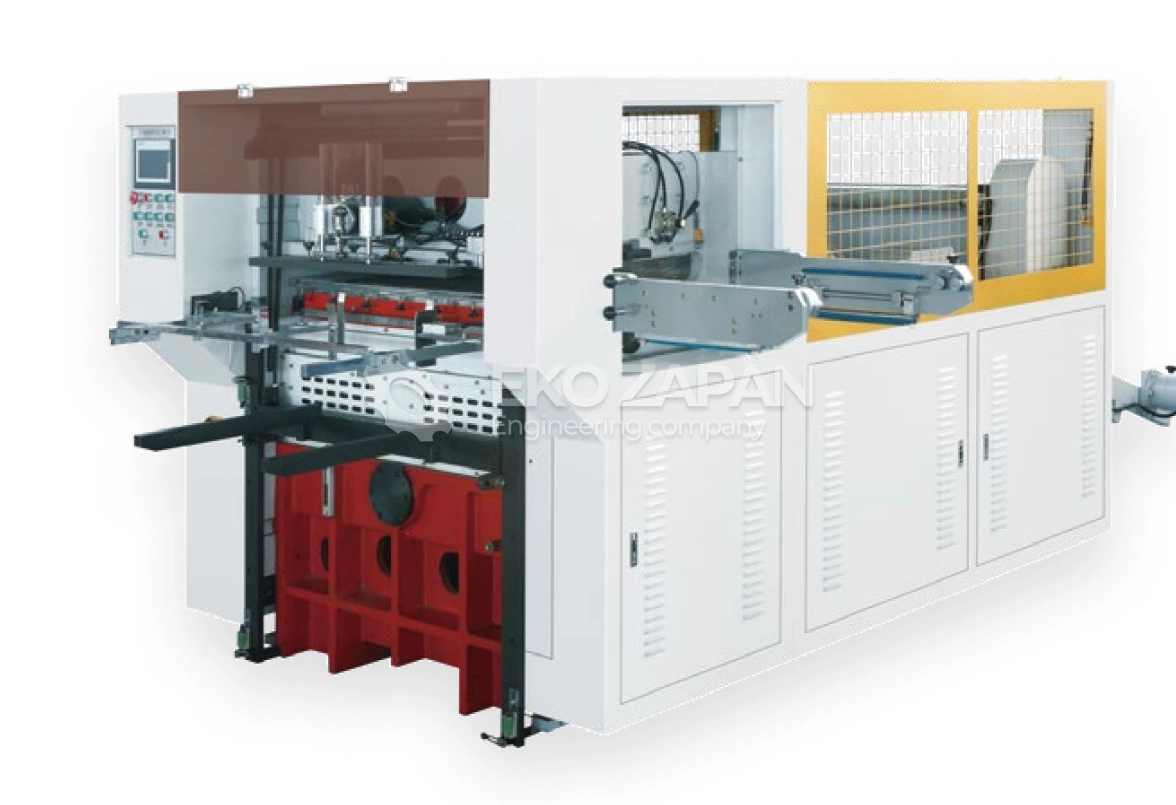

GOOD: MB-980 Paper Roll creasing and Die cutting machine

Description:

We present to you our newest product, the MB-980 automatic die-cutting machine, ideal for cutting rolls of paper into sheets using wooden dies. It is an indispensable solution for the production of paper cups or in printing factories. One machine is able to meet the need for 15 paper forming machines.

The MB-980 is controlled by a PLC, and the paper roll is fed using a servo motor. You can pre-configure the die-cutting method by following the color code or setting a specific cutting length. This is especially convenient for rolls with or without printed paper.

The wooden die is air-locked using a pneumatic coupling, which makes replacing the die an easy task. The sensor and the web guide system provide more precise die-cutting. The automatic lubrication system facilitates daily maintenance.

The paper feed and discharge are controlled by a single button and the same motor, providing smoother paper feed and better orientation, as well as improving the stacking of finished products. The overload protection system makes operation safe. We use key parts from a leading imported brand, ensuring stable operation of the machine for a long time.

Main Features:

1. The dust-proof device keeps the oil tank clean, preventing clogging due to wear of the parts.
2. The automatic motor drive allows you to adjust the die-cutting pressure up or down, simplifying the operation process.
3. Manual correction, automatic lubrication, automatic oil supply.
4. The pneumatic locking plate system ensures an automatic locking accuracy of ± 0.10 mm, significantly reducing labor costs.
5. Automatic temperature control of the copper tile guarantees the safety of the device when the set temperature is exceeded.

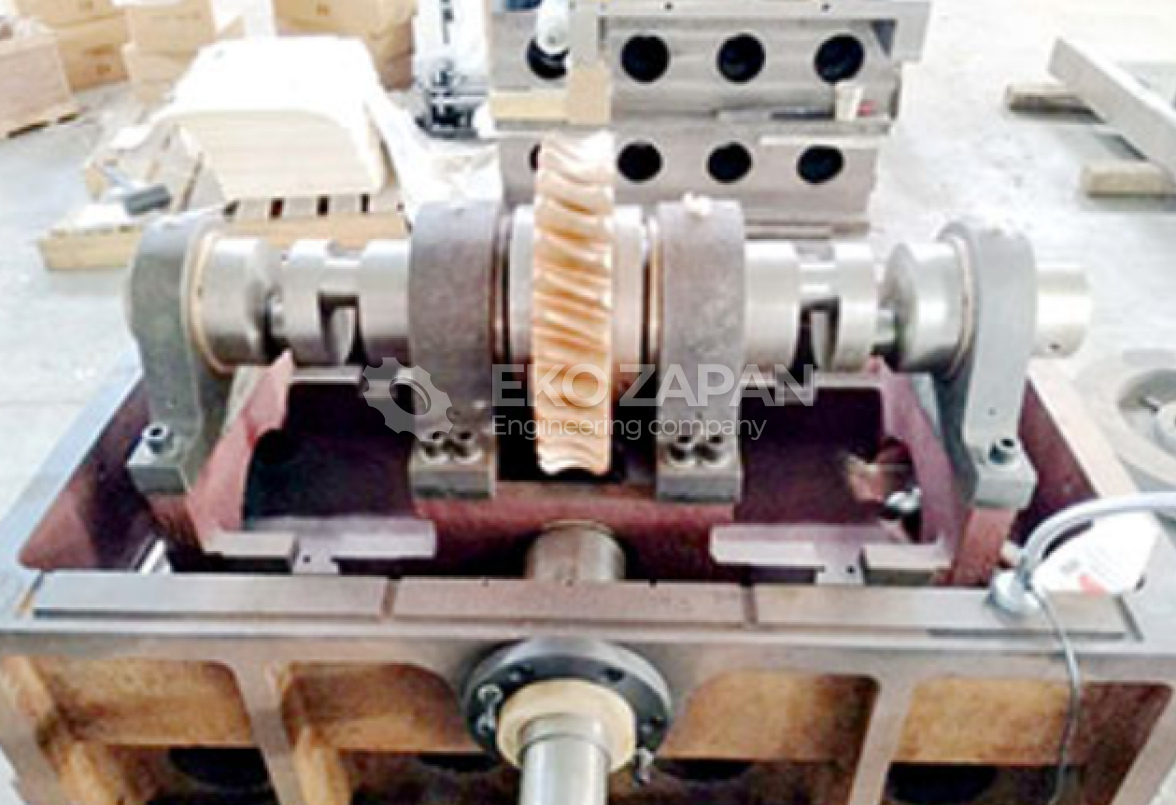

6. The worm wheel and worm gear provide powerful and stable pressure; pressure adjustment is easily done on the touch screen.

The internal copper parts are treated with a one-time turning process, which ensures flawlessness without joints, increasing accuracy, reducing friction and preventing wear.
