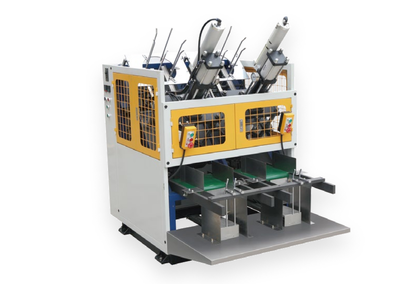

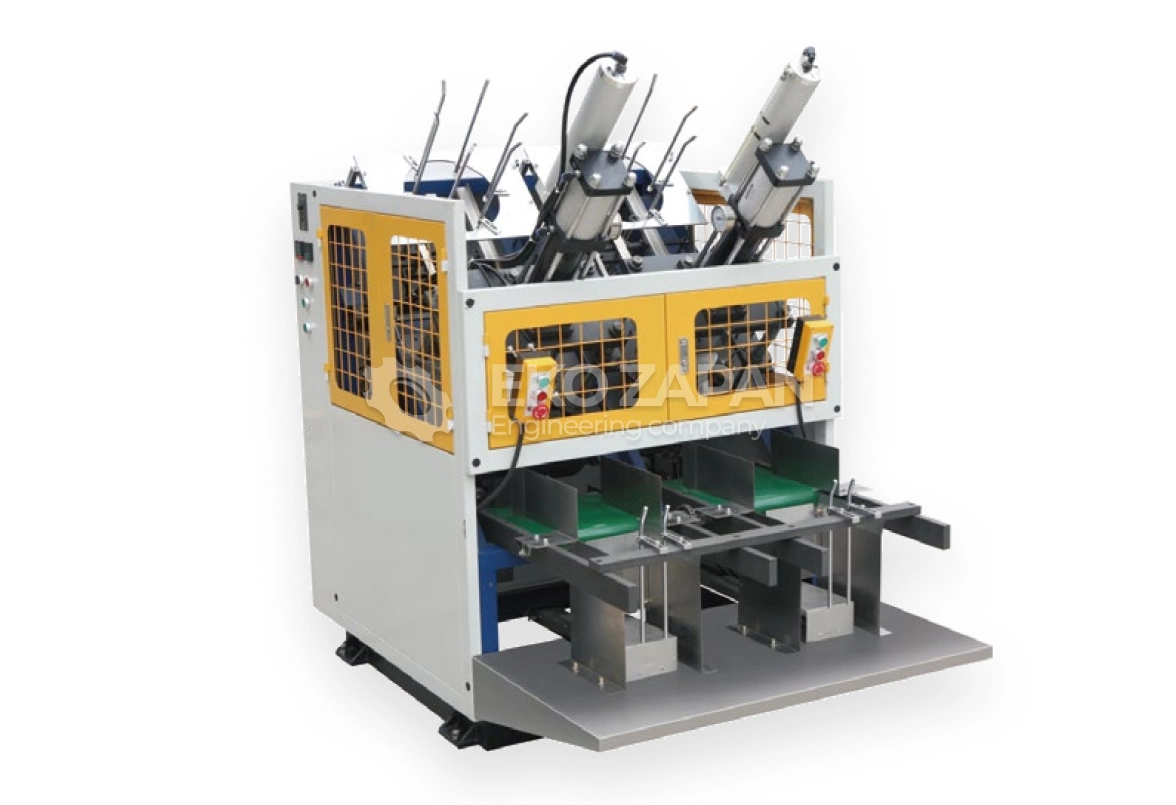

GOOD: MB-400 Paper Plate Forming Machine

GOOD: MB-400 Paper Plate Forming Machine

Номинальная производительность: 60-80 шт/мин
Источник питания: 220 В, 50 Гц
Мощность: 3 кВт
Размеры: 1430×1600×1900 мм
Вес: 600 кг

Efficient equipment for the production of paper plates. A variety of sizes, processing of different materials, high productivity (60-80 pcs/min).

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 12 500 $

Article: 96

Specifications

Description

Model Name	MB-400
Paper plate size	5-11 inches (replaceable shape)
Raw material	100-500 g/m (paper/cardboard, aluminum foil coated paper, single-sided polyethylene coated paper or other)
Rated performance	60-80 pcs/min (only two stations)
Power supply	220 V, 50 Hz or other required
Working air source	0.8 MPa, 1.5 m3/min (need to buy an air compressor)
Total capacity	3KW
Measurement	1430 mm×1600 mm×1900 mm
Weight	600 kg

4.9 10

Automatic Paper Plate Forming Machine: A Revolution in Production

The automatic paper plate forming machine provides a complete production cycle – from paper feeding to the delivery of ready meals, including heating, temperature control and molding. It is characterized by excellent performance, high speed, safety and convenient maintenance, which has made it popular all over the world. The unique ability to simultaneously mold two plates of different sizes and shapes adds flexibility in production.

MB-400 High-Speed Machine: Innovation in Technology and Productivity

The MB-400 high-speed automatic paper plate forming machine has been specially designed to meet the needs of the market. It uses integrated pneumatic mechanical technology, standing out from traditional machines with their low speed and limited safety. The MB-400 offers high speed, high safety standards, and ease of use and maintenance.

Innovative Air Cylinder: Energy Saving and Efficiency

The self-service air cylinder device for paper suction and feeding is an innovative mechanical design that provides efficient energy saving, low air consumption and excellent overall design. This not only improves productivity, but also contributes to sustainability in the use of resources.

Unique Design: Safety and Aesthetics

The special design of the web cover makes the machine not only safe, but also easy to use, and its unique appearance adds aesthetics to the workspace.

Characteristic of MB-400: Efficiency and Versatility

High-Efficiency Air Cylinder
- The maximum pressure is up to 5 tons.
- Advantages over the oil pump: environmental protection, humane design, high speed.

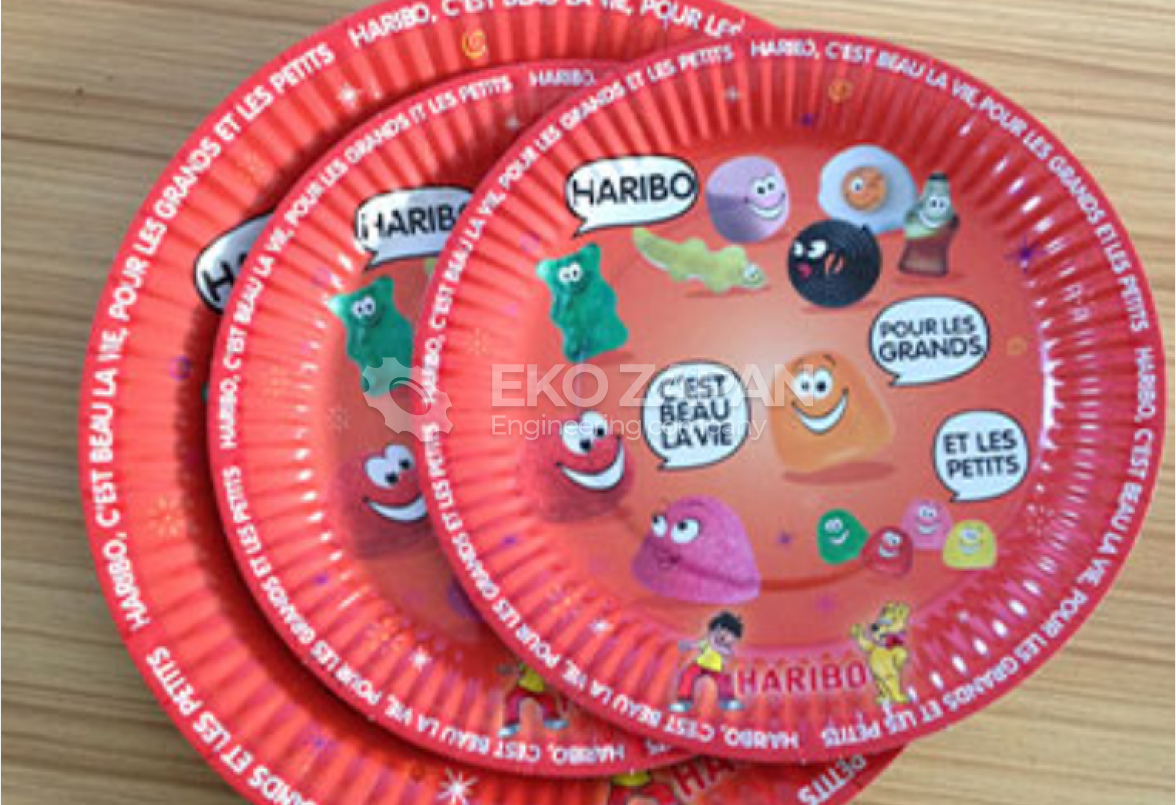

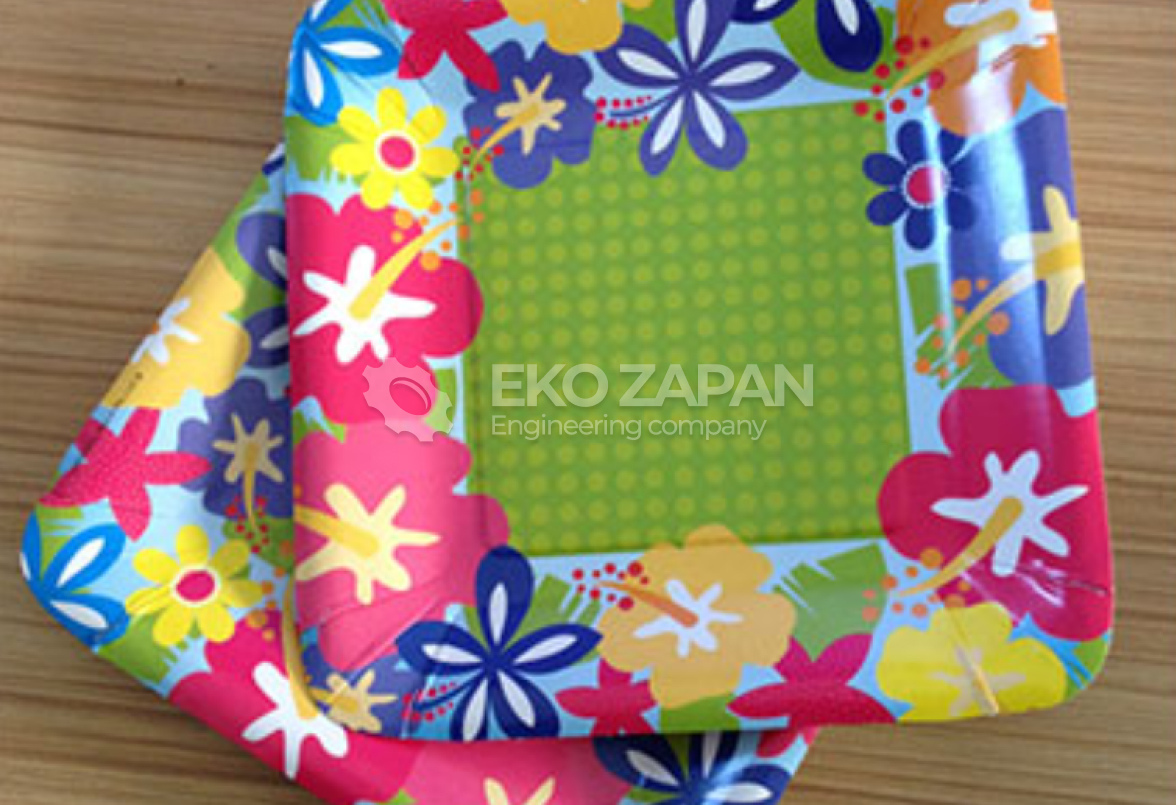

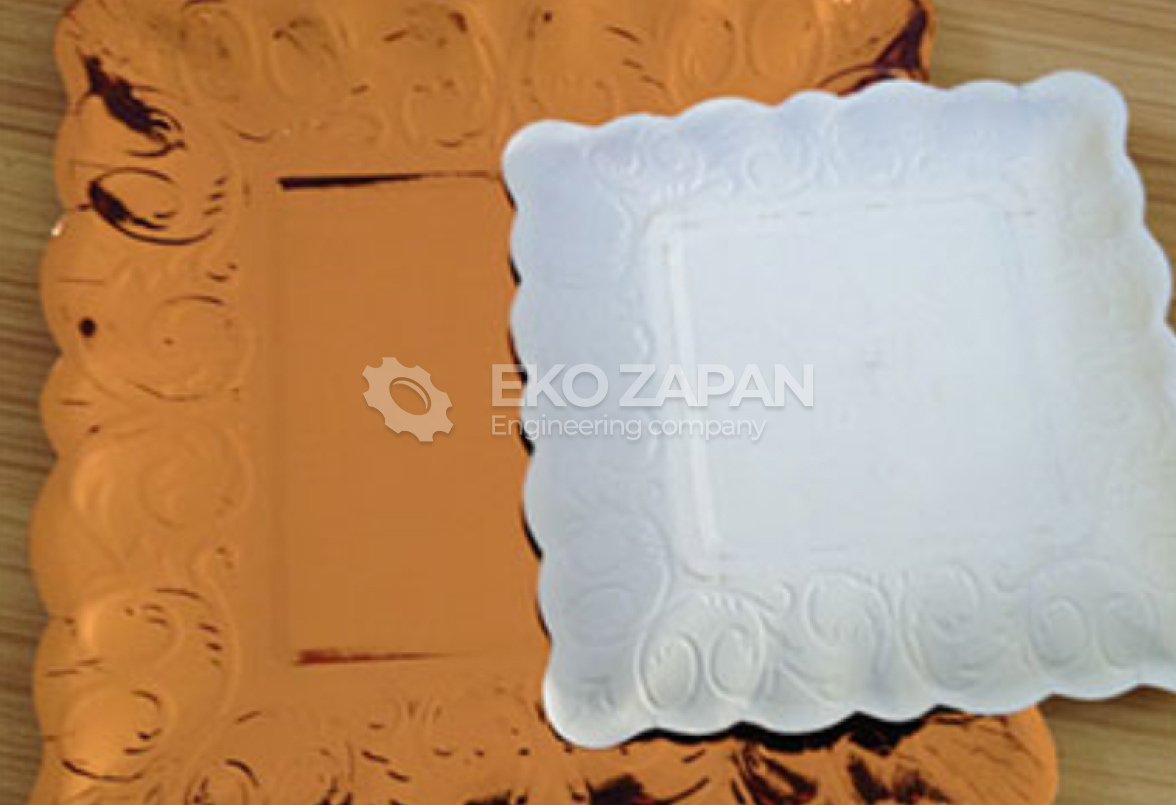

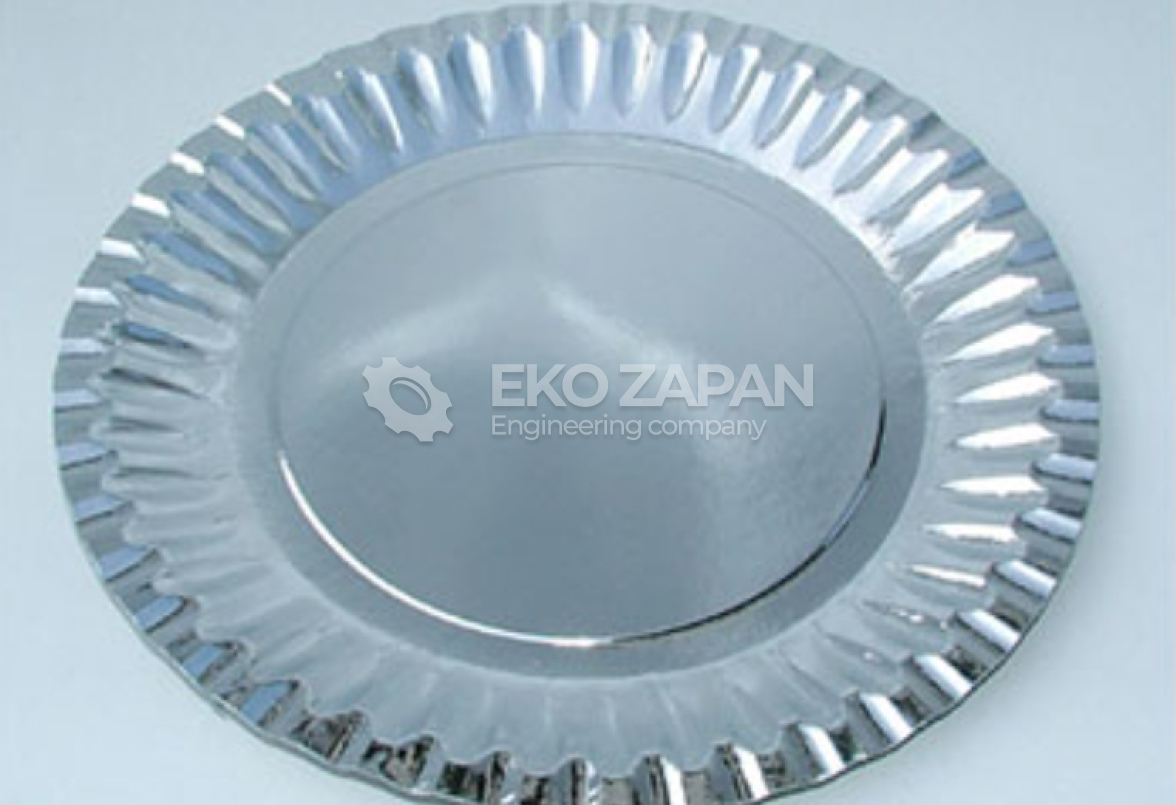

Making A Variety Of Plates
- Paper and aluminum plates.
- Round or square plates with different characteristics and shapes.

Conclusion

The MB-400 high-speed automatic paper plate forming machine has become a true innovative solution in manufacturing worldwide. Its technologies and characteristics make it indispensable for those who value efficiency, safety and convenience.
