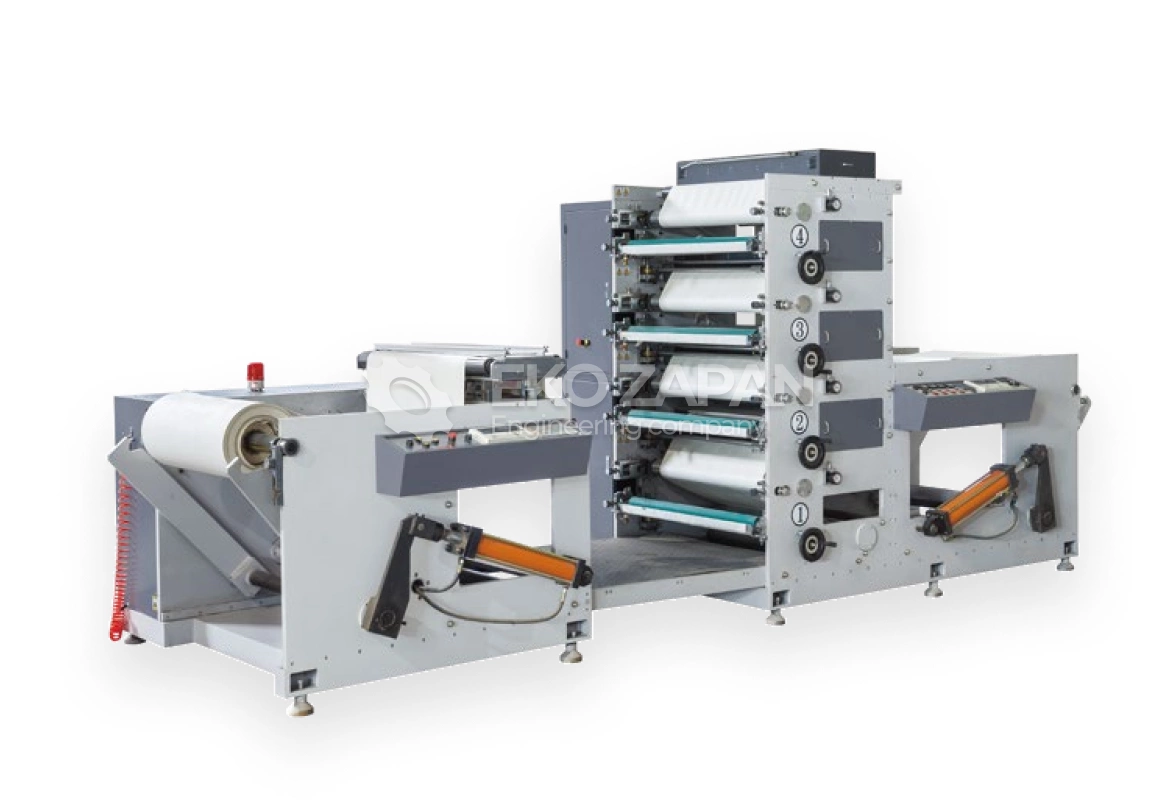

GOOD: Flexographic printing Machine HSS-950

Advantages: Unwinding unit, hydraulics, precise guide, rubber feed, ceramic anilox, IR drying, hitchhiking, meter counter, simple mounting.

Why Choose Us?

From 11 500 $

Article: 78

Specifications

Description

Model Name	HSS-950
Repeat printing	175 - 430 mm
Maximum width	960 mm
Maximum print width	950 mm
Power supply	380 V, 3 phases, 50 Hz
Total capacity	30 kW
The speed of the machine	0-80 m/min
Thickness of the printing plate	1.7 mm
The thickness of the double adhesive tap	0.38 mm
Precision printing	±0.15 mm
Diameter of the air shaft	8 cm

4.9 12

description

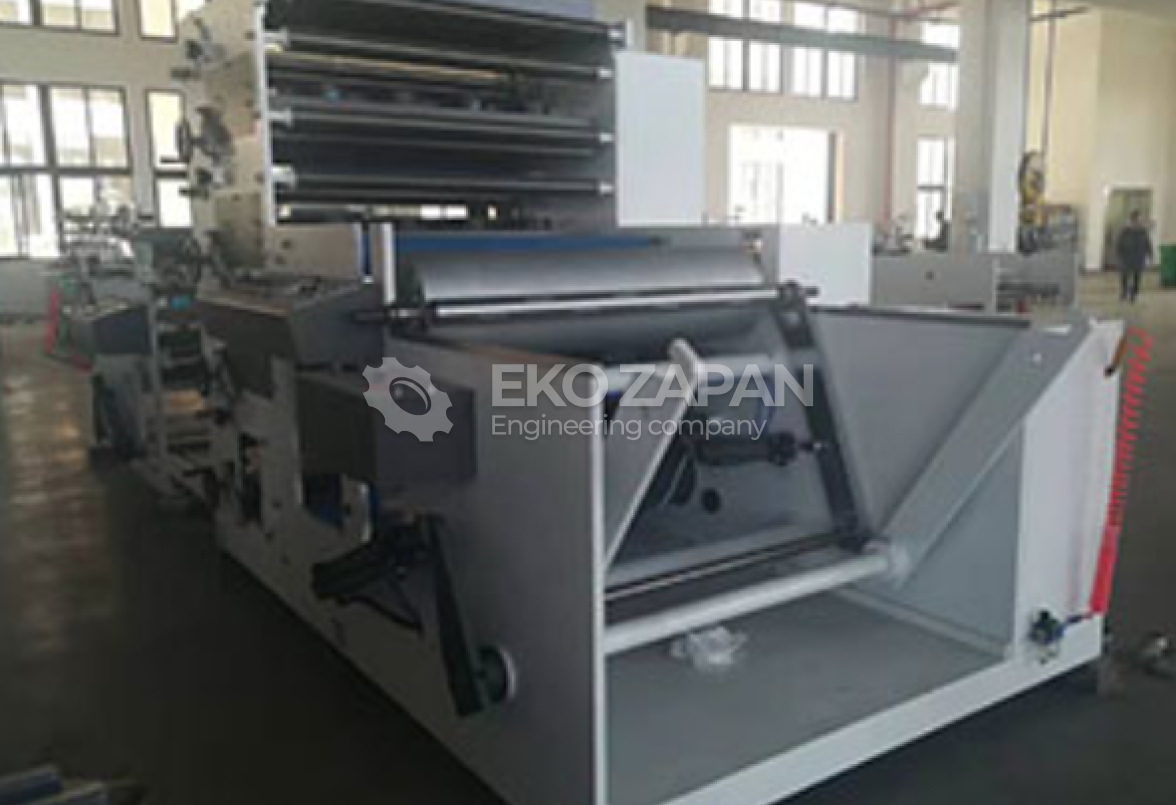

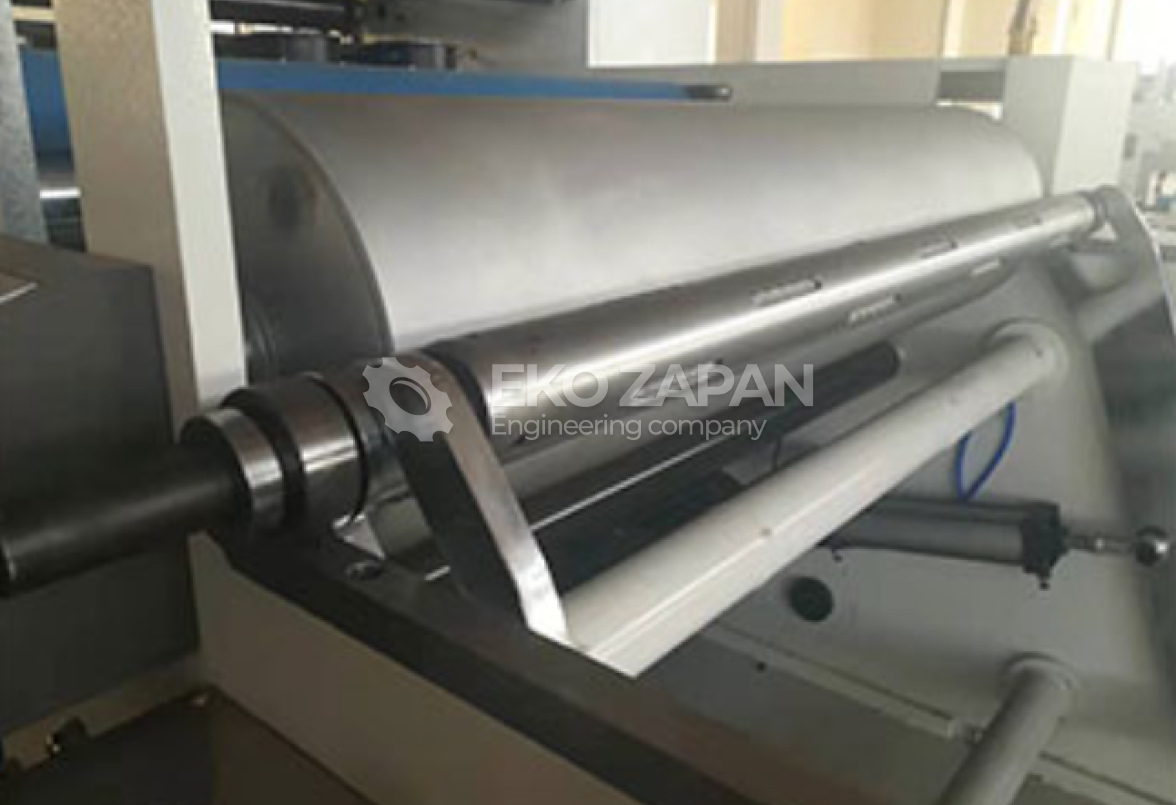

Unwinding and rewinding node:
- Automatic loading and unloading using hydraulics.
- Magnetic powder as a brake, motor as a clutch.
Automatic web guide:
- A splice table.
- Detection mode: Edge check.
- Accuracy: ±0.1 mm.
Feeding system:
- Rubber rollers for feeding.

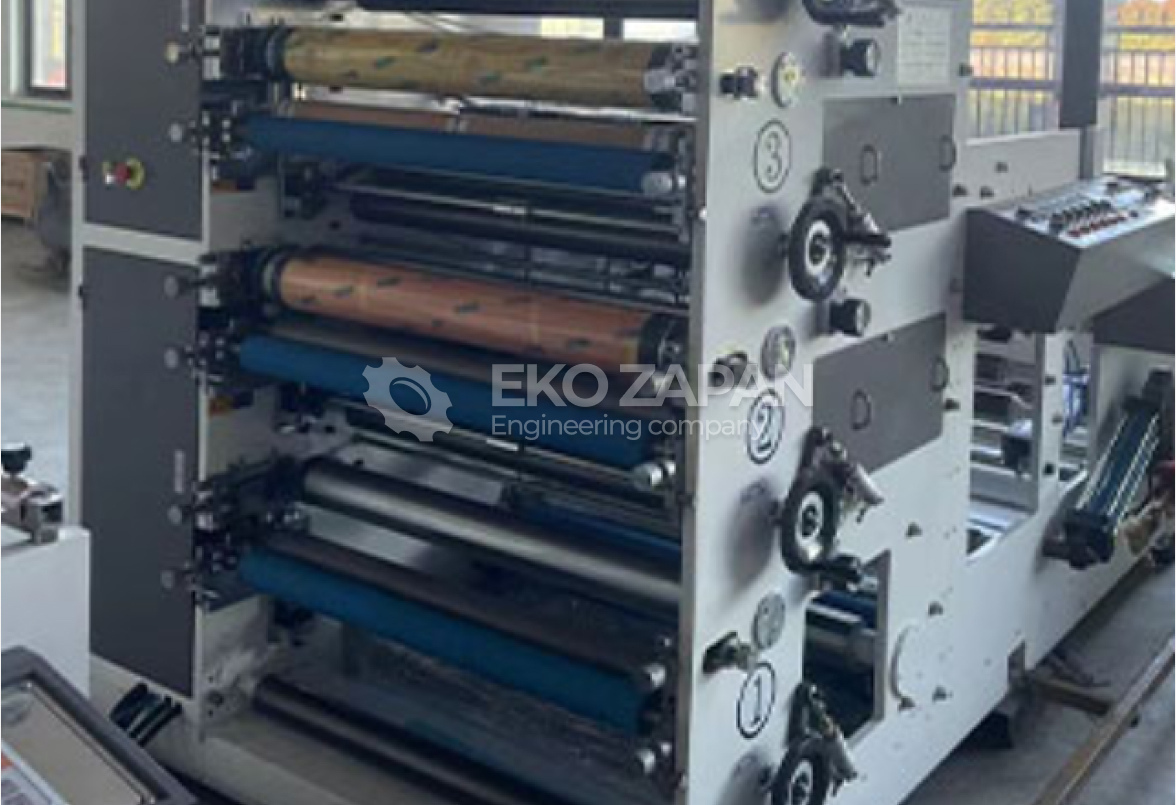

Printing section (4 pcs.):
- Helical transmission.
- Ceramic anilox roller, one set (4 pcs.).
- Printing cylinder, one set (4 pcs.).
- Ceramic Anilox roller: LPI depends on the buyer.
- Printed cylinder: The repeat depends on the buyer.
- One-sided squeegee.
- The inkwell.
- Gear: CP1/8.
Drying system:
- ik.
Automatic stop function.
Meter counter.
Easy mounting of the plate.
