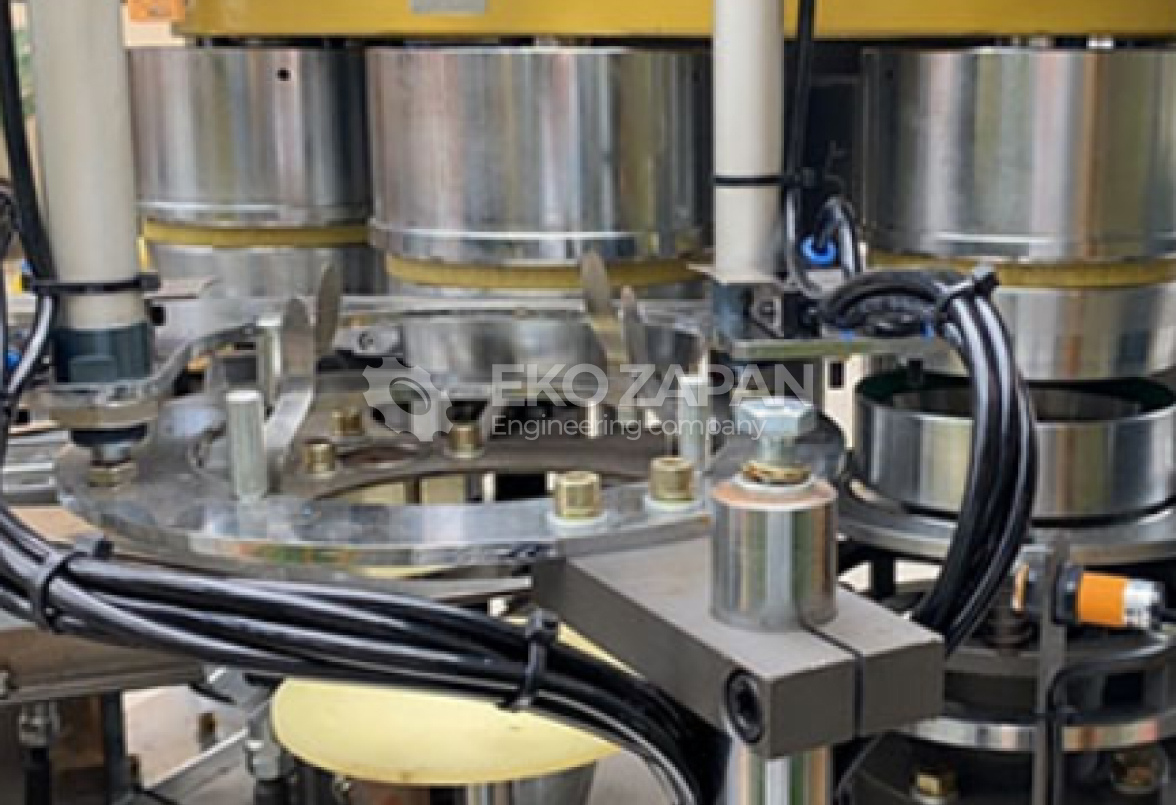

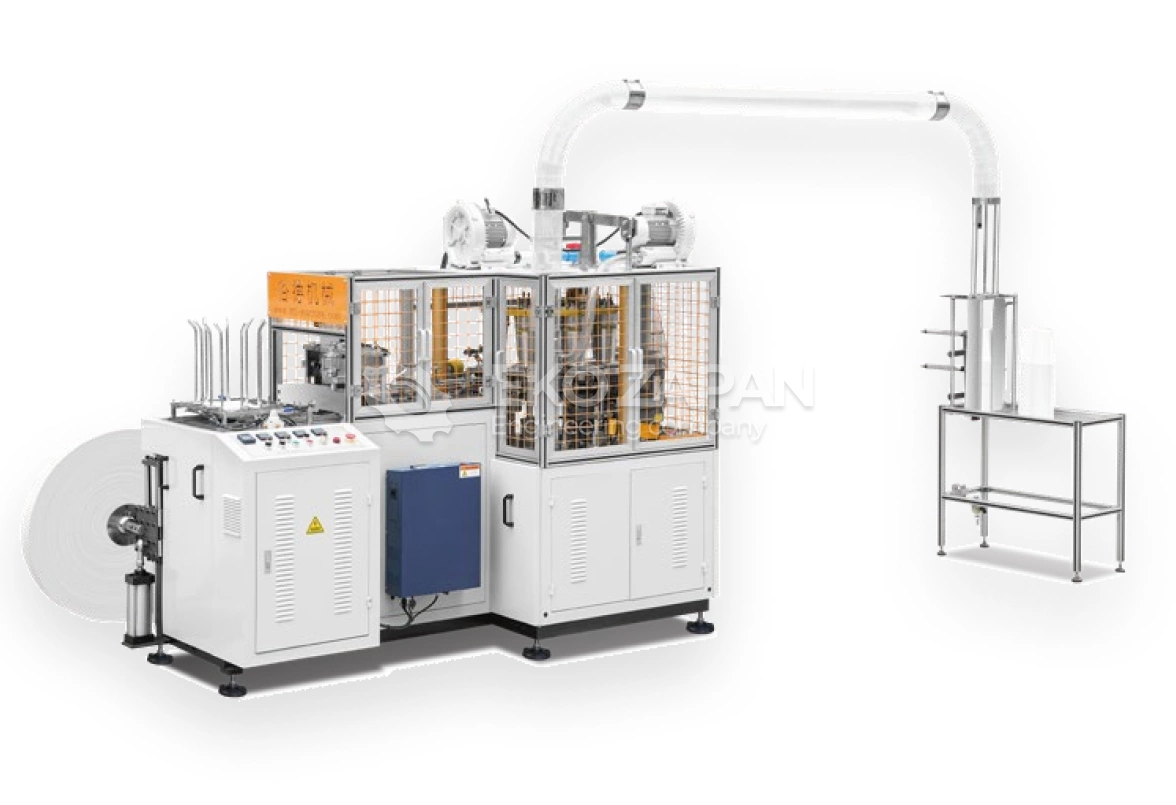

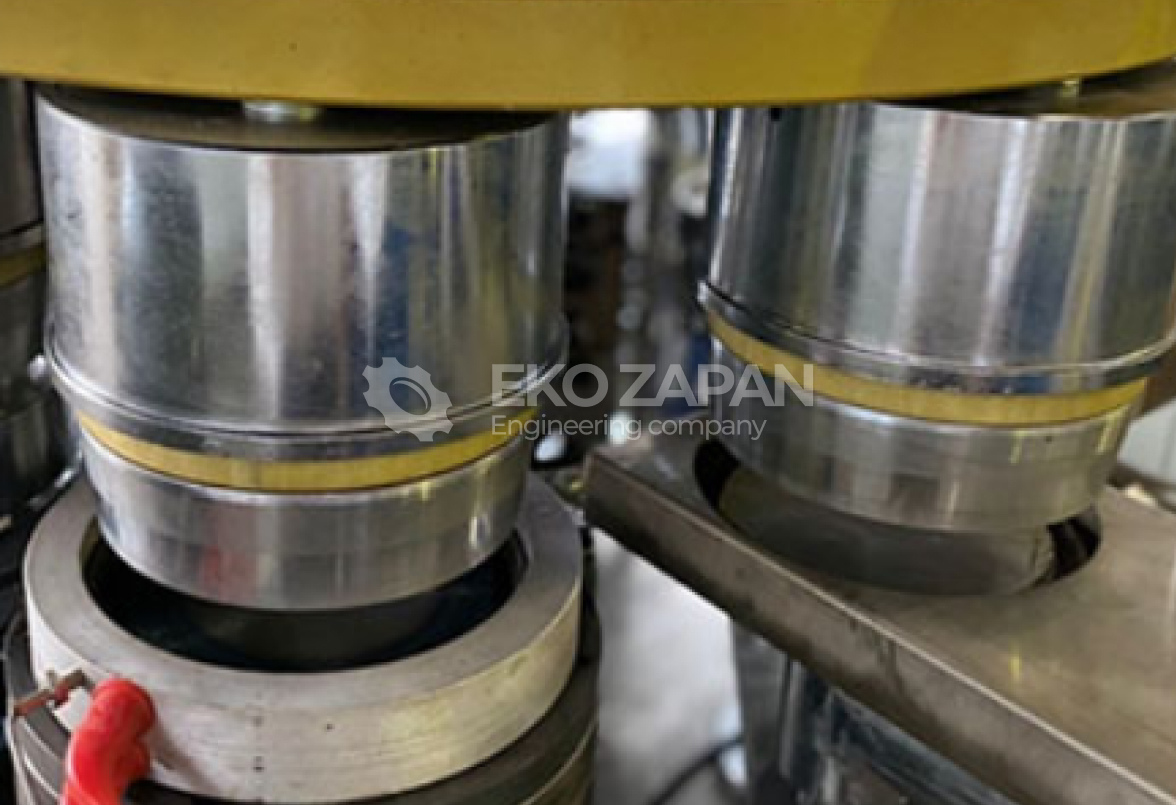

GOOD: MB-C35 Paper Cup Making Machine
- Размер стаканчика: 520 - 1040 мл
- Скорость: 60 - 70 шт/мин
- Общая мощность: 13 кВт
- Вес: 2800 кг
The machine provides effective sealing of the bottom and sealing of the sides of paper cups, guaranteeing high quality and reliability of production.
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 50 200
$
Article: 69
Specifications
Description
| Model Name | MB-C60 |
| Paper cup size | 520 - 1040 ml |
| Speed | 60 - 70 pcs/min |
| Diameter of the top of the paper cup | 100 - 145 mm |
| Diameter of the bottom of the paper cup | 90 - 115 mm |
| Height of the paper cup | 50 - 115 mm |
| Raw material | paper with a density of 180 - 350 g/m2 |
| Total capacity | 13 kW |
| Electricity | 380 V, 3 phases |
| Air consumption | 0.2 cubic meters/min |
| Weight | 2800 kg |
4.9
13
Specification:
- Sealing the bottom of the paper cup with Leister CERAMIC hot air provided by the system from the BANCO BRAND.
- It is easy to create cups of different sizes by changing shapes.

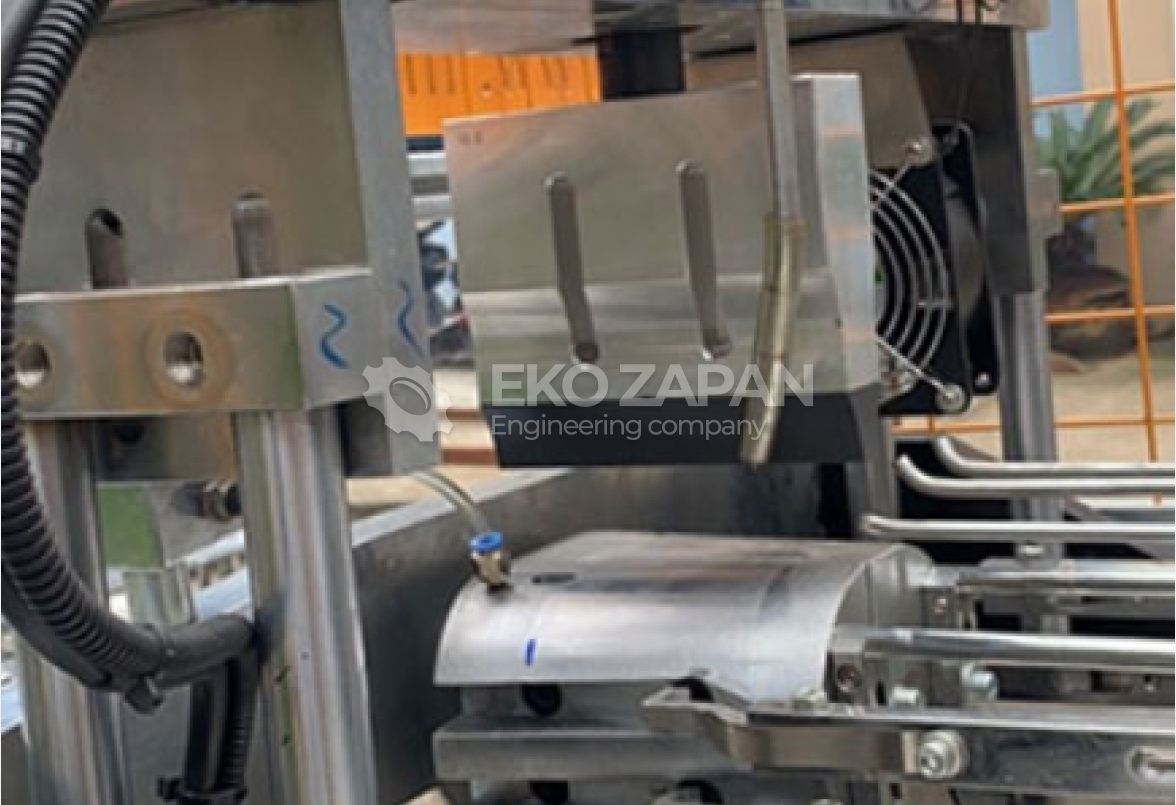

- The lateral sealing of the cup is performed using ultrasonic technology.
- Double polyethylene coated paper cups are designed for cold and hot drinks.
- The unique Korean-type single-shaft bottom rolling system ensures low leakage and high quality paper cups.
- The automatic lubrication system ensures automatic lubrication of all moving parts during the operation of the machine.
- Each cam is hardened to ensure its long-term performance.
- The machine is equipped with a double rotary plate.
- It is equipped with an automatic system for stacking and counting glasses.
- The bottom paper is equipped with a special pre-feeding system that minimizes waste during the lower paper feed.
- Designed with PLC touch screen control system.
