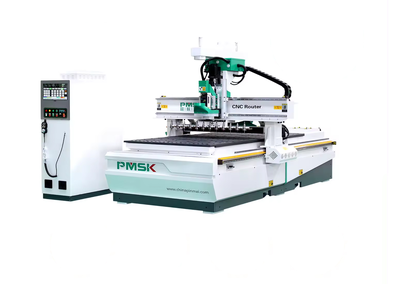

CNC milling machine Atc 2130 for the manufacture of wooden doors
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 28 700
$
Article: 1072
Specifications
| Parameter | Meaning |
| Number of axes | 3 |
| Number of spindles | ATC |
| CNC | Yes |
| Weight (kg) | 2800 |
| Guarantee | 1 year |
| Spindle speed range (rpm) | 1 - 24000 |
| Positioning accuracy (mm) | 0.01 |
| X-axis stroke (mm) | 1300 |
| Y-axis stroke (mm) | 2500 |
| Repeatability (X/Y/Z) (mm) | 0.01 |
| Spindle power (kW) | 9 |
| Brand name | pmsk |
| Voltage | 380V/50HZ 3P |
| Dimensions (L*W*H) | 3.6X2X2.3m |
| Power (kW) | 24 |
| Warranty for the main components | 2 years |
| The main components | Bearing, Motor, Pump, Gear, PLC, Motor, Gearbox |
| The management system | To order |
| Application | Furniture industry |
| Broadcast | XY-axis: rack and pinion |
| Working area | 1300x2500mm |
| Drive system | Servomotors |
| Spindle power | 9 kW, air-cooled |
| Table structure | Double-layer vacuum table |
| The guide rail | SQUARE |
