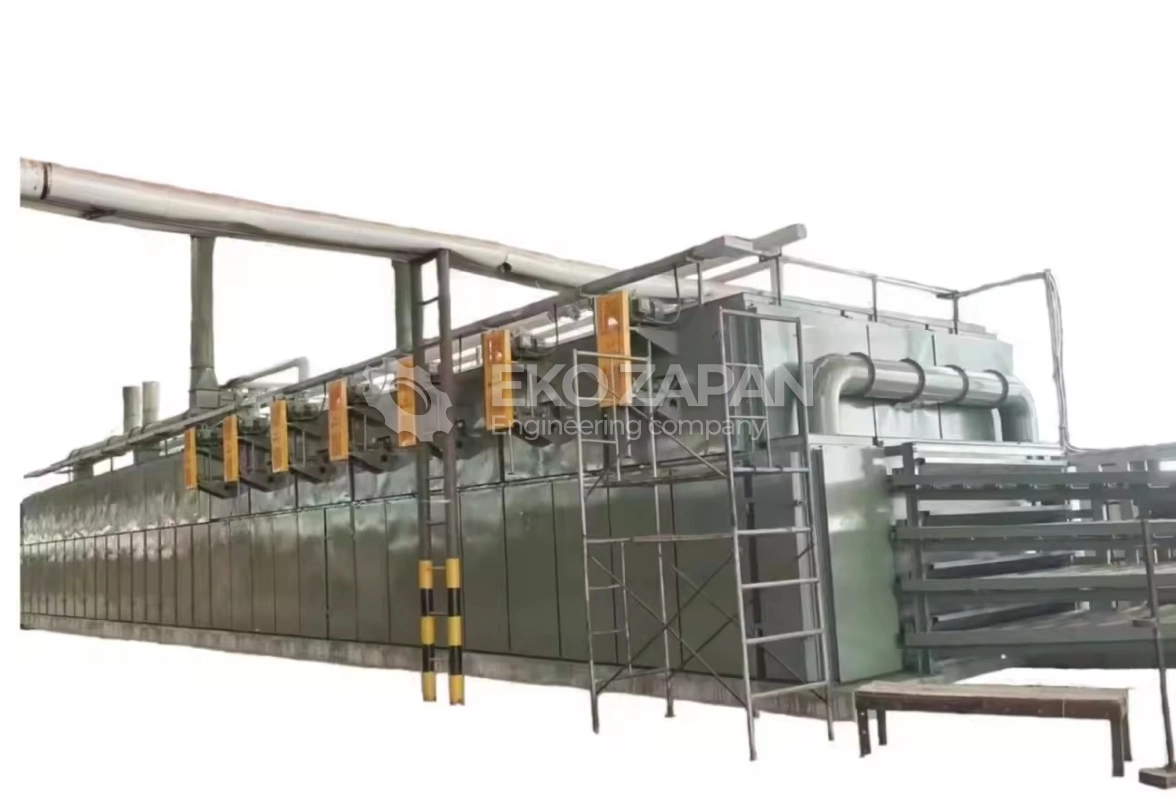

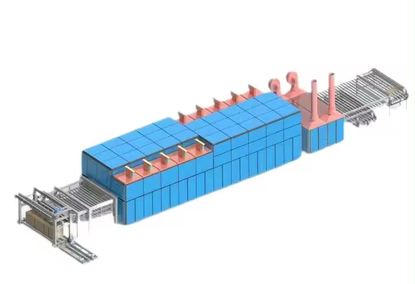

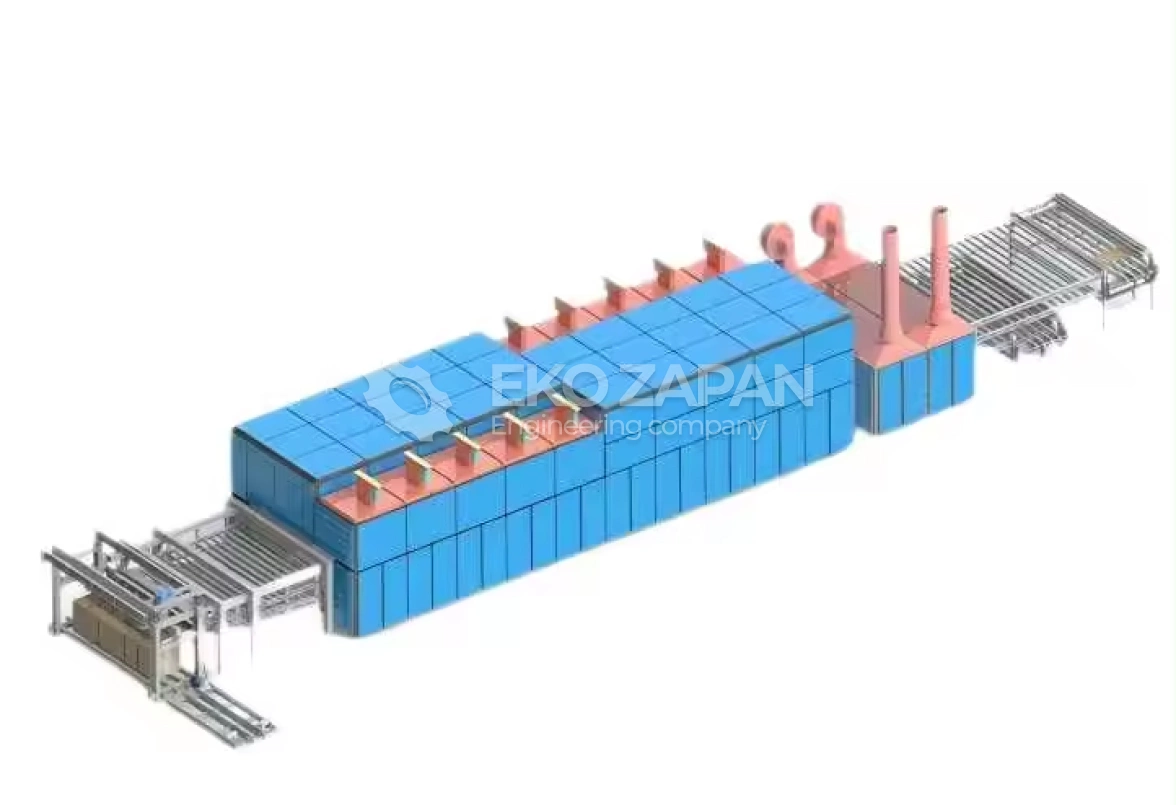

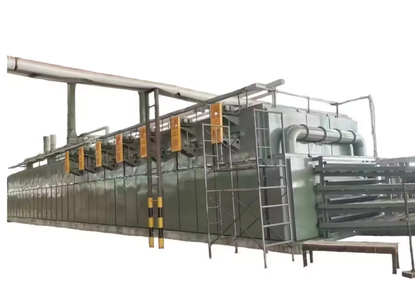

Mesh Conveyor and Roller type Veneer Dryer
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 268 900
$
Article: 1037
Specifications
| Parameter | Description |
| Weight (KG) | 75,000 kg |
| Guarantee | 1 year |
| Using | Plywood production |
| Voltage | to order |
| Dimensions (L*W*H) | 37500*5150*4150mm |
| Power (kW) | 135.5 |
| The main components | Bearing, Motor, Gear |
| Working width | 2800mm (Rollers), 2650mm (Mesh Tapes) |
| Number of working layers | 3 |
| Transfer rate | 1.5-15m/min (Rollers), 3-30m/min (Mesh tapes) |
| Length of the heating section | 20000mm |
| Length of the cooling section | 2000mm |
| Drying performance | 4m3/h |
| Compressed air pressure | 0.8Mpa |
| Compressed air consumption | 1m3/min |
| Steam consumption | 2.6T/h |
| For ventilation | 11*10=110kW |
