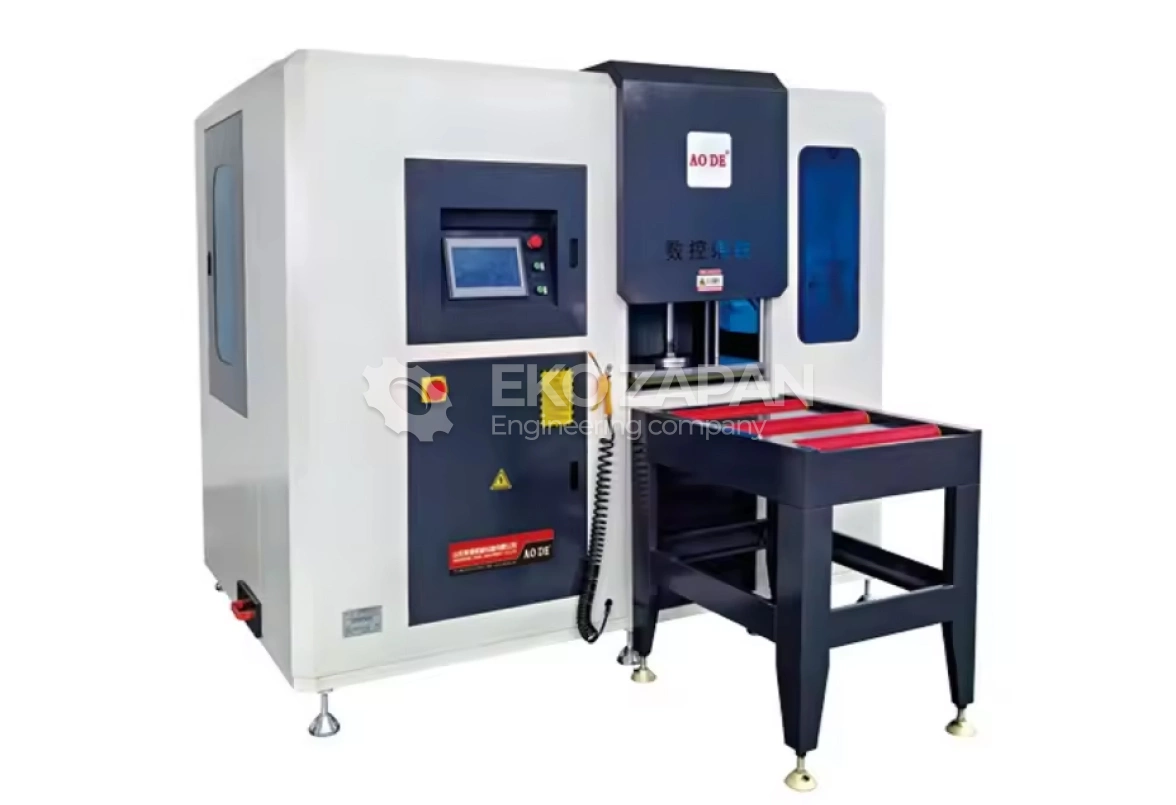

CNC milling machine for aluminum profiles
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 8 800
$
Article: 1042
Specifications
| Parameter | Description |
| X-axis movement (mm) | 3000 |
| Y-axis movement (mm) | 500 |
| Movement along the Z axis (mm) | 350 |
| Spindle rotation speed range (rpm) | 0 - 18000 |
| Number of axes | 3 |
| Spindle cone | BT40-120 |
| Positioning accuracy (mm) | ±0.008 |
| Repeatability (X/Y/Z) (mm) | 0.002 |
| Weight (KG) | 1800 |
| Guarantee | 1 YEAR |
| Warranty on the main components | 1 Year |
| The main components | Bearing, Motor, Pump, Gearbox, PLC, Pressure Vessel, Engine, Gearbox |
| Number of spindles | Single |
| Brand name | AODE |
| Model Number | LXD5-4-CNC-300 |
| Table movement (mm) | 800/400 |
| Voltage | 380V |
| Dimensions (L*W*H) | 2300X1500X1900 |
| CNC control system | GSK |
| Spindle motor power (kW) | 11/15 |
| Maximum table load (kg) | 1800 kg |
| Guarantee | 1 Year |
