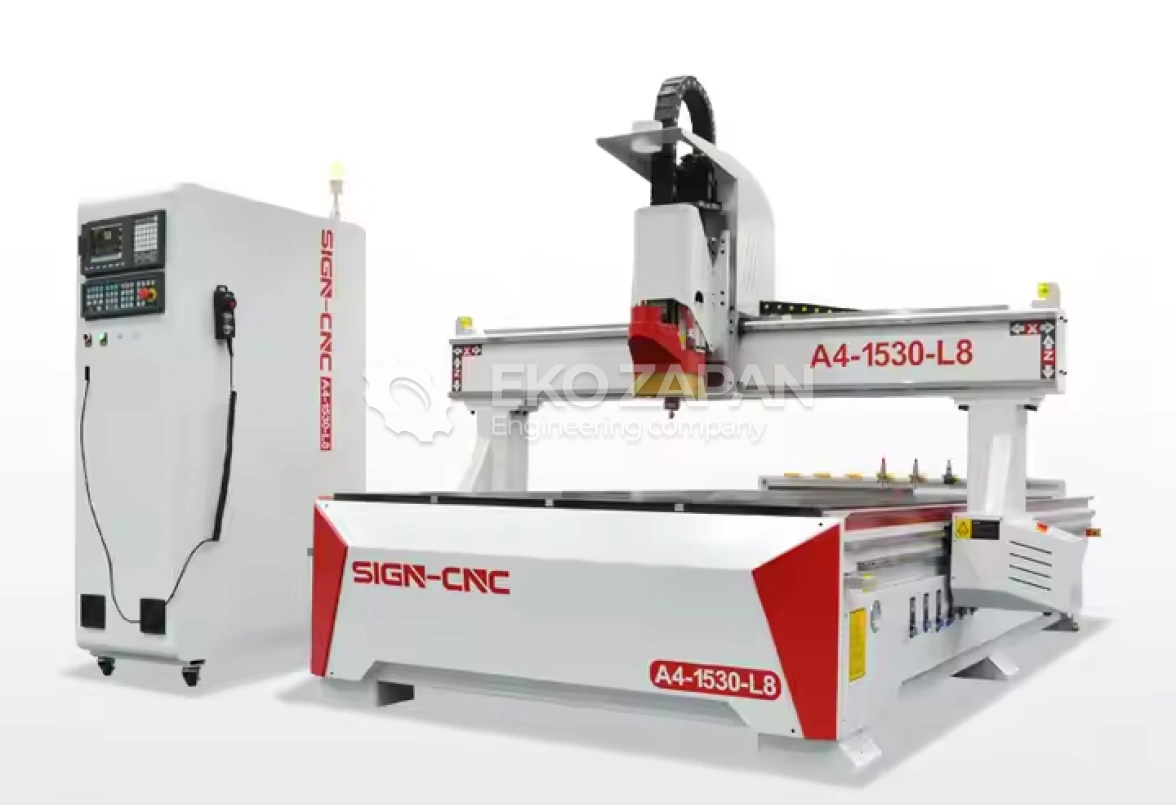

Automatic CNC Woodworking Machine for Wood Carving and Milling
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 27 100
$
Article: 1041
Specifications
| Parameter | Description |
| Desktop size (mm) | 1300×2500 |
| Type of machine | CNC Machine |
| Number of axes | 3 |
| Number of spindles | Single |
| Weight (KG) | 1300 |
| Guarantee | 1 year |
| Spindle rotation speed range (rpm) | 0 - 24000 rpm |
| Positioning accuracy (mm) | 0.01 mm |
| Displacement (X-axis) (mm) | 1300 mm |
| Displacement (Y axis) (mm) | 2500 mm |
| Repeatability (X/Y/Z) (mm) | 0.01 mm |
| Spindle motor power (kW) | 9 |
| Brand name | SIGN-CNC |
| Voltage | 380V 50Hz/ 220V 50Hz |
| Dimensions (L*W*H) | 3150*2000*1700mm |
| Power (kW) | 3.7 |
| Warranty for the main components | 1 year |
| The main components | Bearing, Motor, Pump, Gearbox, Spindle |
| Function | Engraving on wood, acrylic, plywood, MDF |
| Working area | 1300x2500x300mm |
| The spindle | 9KW of air cooling |
| Motor and driver | Servo motor and AC driver |
| Table surface | Table with vacuum retention |
| The inverter | Folinn 11kw Inverter |
| The guide rail | 25mm Square rail guide |
| The management system | Syntec 60WE bus control system |
