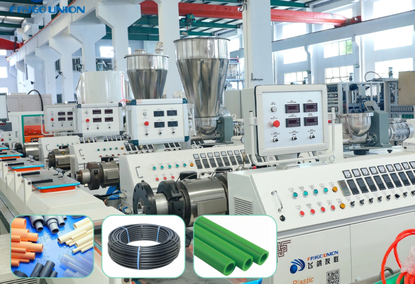

Conical twin screw extruder for the production of PVC pipes, profiles and sheets

Conical twin screw extruder for the production of PVC pipes, profiles and sheets

Conical twin screw extruder for the production of PVC pipes, profiles and sheets

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 14 300 $

Article: 2673

Specifications

Field	Meaning
Model Number	SJSZ-51/55/65/80/92 GGPED
Assembly design	Separate extruder
Screw	Twin-screw
Clutch system	Full engagement
Automation	Automatic
Computerized	Computerized
Packaging for transportation	Wooden packaging
Specification	6 1.6 2.5m
Brand name	Faygo Union
Country of origin	China, Jiangsu Province
HS Code	8477201000
Production capacity	20 pieces per year

Packaging and Delivery

Field	Meaning
Package size	320.00cm * 220.00cm * 220.00cm
Gross weight of the package	400 kg

Product Description

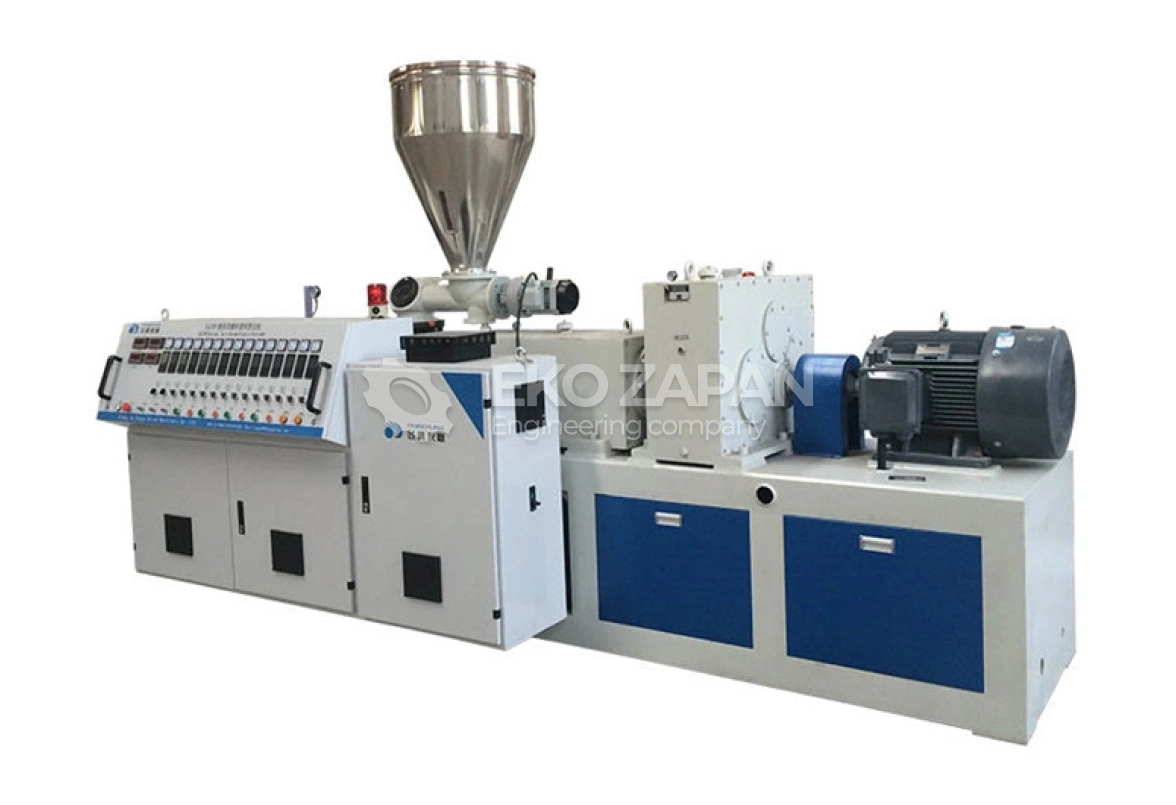

The conical twin screw extruder (SJSZ series) consists of a screw barrel, a gear transmission system, a metered feed system, vacuum degassing, heating, cooling and electronic control components. The main application is plasticization, extrusion and molding of PVC pipes, plates, sheets, films, profiles and granules, etc.

Advantages

Low degree of shear, difficult decomposition, uniform plasticization and agglomeration.
Reliable quality, wide range of applications and long service life.
Automatic temperature control, vacuum degassing, oil cooling of augers.
Stepless speed control, as well as forced feeding and self-cleaning mechanism.

Product Parameters

Parameter	SJSZ45/95	SJSZ51/05	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter (mm)	45/95	50/105	65/120 65/132	80/156	92/188
Screw rotation speed (rpm)	1-38	1-40	1-34.7	1-36.9	1-38
Effective screw length (mm)	989	1050	1440	1800	2500
Main motor (kW)	15	27	37	55	110
Barrel heating capacity (kW)	11,5	18	24	36	68
Capacity (kg/h)	90	150	250	450	600
Net weight (kg)	2500	3500	4000	5000	8000

Characteristics of a conical twin screw extruder

Suitable for extrusion of all kinds of PVC powders.

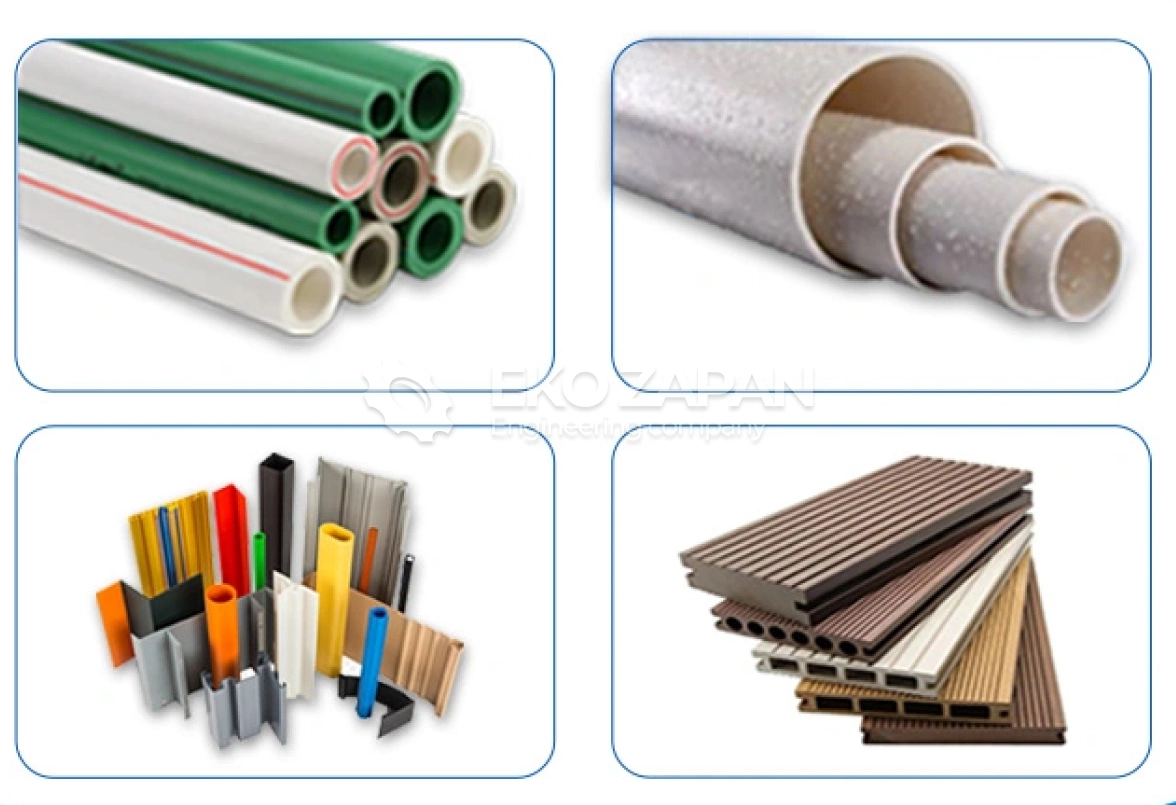

Equipped with various molds and auxiliary devices, it can produce various plastic pipes, profiles, sheets, boards, granules, etc.
The replacement of a special barrel also allows the use of PP and PE materials for production.
Computer or traditional control options.
Selecting the right screw according to the customer's requirements to achieve the best quality.
World-class advanced technology.
Stable extrusion pressure with high performance, low cost and simple production process.
