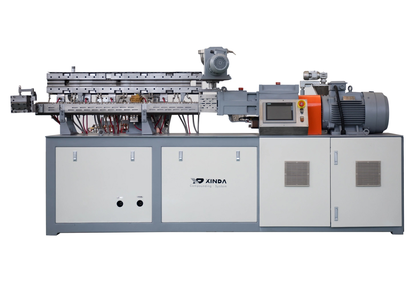

Plastic twin screw extruder-compounder, granulator for masterbatch granules PP, PE, PVC

Plastic twin screw extruder-compounder, granulator for masterbatch granules PP, PE, PVC

Plastic twin screw extruder-compounder, granulator for masterbatch granules PP, PE, PVC

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 41 800 $

Article: 2672

Specifications

Field	Meaning
Model Number	PSHJ & SHJ
Assembly design	Separate extruder
Screw	Twin-screw
Clutch system	Full engagement
Screw channel structure	Deep screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Efficiency	800-1500 kg/h
Application	All types of polymer mixtures
Electric brands	Siemens
Management	PLC + Touch Screen
Extruder weight	1000 kg
Packaging for transportation	Pallet and wooden box
Brand name	XINDA
Country of origin	China
HS Code	84772010
Production capacity	200 sets per year

Packaging and Delivery

Field	Meaning
Package size	1000,00 cm * 1000,00 cm * 1000,00 cm
Gross weight of the package	1000 kg

Product Description

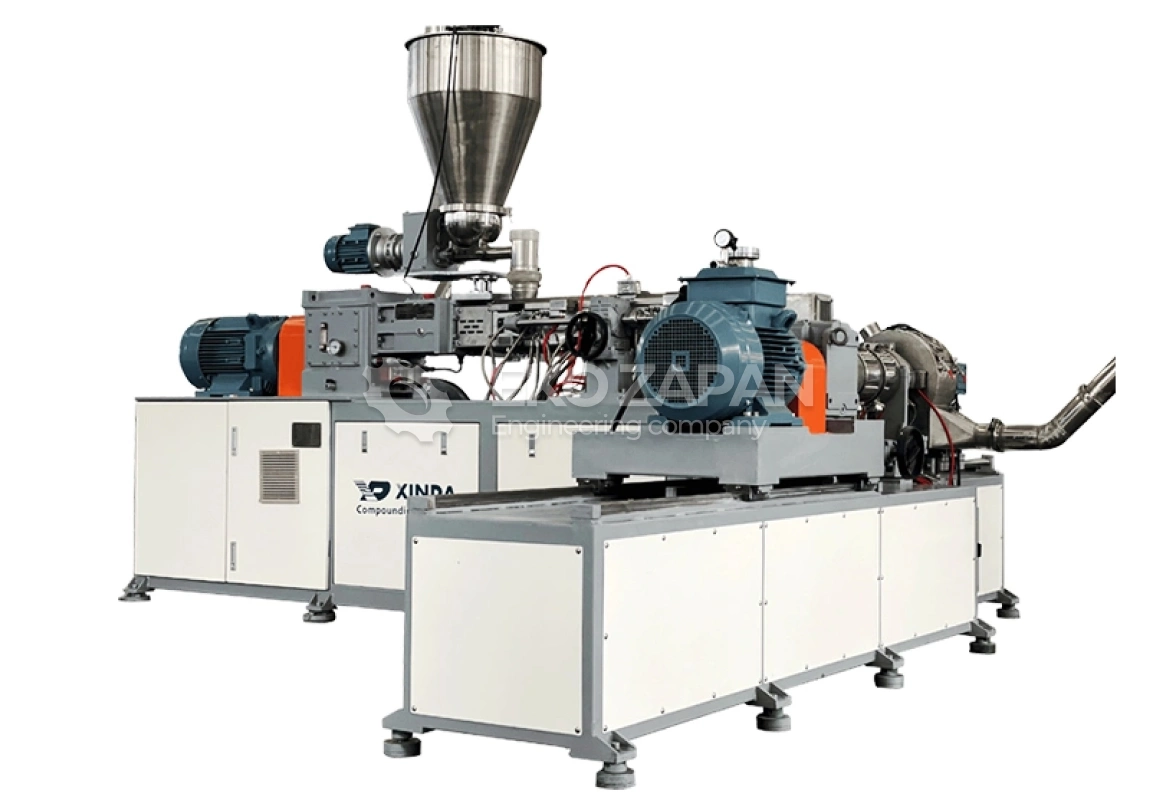

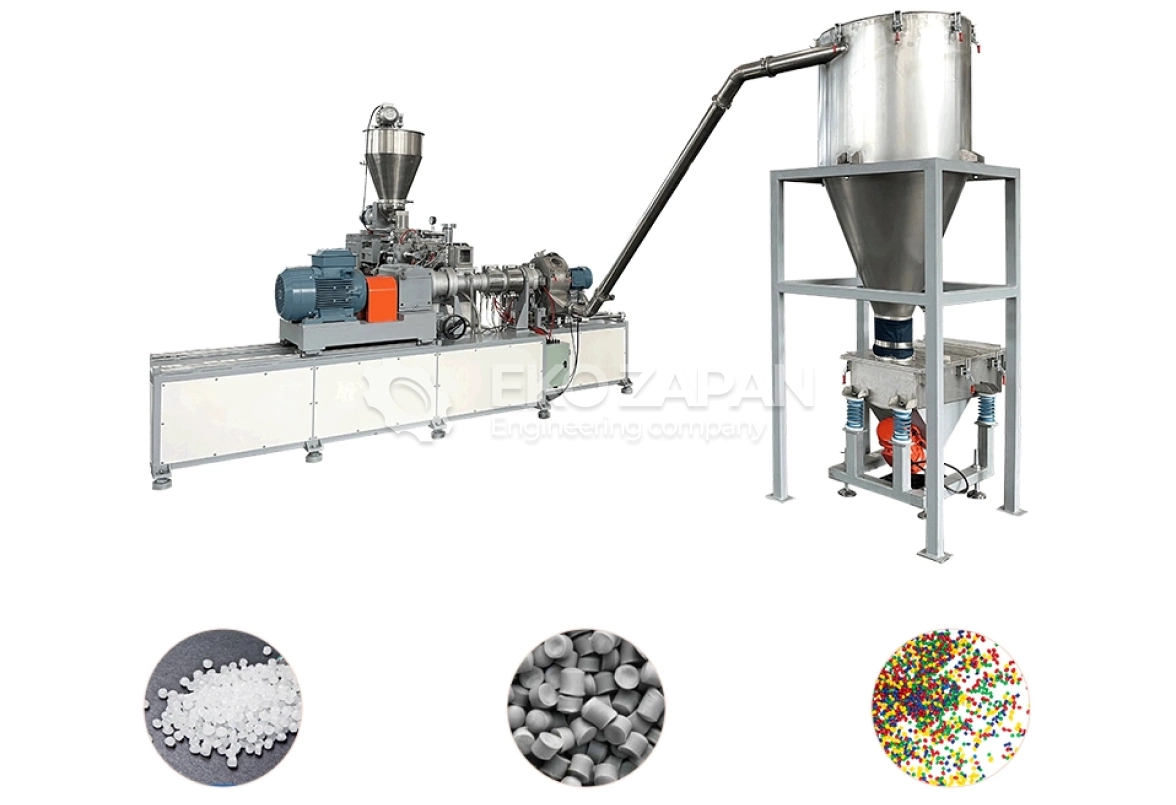

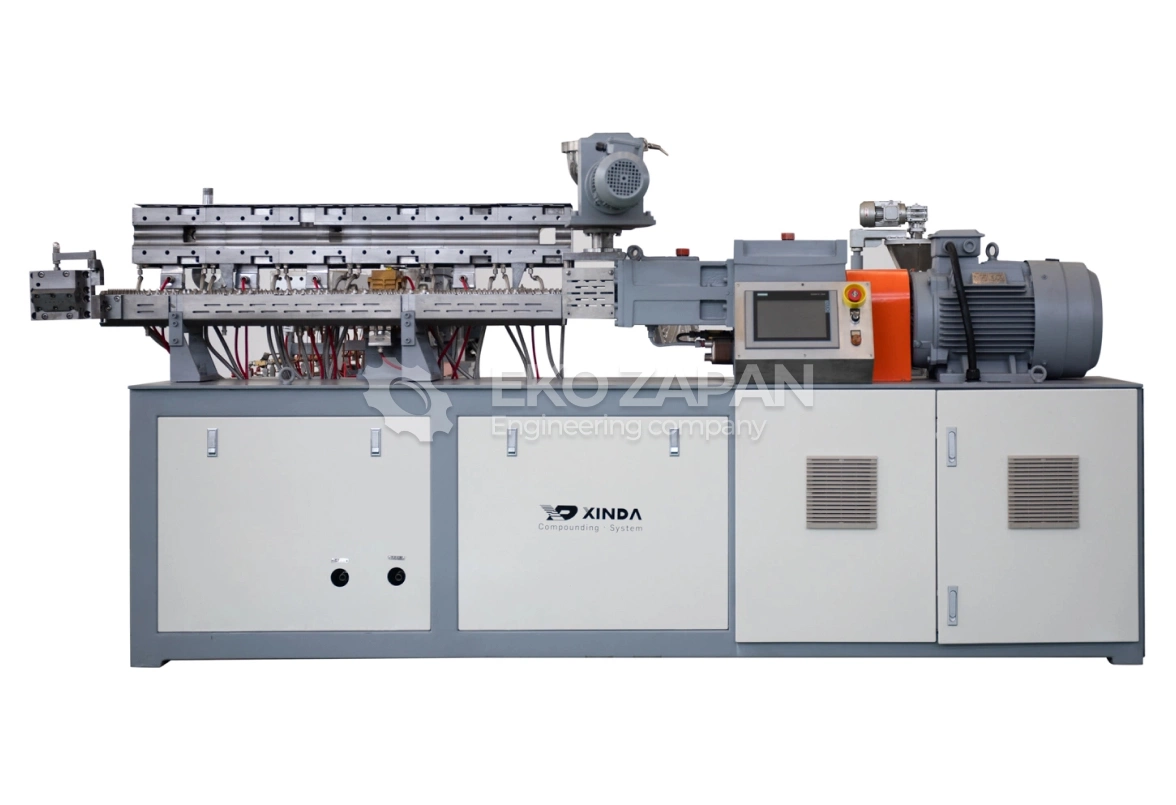

Xinda Twin Screw extruder for masterbatch

The barrel can be opened in a few minutes, making product change, maintenance and research quick and easy. The screws and barrels are designed according to the modular principle. Screw configuration, barrel adjustment, feed and ventilation, sieve change, granulation method and process requirements take into account the versatility of the machine in other common applications.

We provide our users with stable high performance and product quality with maximum economic efficiency thanks to XINDA technology. The twin-screw XINDA(P)SHJ series is ideal for precision compounding of polyolefins, engineering plastics and other continuous processes.

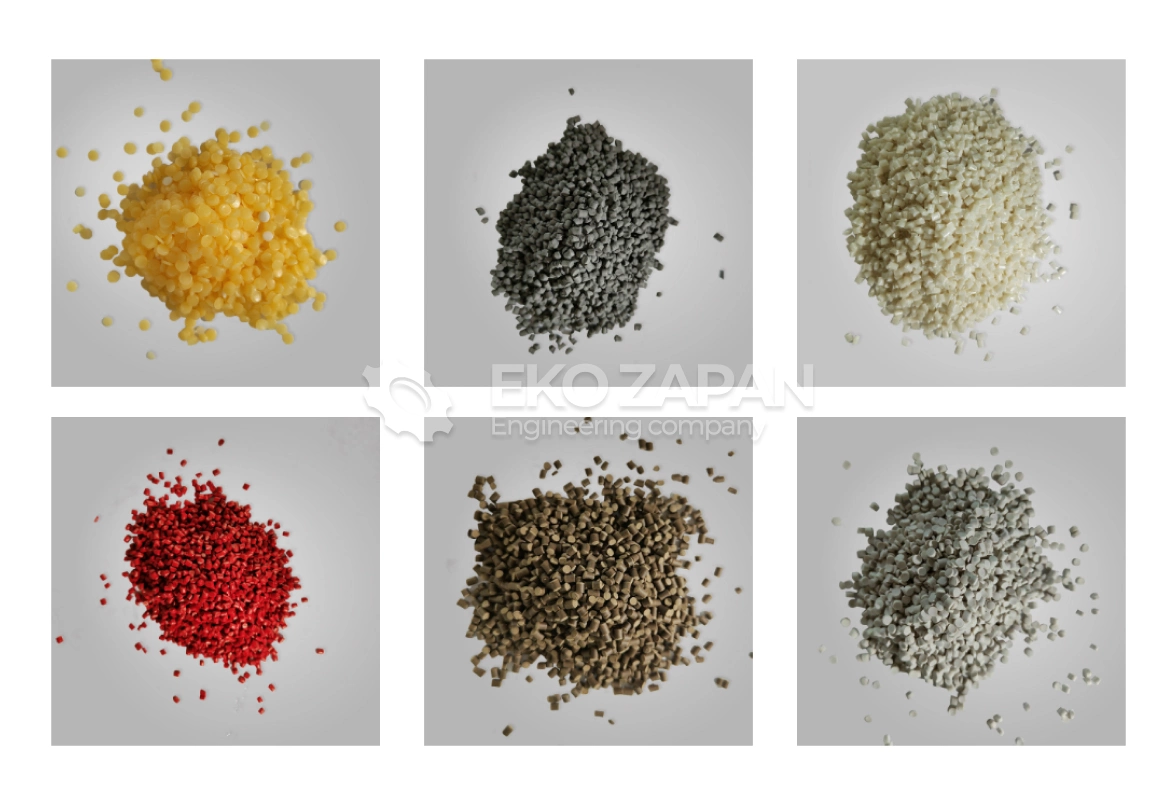

Color masterbatch: PE, PP, ABS, AS, PA, EVA, PET + pigment
Filled masterbatch: PE, PP, EVA, etc. + CaCO3, talc, titanium dioxide, etc.
Reinforcement: PP, PBT, ABS, AS, PA, PC, POM, PPS, PET + long/short fiberglass
Functional masterbatch: PE, PP, PS, etc. + starch, decomposition agent
Connections for wires and cables: HFFR; XLPE; Semiconductor; Sioplas, etc.
Powder coating: Hybrid; Polyester; Polyurethane; Epoxy resin, etc.

Model range

Model	PSHJ-20	PSHJ-35	PSHJ-50	PSHJ-65	PSHJ-75	PSHJ-127
Screw diameter (mm)	21,7	35,6	50,5	62,4	71	126
Central distance	18	30	42	52	60	102
The ratio of length to diameter	28-52	28-52	28-52	28-52	28-52	28-52
Main motor power (kW)	4-5,5	22-45	75-110	110-185	160-280	90-160
Maximum screw speed (rpm)	600	600	600	600	600	600
Output torque per shaft (nm)	32-43	175-358	597-875	875-1472	1273-2228	850-1528
Reference capacity (kg/h)	44336	20-80	80-200	150-350	300-600	800-1500
