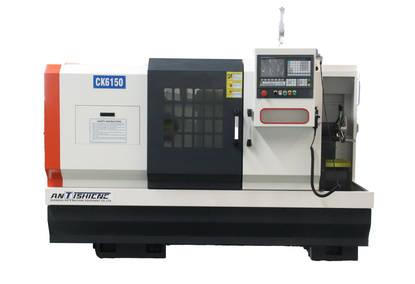

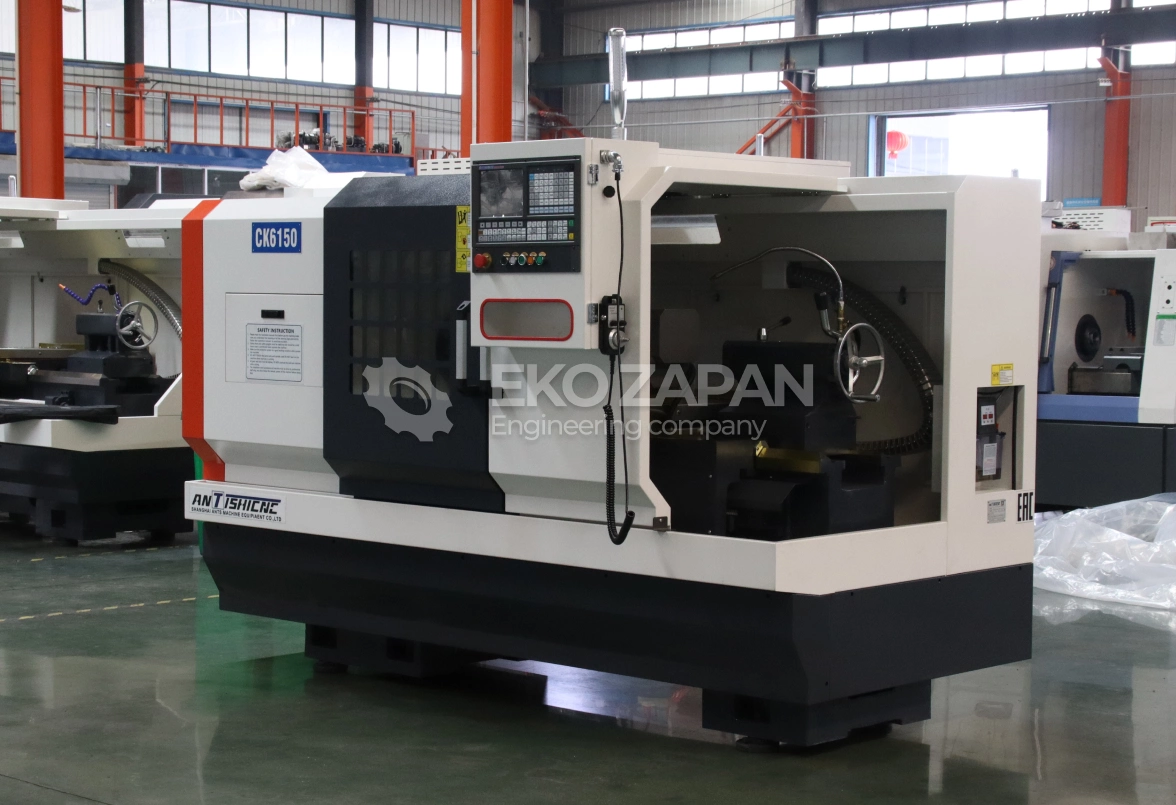

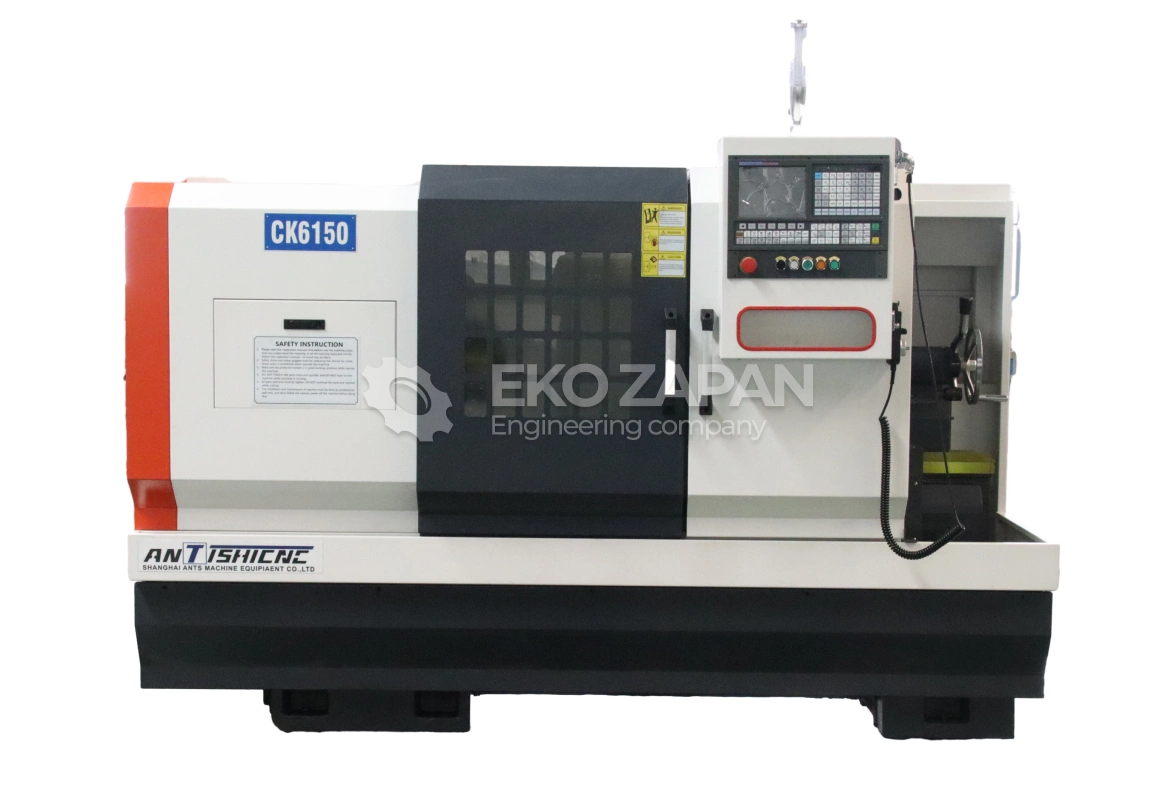

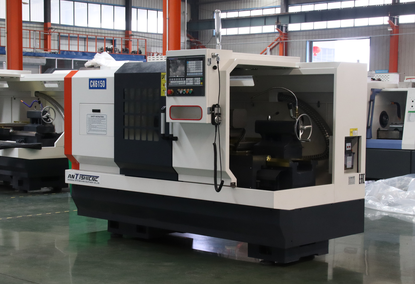

CK6140 Series CNC Flat Bed Lathe
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 13 100
$
Article: 389
Specifications
| Technical specifications | Measurement | CK6140 | CK6150 | CK6160 |
| Maximum turning diameter above the bed | mm | 400 | 500 | 600 |
| Maximum turning diameter above the slider | mm | 240 | 250 | 395 |
| Maximum turning diameter (disc) | mm | 400 | 500 | 600 |
| Max. billet length | mm | 550/750 | 1000/1500/2000 | 1000/1500/2000 |
| Maximum turning length | mm | 420/620 | 850/1350/1850 | 850/1350/1850 |
| The spindle | A2-6/A2-8 | A2-8/A2-11 | A2-8/A2-11 | |
| spindle hole | mm | 48/82 | 82/130 | 82/130 |
| Taper of the spindle | mm | Collet/m90 | m90/M140 | m90/M140 |
| Spindle rotation speed | mm | 150-2500/150-1800 | 150-1800/150-800 | 150-1800/150-800 |
| Spindle motor power | sq | 5.5/7.5 | 7.5/11 | 7.5/11 |
| The stroke of the Z axis | mm | 550/750 | 1000/1500/2000 | 1000/1500/2000 |
| Tool Shank Size | mm | 20×20 | 25×25 | 25×25 |
| Pinole diameter of the tail section | mm | 60 | 75 | 75 |
| Pinole stroke of the tail section | mm | 100 | 150 | 150 |
| Total rated power | sq | 8/10 | 11/12/13 | 11/12/13 |
| Total rated current | A | 17/21 | 23/26/29 | 23/26/29 |
| Net weight | kg | 1900/2200 | 2700/3100/3500 | 2800/3200/3400 |
| Machine dimensions | mm | 2000/2200×1600×1800 | 2650/3250/3750×1700×1820 | 2650/3250/3750×1700×1820 |
