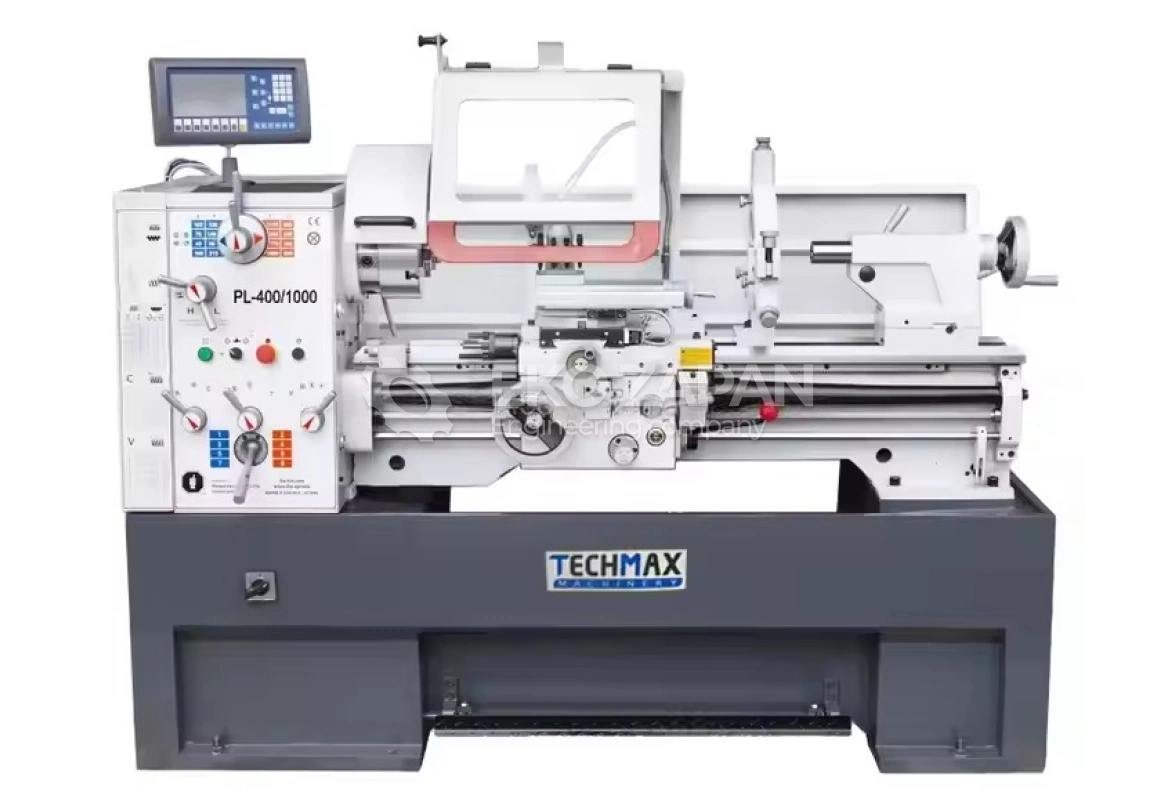

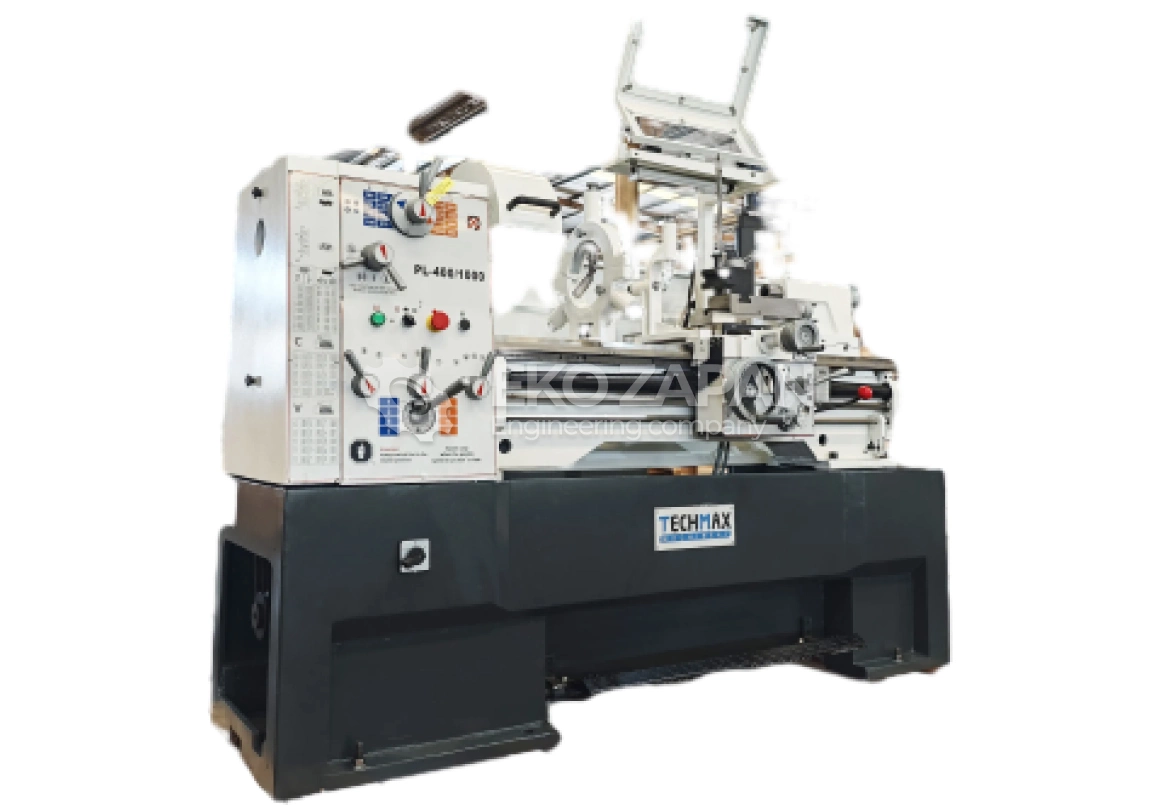

Manual Metal Cutting Lathe
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 10 900
$
Article: 1172
Specifications
| Parameter | Description |
| Type | Horizontal |
| Weight (KG) | 1750 KG |
| Guarantee | 1 year |
| Applicable industries | Machine repair shops, Manufacturing plants, Foundries, Metalworking |
| Key components | Motor, PLC, Motor |
| Spindle speed range (rpm) | 45 - 1800 rpm |
| Bed width (mm) | 250 mm |
| Maximum processing length (mm) | 1450 mm |
| Spindle motor power (kW) | 3.3 |
| Voltage | At the request of the client |
| Dimensions (L*W*H) | 2560*900*1640 mm |
| The distance between the centers | 1000/1500 mm |
| Height of the center | 205 mm |
| Turning diameter above the bed | 410 mm |
| Shank Cone | MT4 |
| The diameter of the rotation through the groove | 580 mm |
| Feed in the longitudinal direction | 0.05-1.7 |
| Feed in the transverse direction | 0.025-0.85 |
| The stroke of the upper caliper | 140 mm |
| The stroke of the transverse caliper | 210 mm |
| The main engine | 3.3/2.2 |
