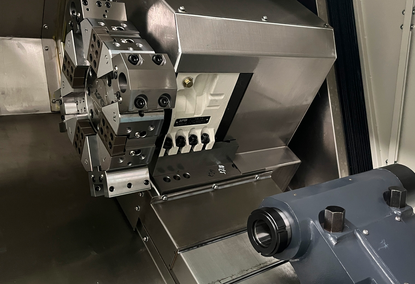

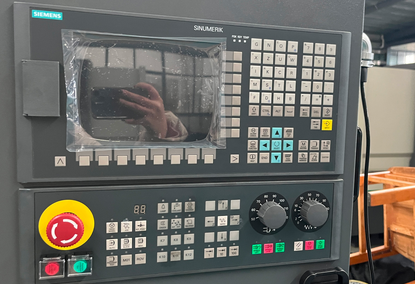

TCK36A Series Oblique Angle Lathes with CNC
- Макс. длина заготовки: 1500 мм
- Макс. диаметр обработки: 440 мм
- Скорость вращения шпинделя: 3500
- Вес: 5000 кг
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 10 900
$
Article: 388
Specifications
| Technical specifications | UNit | TCK36A | TCK46A | TCK50A |
| Max. diameter. turning over the bed | mm | 360 | 460 | 560 |
| Max. diameter. turning over the slider | mm | 140 | 260 | 300 |
| Max. billet length | mm | 300 | 350 | 300/500/800/1500 |
| Maximum bar capacity | mm | 38/44 | 44 | 55/75 |
| Max. processing diameter (plate) | mm | 360 | 440/360 | 440/360 |
| The brain of the spindle | GB59001 | A2-5 | A2-5 | A2-6/8 |
| spindle hole | ø /mm | 48/56 | 56 | 66/66/86 |
| Spindle rotation speed | r/min | 50-4000 | 50-3500 | 50-3000 |
| Total rated power | sq | 9 | 11 | 14/18/22 |
| Total rated current | A | 19 | 23 | 30 |
| Net weight | kg | 2500 | 3000 | 3100/3300/4000/5000 |
| Overall dimensions of the machine | mm | 2200×1636×1850 | 2500×1950×1950 | 2600/2700/3300/4000X2000X2000 |
