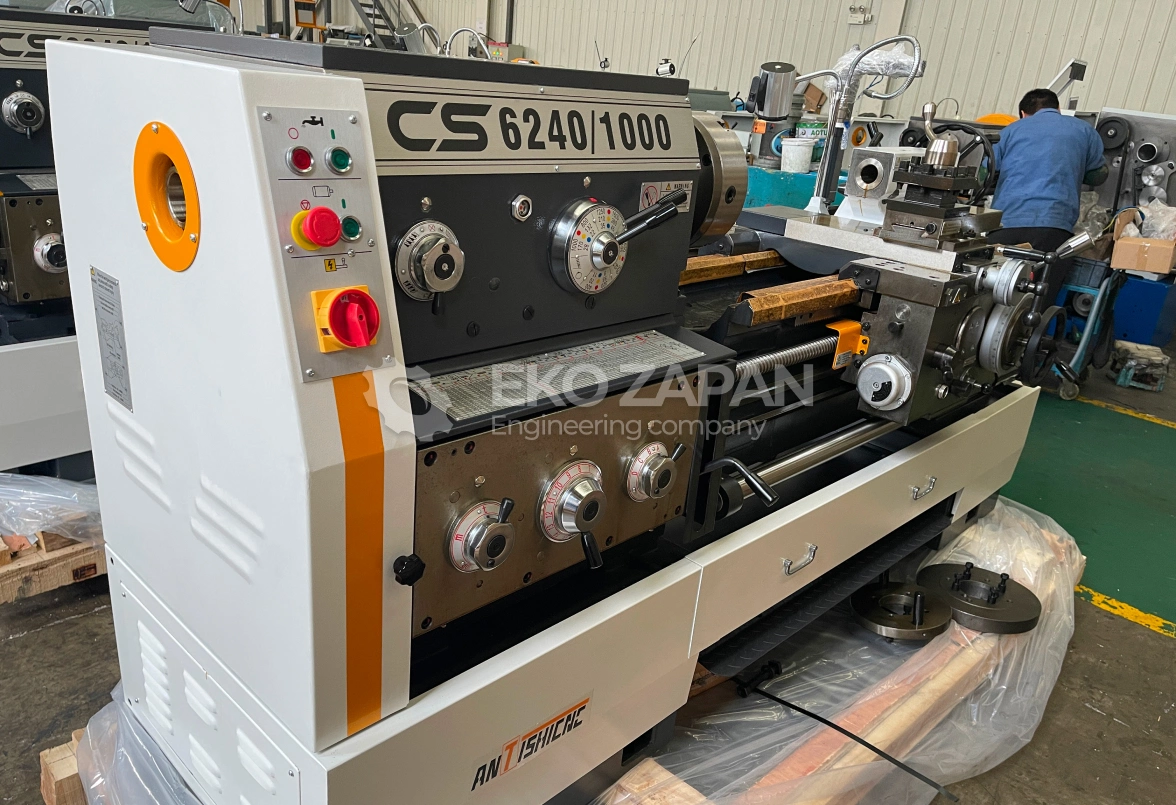

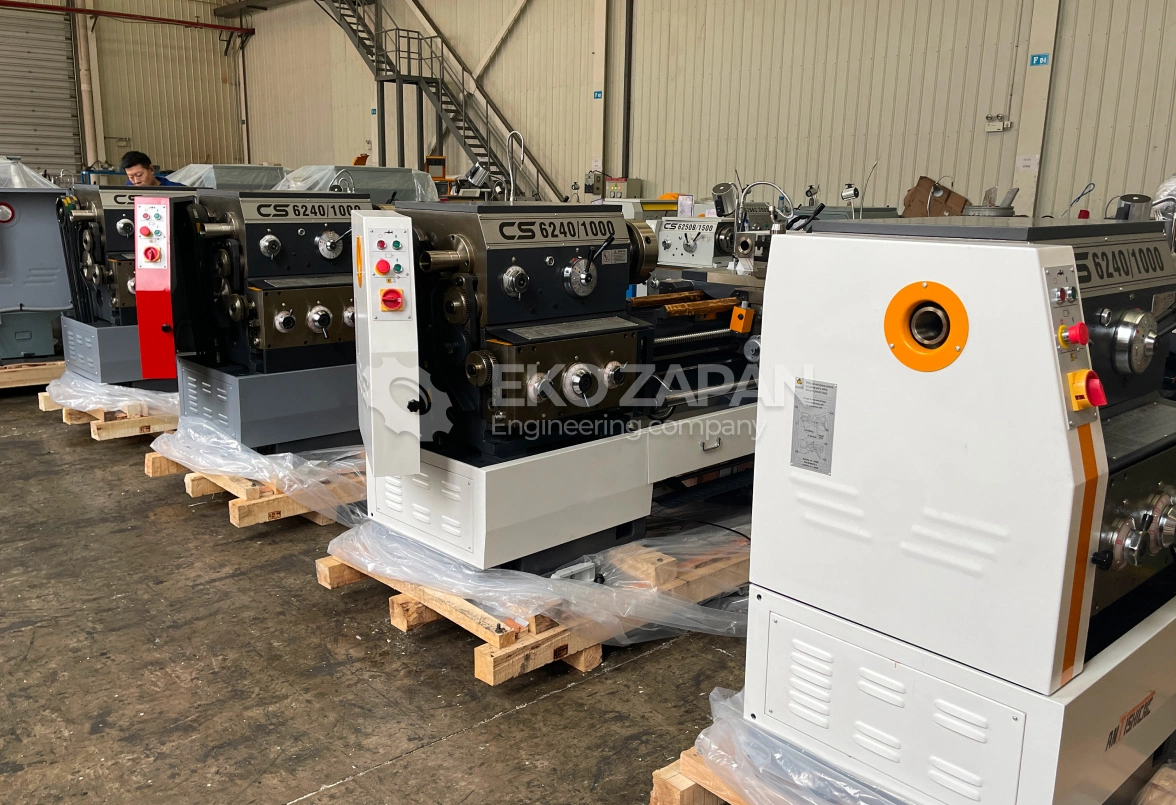

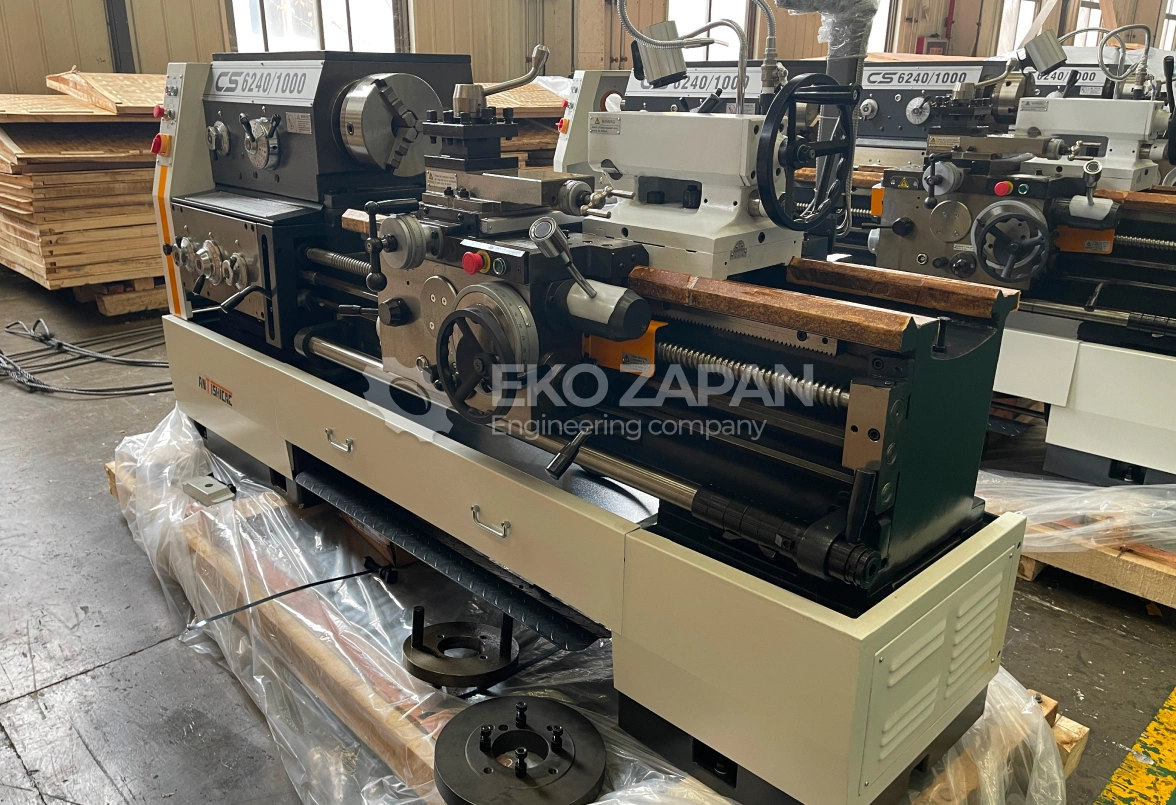

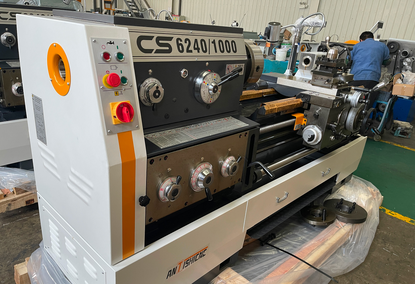

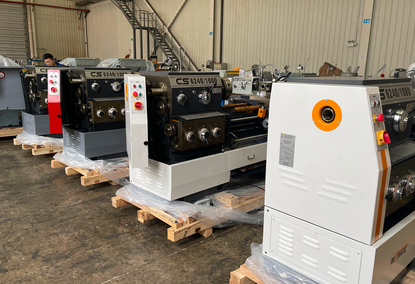

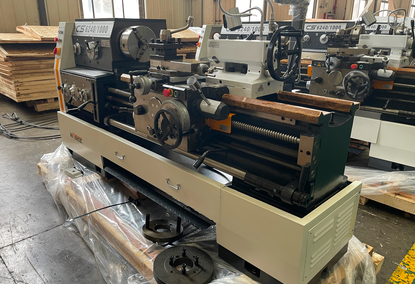

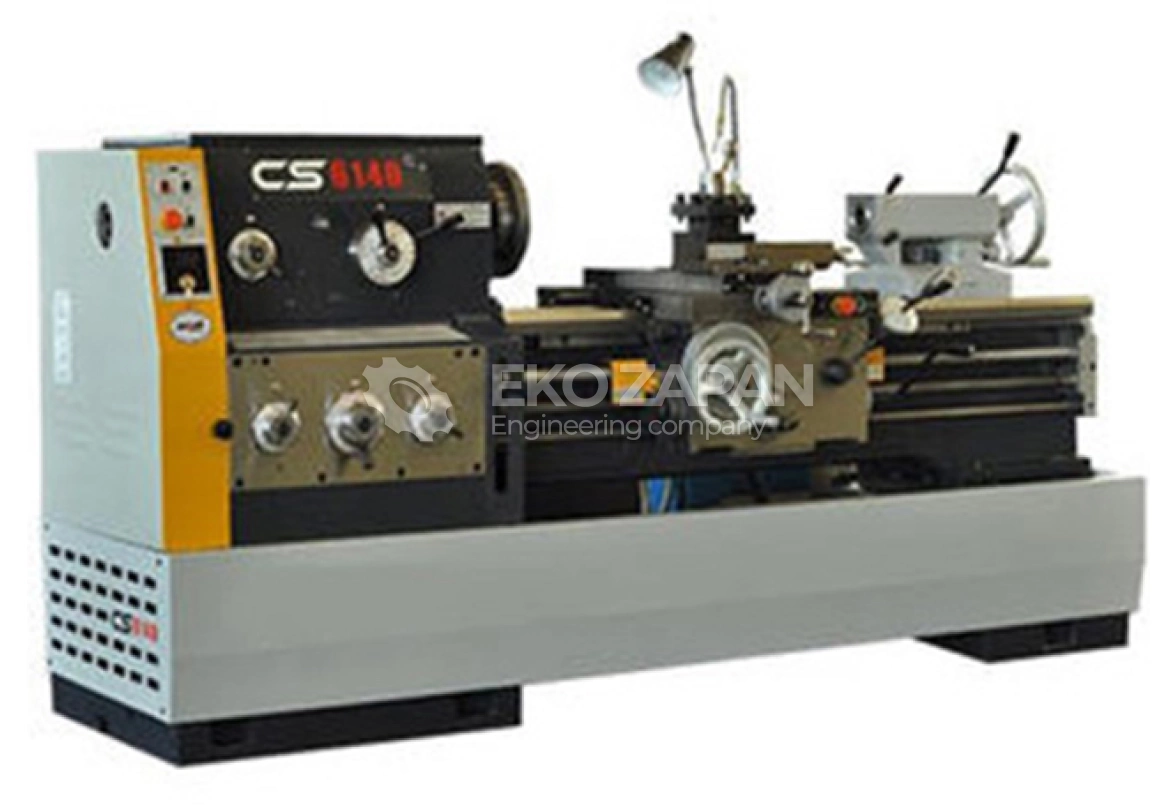

Horizontal lathes of the CS6240 series
- Макс. длина заготовки: 3000 мм
- Диаметральный шаг резьбы: 11
- Макс. ход составного упора: 320 мм
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 9 700
$
Article: 387
Specifications
| Article number | CS6240 | CS6140J | CS6266C |
| Max. swing over the bed | ø400 | ø400 | ø660 |
| Max. swing over the slider | ø220 | ø220 | ø420 |
| Max. billet length | 750/1000/1500/2000/3000 | 700/950/1450/1950/2950 | 750/1000/1500/2000/3000 |
| The spindle | ø52 | ø52 | ø105 |
| Spindle bore | 24 STEPS 9 - 1600r/min | 24 STEPS 9 - 1600r/min | 12 STEPS 36 - 1600 r/min |
| Spindle speeds | 25×25 | 25×25 | 25×25 |
| the fog section | 145 | 145 | 145 |
| Max. the stroke of the compound stop | 320 | 320 | 310 |
| Max. the stroke of the transverse caliper | 75/150 | 75/150 | 75/150 |
| Tailstock pinole diameter/ Max. pinole stroke | 5 | 5 | 5 |
| The diametrical pitch of the thread | 7,5 | 11 | 7,5 |
