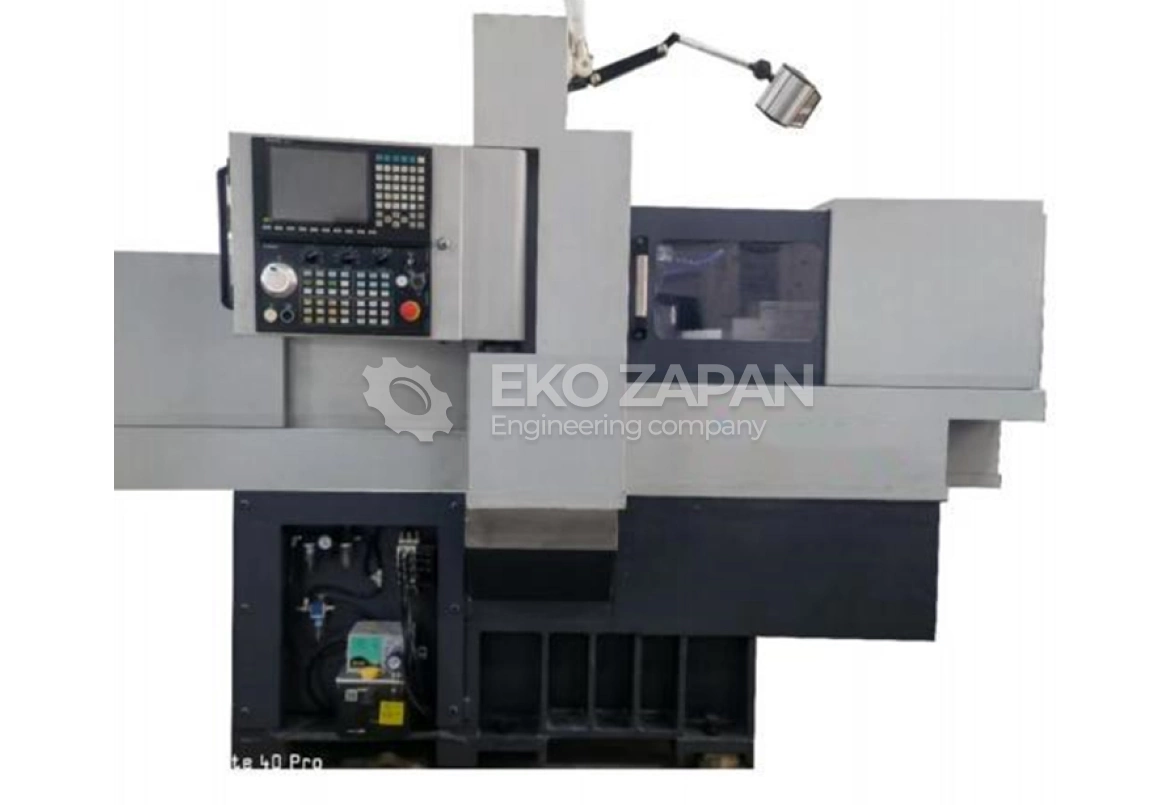

H266E Automatic CNC Lathe

Мощность шпинделя: 3,7 / 2,2 кВт
Размеры: 2600 × 1500 × 2000 мм
Вес: 3500 кг

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 10 900 $

Article: 384

Specifications

Description

Diameter of the main axis			27 mm
Maximum processing diameter			26 mm
The length of the feed at a time			105 mm
Maximum operating speed			8000 rpm

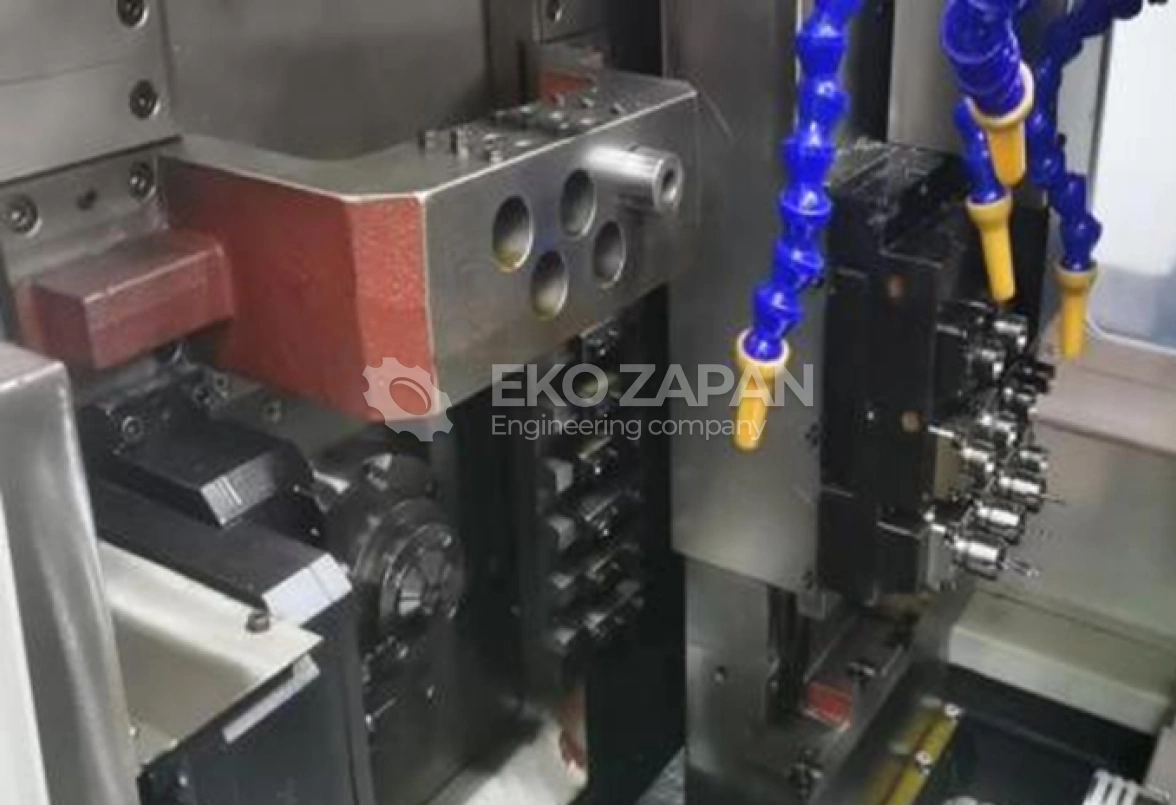

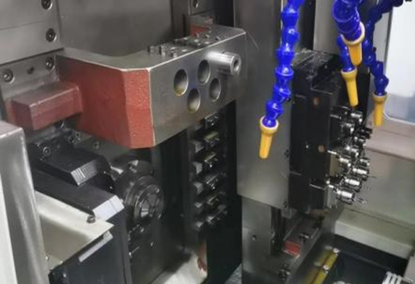

Turning tools	Number of tools		7 pcs.
	Technical characteristics of the tool		16x16 mm
Finish processing	Number of tools	Front Mounting Tool	5 pcs.
	Maximum drilling capacity	Fixed tool	10 mm
	Maximum throughput	Fixed tool	M8
Side Rotation Tool	Number of tools		4 pcs.
	Technical characteristics of the tool		ER16*4
	Maximum drilling capacity		10 mm
	Maximum throughput		M8
	Maximum milling performance		12 mm
	Max. diameter of the saw blade cutter		40 mm
	Max. speed		5000min-1
	power		1kW
Fast speed		Z1	24 m/min
		X1	30 m/min
		Y1	30 m/min
Maximum working revolutions of the spindle			10000 rpm (8000 rpm for working setting)
Spindle positioning accuracy			C-axis control (0.001°)

4.9 8

Description

Shanghai ANTISHI company specializes in the introduction of Swiss and Japanese technologies and independently develops Swiss-type CNC lathes and milling machines. We have more than ten years of experience in manufacturing cardiovascular machines in China.

In March 2007, he was certified according to the ISO9001:2000 standard, and in December of the same year he was granted a special technical patent (patent number: ZL200620155487.1:).
In 2008, our company and the Provincial Bureau of Quality and Technical Supervision jointly developed a verification standard for local industry (DB44/T 553.2-2008), which was officially promulgated by the Provincial Bureau of Quality and Technical Supervision in 2008 (entry number: 23547-2008)

Part 8 : User-provided support tools.
The following elements and control points must be prepared by the buyer in advance:
Working conditions of the machine
1. Three-phase AC power supply: 380V±10%; 50 Hz±1 Hz
2. Ambient temperature: 0～40Cº.
3. Relative humidity: ≤80%
4. Compressed air: 0.6—0.8 MPa.
