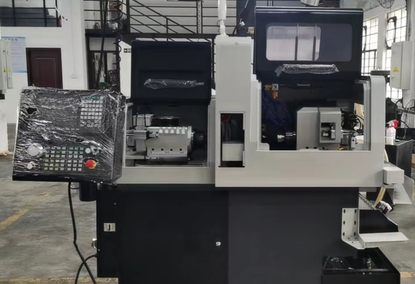

Automatic CNC Lathe G205E

Диаметр обработки: ø 20 мм
Скорости шпинделя: 8000 об/мин
Размеры: 2100 × 1100 × 1780мм
Вес: 2800 кг

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 10 800 $

Article: 382

Specifications

Description

Configuration of the main axis			The main and auxiliary shafts are electronically controlled and oil-cooled servo-motor spindles. The speed is 12000 rpm.
Diameter of the processed material			Φ 2 mm- 2.0 mm
The length of the feed at a time			140 mm
Setting the working speed of the spindle			8000 rpm
Turning tools	Number of tools		17 pcs .
	Technical characteristics of the tool		12 x 12 mm
Finish processing	Number of tools	Front Mounting Tool	4 pcs.
	drilling capacity	Fixed tool	Φ 8 mm
	Maximum cutting and threading performance	Fixed tool	M 6
Side Rotation Tool	Number of tools		4 pcs.
	Technical characteristics of the tool		ER162+ER112
	Drilling performance		φ8 mm
	Bandwidth		M6
	Milling performance		φ10 mm
	Max. diameter of the saw blade cutter		30 mm
	Max. speed		5000min-1
	power		0.75 kW
Fast speed		Z1	24 m/min
		X1	30 m/min
		Y1	30 m/min
Maximum working revolutions of the spindle			8000min-1
Spindle positioning accuracy			C-axis control (0.001°)

4.9 6

Description

According to the provided product images, after the analysis carried out by the Shanghai ANTISHI technical team, we recommend our Swiss type G205E CNC slitting machine. This CNC lathe can perform all processing procedures such as cutting, milling, drilling and grinding of the above products. If there are products with more variable process and process requirements, our company can provide customers with other types of machine tools to choose from according to customers' processing requirements.

Shanghai ANTISHI company specializes in the introduction of Swiss and Japanese technologies and independently develops Swiss-type CNC lathes and milling machines. We have more than ten years of experience in manufacturing cardiovascular machines in China.

In March 2007, he was certified according to the ISO9001:2000 standard, and in December of the same year he was granted a special technical patent (patent number: ZL200620155487.1:).
In 2008, our company and the Provincial Bureau of Quality and Technical Supervision jointly developed a verification standard for local industry (DB44/T 553.2-2008), which was officially promulgated by the Provincial Bureau of Quality and Technical Supervision in 2008 (entry number: 23547-2008)

The following elements and control points must be prepared by the buyer in advance:
1. Three-phase AC power supply: 380V±10%; 50 Hz±1 Hz
2. Ambient temperature: 0～40Cº.
3. Relative humidity: ≤80%
4. Compressed air: 0.6—0.8 MPa.
