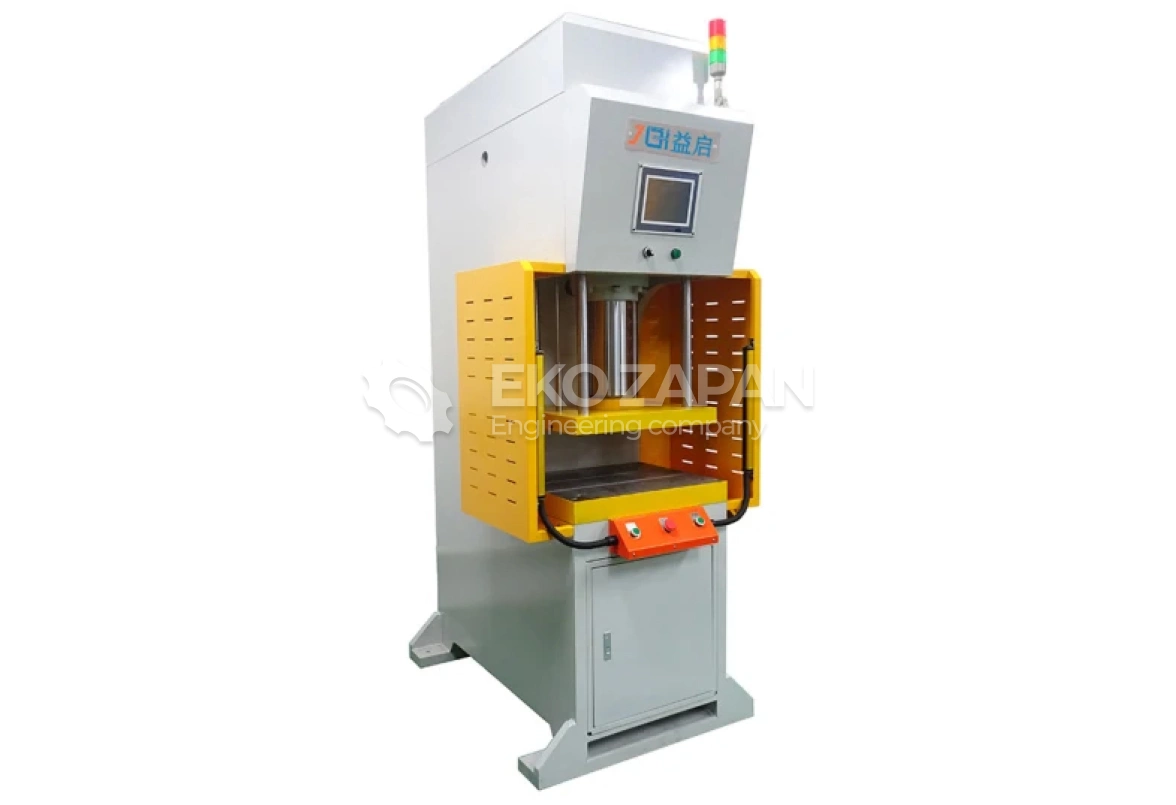

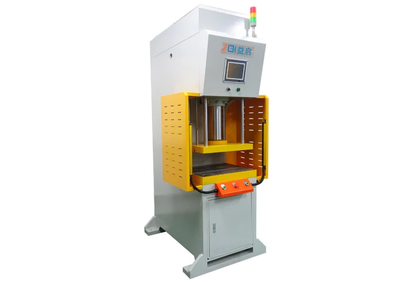

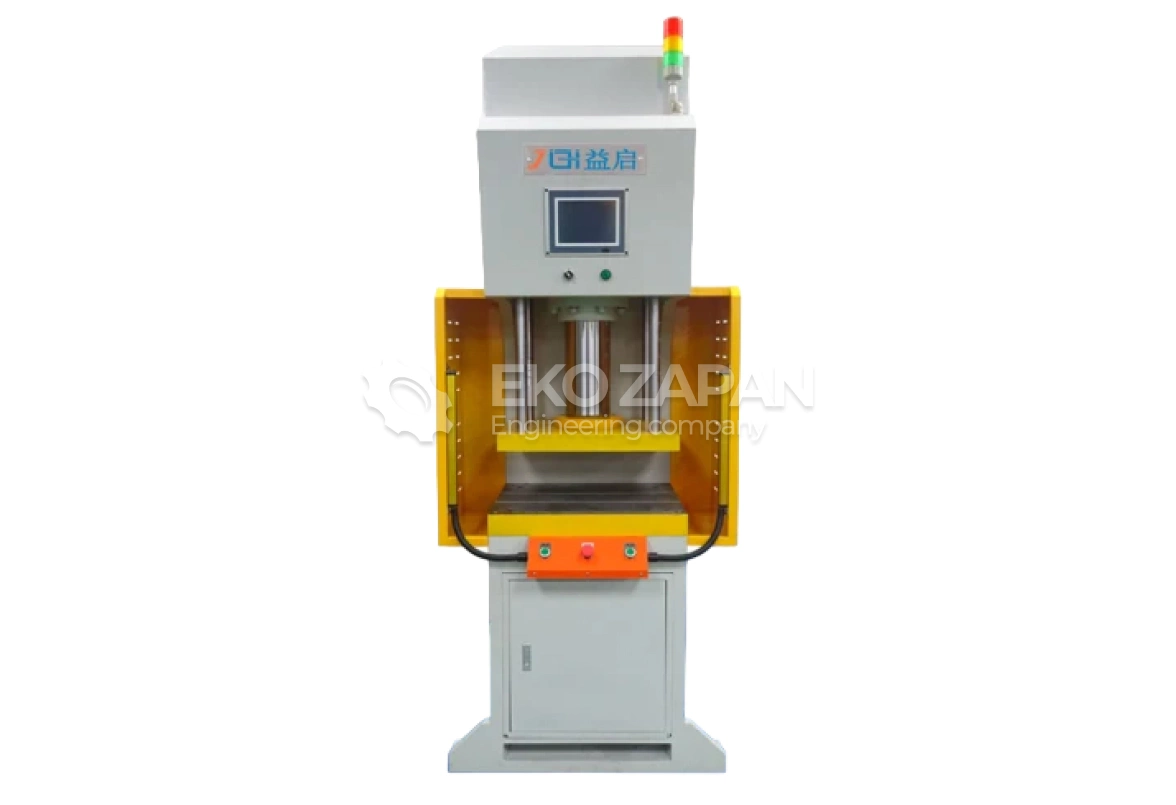

High-speed servo motor for metal stamping
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 22 400
$
Article: 2319
Specifications
| Parameter | Description |
| Working pressure of the main cylinder | 20~40 MPa |
| Pressure of the main cylinder | 15,000 kN |
| Maximum stroke of the main cylinder | 500 mm |
| Closed height | 950-1310 mm (adjustable) |
| Desktop area | 2000*1300 mm (adjustable) |
| Pressure cylinder volume | 2~3 L |
| Application | Aerospace industry, nuclear energy, automotive industry |
| Type | Hydraulic press with portal frame |
| Certification | CE |
| The effective area of each station | 560*560 mm, 700*700 mm, 800*800 mm, 900*900 mm |
| Engine power | 15 kW, 18.5 kW, 22 kW, 45 kW |
| Production time | 30-60 working days |
| Guarantee | One year for components and lifetime paid maintenance |
| Structure | C-shaped frame |
| The main components | Imported from famous brands |
| Function | Punching, cutting, stamping |
| Servo or not | Optional |
| Operating mode | Semi-automatic |
| Using | Punching bearings, die cutting |
| Voltage | 220V/380V/400V/415V 50Hz/60Hz/Optional |
| Engine power | 3.75 kW |
| OEM/ODM | Available |
| Certificate | CE |
| Colour | Optional |
| Applicable industries | Manufacturing enterprises |
| Specification | Customizable |
| Production capacity | 600 sets per year |
