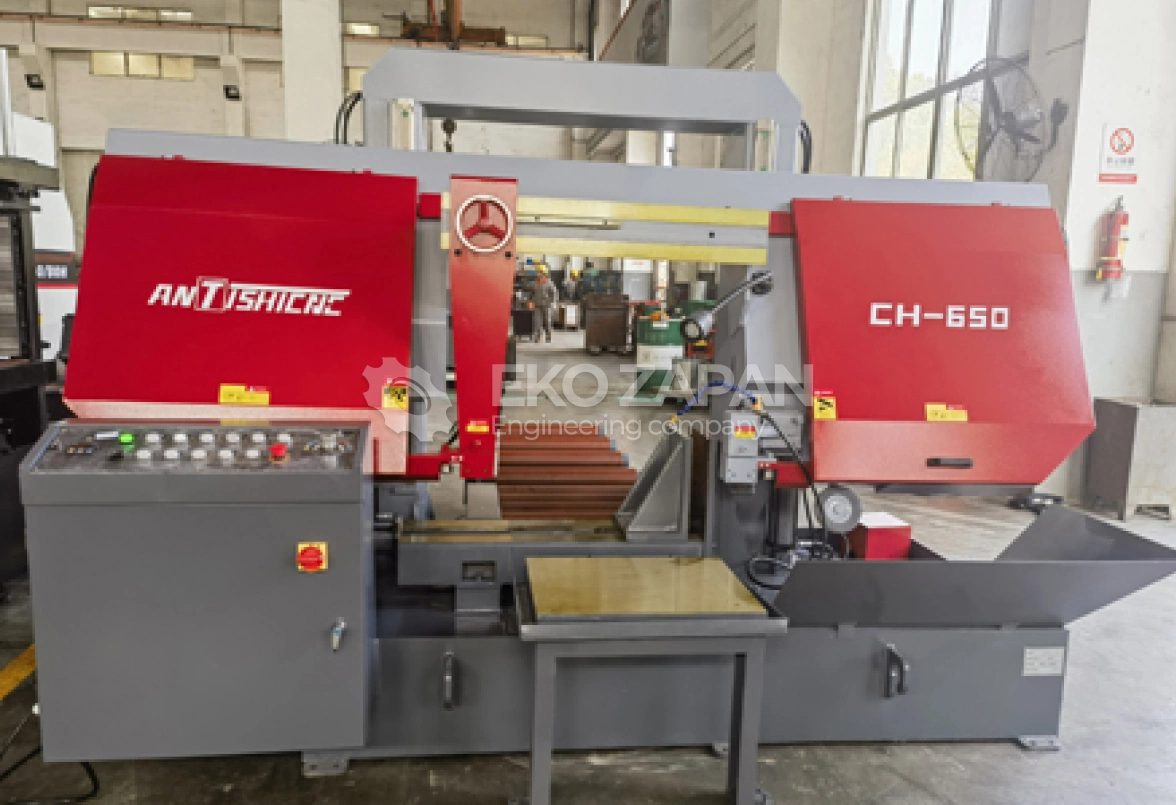

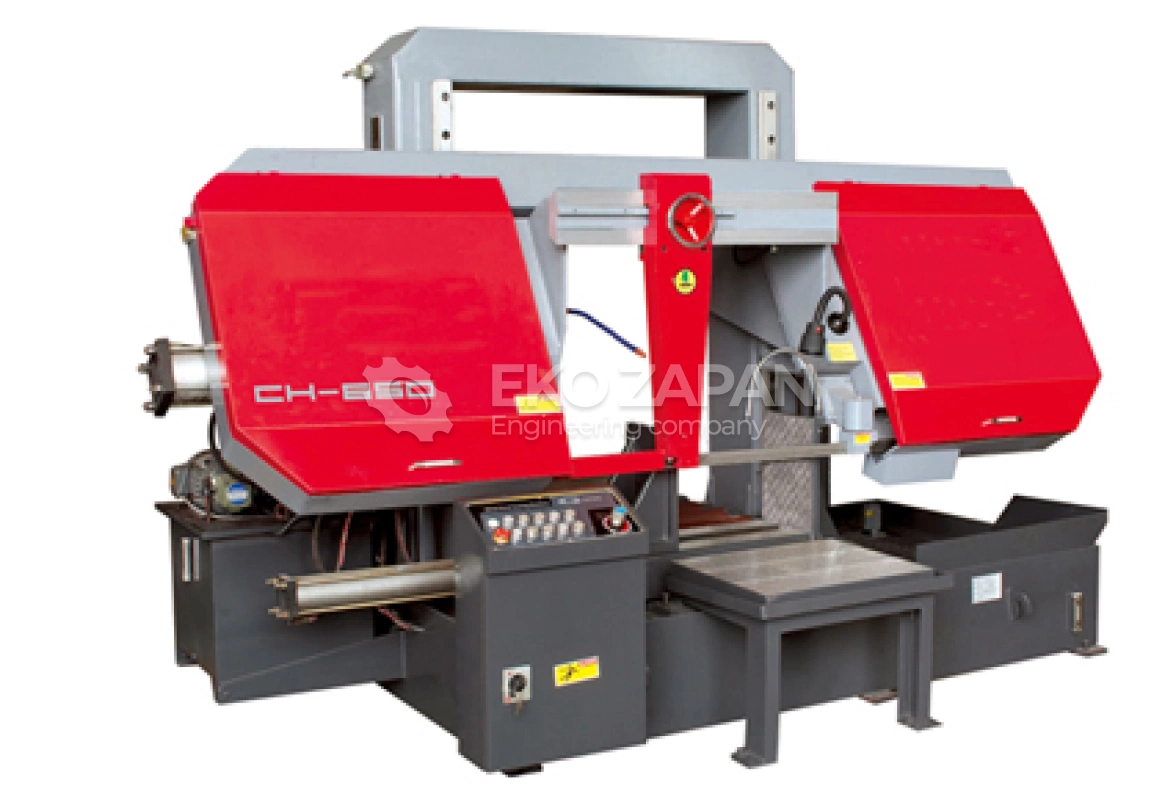

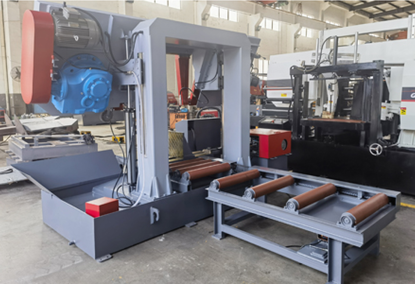

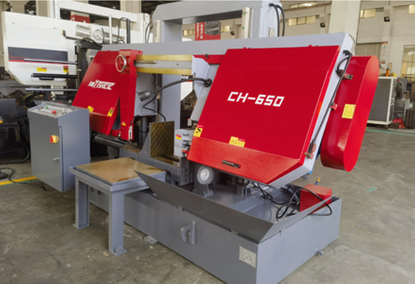

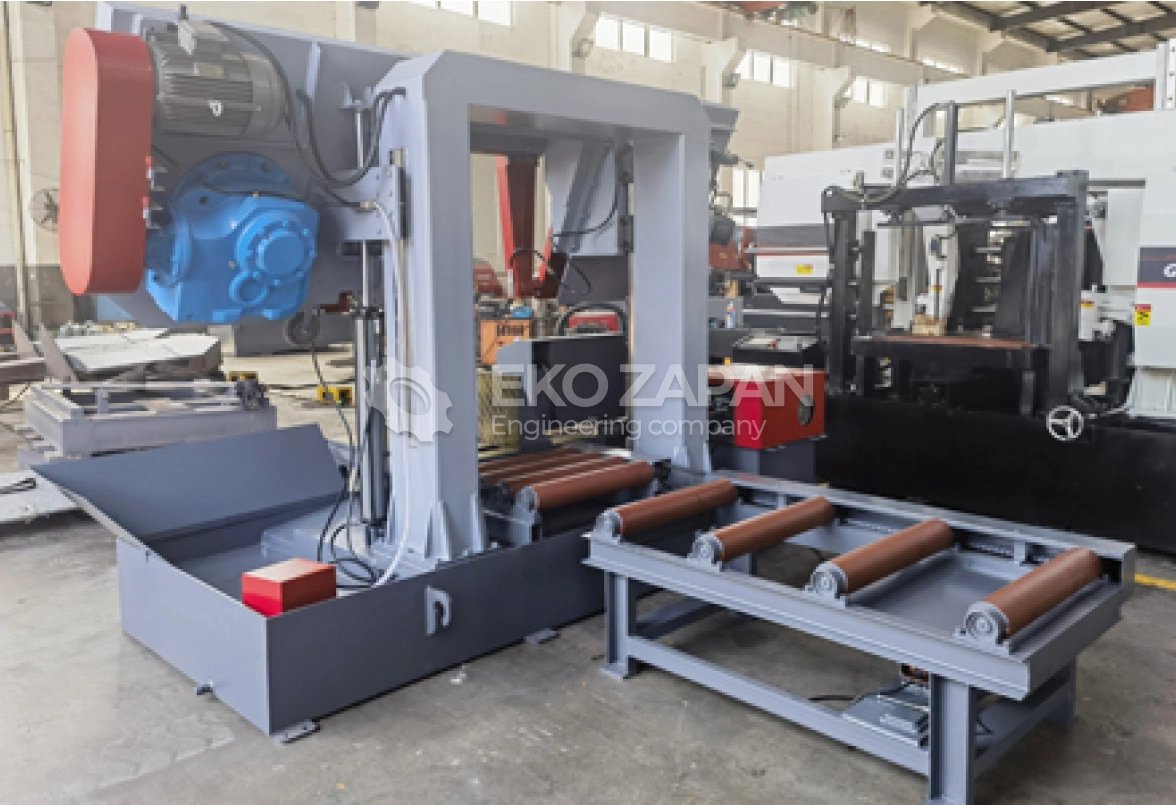

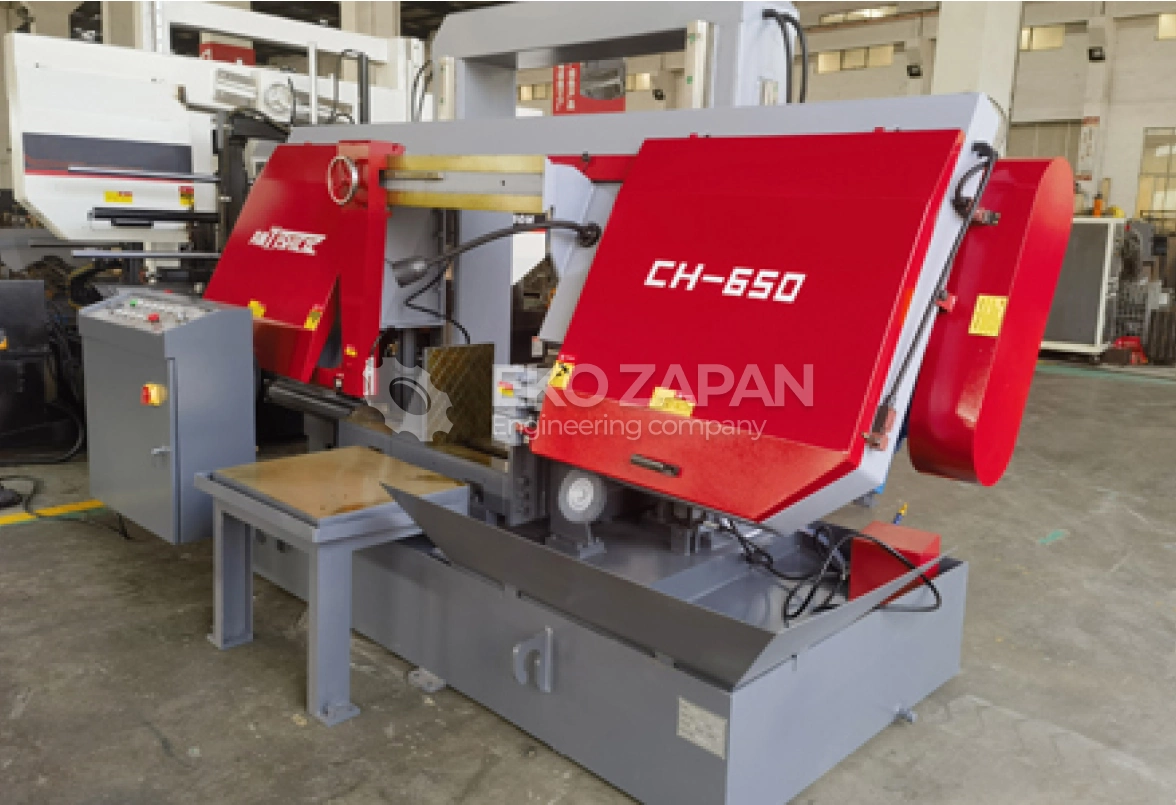

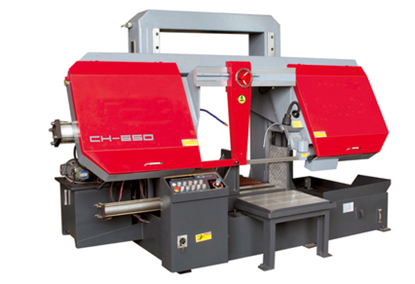

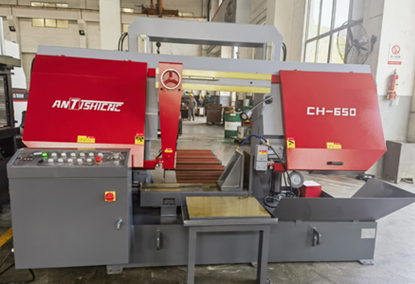

Horizontal Gantry Band Saw with Direct cutting ANTS CH-650/CH-1500
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 30 600
$
Article: 162
Specifications
| Specification | CH-650 | CH-800 | CH-1000 | CH-1200 | CH-1300 | CH-1500 |
| Cutting capacity at an angle of 0° (flat) (length x width) - mm | 650*650 | 800*800 | 1000*1000 | 1200*1200 | 1300*1300 | 1500*1500 |
| Cutting capacity at an angle of 0° (round) - mm | 650 | 800 | 1000 | 1200 | 1300 | 1500 |
| Cutting capacity at an angle of 0° (square) - mm | 650*650 | 800*800 | 1000*1000 | 1200*1200 | 1300*1300 | 1500*1500 |
| Cutting speed - m/min | 20~65 (inverter) | 18~60 (inverter) | 15~60 (inverter) | 15~60 (inverter) | 15~60 (inverter) | 10~50 (inverter) |
| Stop length (single stroke) - mm | N/A | N/A | N/A | N/A | N/A | N/A |
| Feed accuracy (single feed) - mm | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Blade size - mm | 54×1.6×6860 | 67x1.6x8820 | 67x1.6x9820 | 67x1.6x10800 | 67x1.6x11180 | 80x1.6x14850 |
| The type of tension of the saw blade | Hydraulics | Hydraulics | Hydraulics | Hydraulics | Hydraulics | Hydraulics |
| The height of the desktop is mm | 560 | 560 | 560 | 520 | 520 | 700 |
| Motor power - kW | 7.5 | 7.5 | 11 | 15 | 15 | 18.5 |
| Hydraulic power - kW | 1.5 | 2.25 | 3.75 | 3.75 | 3.75 | 5.5 |
| The overall dimensions of the machine are mm | 3390×1760×2260 | 4130x2150x2500 | 4560x2170x3040 | 4835x2180x3340 | 5050x2250x3380 | 6500x2300x4800 |
| Weight (net) - kg | 3292 | 7300 | 9200 | 11500 | 12100 | 27000 |
