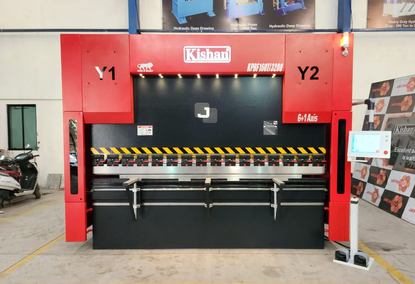

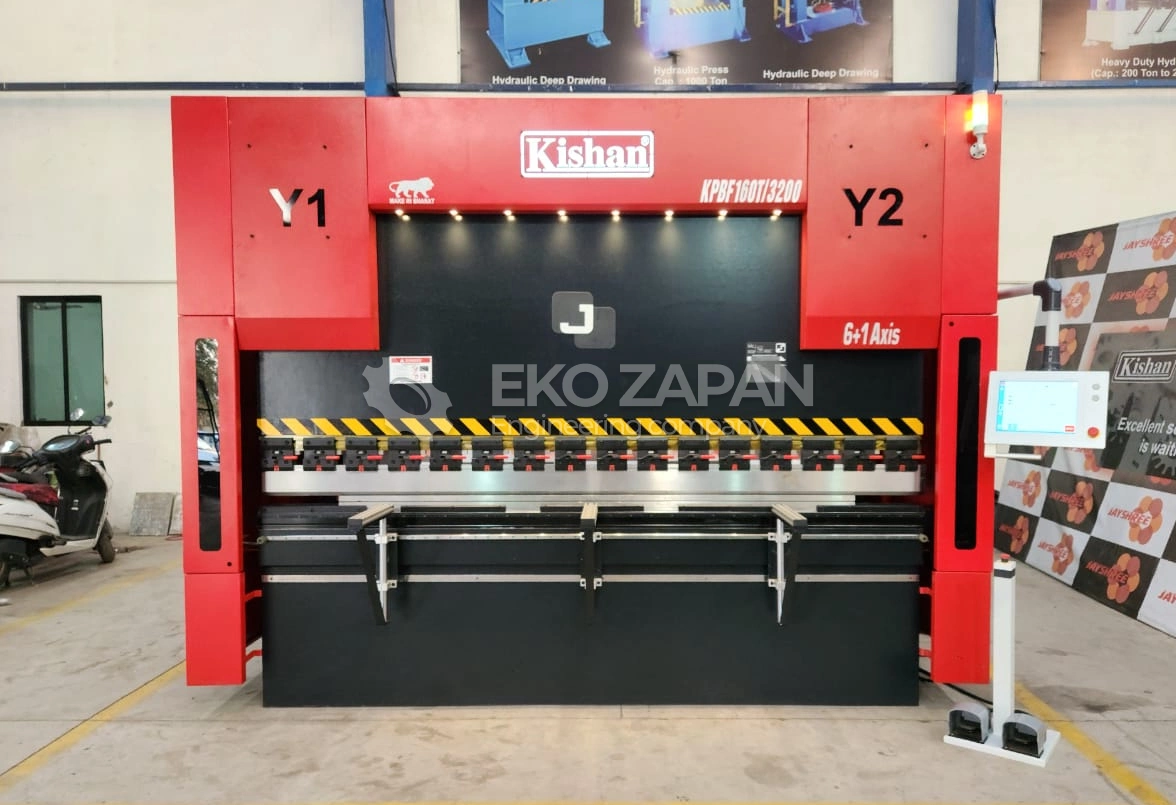

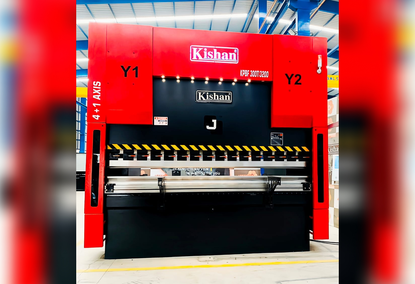

Hydraulic bending press with rear cylinders

Hydraulic bending press with rear cylinders

JAYKISHAN

Web-site: https://jayshreemachinetools.com

Email: jayshreemachinetools@gmail.com

Tel.number: +917211188104

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

Direct connection with the manufacturer

From 81 300 $

Article: 2731

It may take some time for a response.

Specifications

Robust construction made of ultra-tested IS 2062 sheets, rigidity meets international standards. Hydraulics and electronics from internationally recognized brands for stable operation and reliable performance. Front manual adjustment with rear guide and scale. Most hydraulic components are rated for 310 bar, but the working pressure is only 160 bar for long service life and reliable operation.

Piston guides with a 4-part design and replaceable liners. Pivots are constantly lubricated by a central manual pump. Cylinders made of ultra-tested seamless threaded tubes, chrome-plated pistons, double seals (Teflon ring and chevron seal set) for added reliability. 3-speed bending cycles for faster operation, but smooth and slow bending with minimal shock loads. Mobile control panel with most controls, emergency stop, up-down pedal control, single-cycle mode for setup and one-time jobs. Single-cycle modes for repetitive cycles and production runs.

Main cylinder seals are easily replaceable without the need for a crane to dismantle the piston. Hydraulic power ensures quiet operation, better overload protection, instant stop, and piston reversal. A set of standard tools without handles, a lifting chain system for tooling locking, and tooling block rotation when using a multi-V tooling block.

Technical Specifications

Model	Tonage	Bending Capacity (mm)	Table Width	Clearance
KPBR – 212	20	1270 x 2.5	125	900
KPBR – 215	20	1525 x 2	125	1100
KPBR – 312	30	1270 x 3	125	900
KPBR – 315	30	1525 x 2.15	125	1100
KPBR – 320	30	2030 x 2	125	1500
KPBR – 325	30	2540 x 1.6	125	2000
KPBR – 412	40	1270 x 4	150	900
KPBR – 415	40	1525 x 3	150	1100
KPBR – 420	40	2030 x 2.5	150	1550
KPBR – 425	40	2540 x 2	150	2000
KPBR – 430	40	3125 x 1.6	150	2500
KPBR – 512	50	1270 x 5	175	900
KPBR – 515	50	1525 x 4	175	1100
KPBR – 520	50	2030 x 3	175	1550
KPBR – 525	50	2540 x 2.5	175	2000
KPBR – 530	50	3125 x 2	175	2500
KPBR – 612	60	1270 x 4	175	900
KPBR – 615	60	1525 x 5	175	1100
KPBR – 620	60	2030 x 4	175	1550
KPBR – 625	60	2540 x 3	175	2000
KPBR – 30	60	3125 x 2.5	175	2500
KPBR – 812	80	1270 x 8	200	400
KPBR – 815	80	1525 x 6	200	1100
KPBR – 820	80	2030 x 5	200	1550
KPBR – 825	80	2540 x 4	200	2000
KPBR – 830	80	3125 x 3	200	2500
KPBR – 840	80	4000 x 2.5	200	3500
KPBR – 1012	100	1270 x 10	200	900
KPBR – 1015	100	1525 x 8	200	1100
KPBR – 1020	100	2030 x 6	200	1550
KPBR – 1025	100	2540 x 6	200	2000
KPBR – 1030	100	3125 x 4	200	2500
KPBR – 1040	100	4000 x 3	200	3000
KPBR – 1050	100	5000 x 2.5	200	4000
KPBR – 1060	100	6000 x 2	200	5000
KPBR – 1212	120	1270 x 12	125	900
KPBR – 1215	120	1525 x 10	125	1100
KPBR – 1220	120	2030 x 8	125	1550
KPBR – 1225	120	2540 x 6	125	2000
KPBR – 1230	120	3125 x 5	125	2500
KPBR – 1240	120	4000 x 5	125	3000
KPBR – 1250	120	5000 x 3	125	4000
KPBR – 1260	120	6000 x 3	225	5000
KPBR – 1612	160	1270 x 16	125	900
KPBR – 1615	160	1525 x 12	125	1100
KPBR – 1620	160	2030 x 10	125	1550
KPBR – 1625	160	2540 x 8	125	2000
KPBR – 1630	160	3125 x 6	125	2500
KPBR – 1640	160	4000 x 5	125	3000
KPBR – 1650	160	5000 x 4	125	4000
KPBR – 1660	150	6000 x 3	225	5000
KPBR – 2020	200	2030 x 12	250	1550
KPBR – 2025	200	2540 x 10	250	2000
KPBR – 2030	200	3125 x 8	250	2500
KPBR – 2040	200	4000 x 6	250	3000
KPBR – 2050	200	5000 x 5	250	4000
KPBR – 2060	200	6000 x 4	250	5000
KPBR – 2520	250	2030 x 16	250	1550
KPBR – 2525	250	2540 x 13	250	2000
KPBR – 2530	250	3125 x 10	250	2500
KPBR – 2540	250	4000 x 8	250	3000
KPBR – 2550	250	5000 x 6	250	4000
KPBR – 2560	250	6000 x 5	250	5000
KPBR – 3020	300	2030 x 20	275	1550
KPBR – 3025	300	2540 x 16	275	2000
KPBR – 3030	300	3125 x 13	275	2500
KPBR – 3040	300	4000 x 10	275	3000
KPBR – 3050	300	5000 x 8	275	4000
KPBR – 3060	300	6000 x 6	275	5000
KPBR – 4020	400	2030 x 25	300	1550
KPBR – 4025	400	2540 x 20	300	2000
KPBR – 4030	400	3125 x 16	300	2500
KPBR – 4040	400	4000 x 13	300	3000
KPBR – 4050	400	5000 x 10	300	4000
KPBR – 4060	400	6000 x 8	300	5000
KPBR – 5020	500	2030 x 30	350	1550
KPBR – 5025	500	2540 x 25	350	2000
KPBR – 5030	500	3125 x 20	350	2500
KPBR – 5040	500	4000 x 16	350	3000
KPBR – 5050	500	5000 x 13	350	4000
KPBR – 5060	500	6000 x 10	350	5000

विद्युत और आयामी पैरामीटर

पिस्टन चाल (मिमी)	खुलने की ऊंचाई (मिमी)	गहराई (मिमी)	पावर (एचपी)	गति (APP. PRE. RET.)	पैकेज आकार (लxचxऊ मिमी)
100	250	200	3	35-9-60	1400 x 1050 x 1900
100	250	200	3	35-9-60	1700 x 1050 x 1900
100	250	200	3	30-09-1953	1400 x 1050 x 1900
100	250	200	3	30-09-1953	2700 x 1050 x 1900
100	250	200	3	30-09-1953	2200 x 1050 x 1900
100	250	200	3	30-09-1953	2700 x 1050 x 1900
100	250	200	3	30-09-1953	2200 x 1050 x 1900
320	600	200	40	35-6-41	1400 x 1500 x 2200
320	600	200	40	37-6-41	1700 x 1500 x 2200
320	600	200	40	37-6-41	2200 x 1500 x 2200
320	600	200	40	37-6-41	1400 x 1500 x 2300
320	600	200	40	37-6-41	1700 x 1500 x 2300
320	600	200	40	37-6-41	2200 x 1500 x 2200
320	600	200	40	37-6-41	1700 x 1500 x 2300
400	600	250	5	37-6-41	1400 x 1500 x 2200
400	600	250	5	37-6-41	1700 x 1500 x 2200
400	600	250	5	37-6-41	2200 x 1500 x 2200
400	600	250	5	37-6-41	1400 x 1500 x 2300
400	600	250	5	37-6-41	1700 x 1500 x 2300
400	600	250	5	37-6-41	2200 x 1500 x 2200
400	800	250	7.5	37-6-41	1400 x 1700 x 2300
400	800	250	7.5	37-6-41	1700 x 1700 x 2500
400	800	250	7.5	37-6-41	2200 x 1700 x 2800
