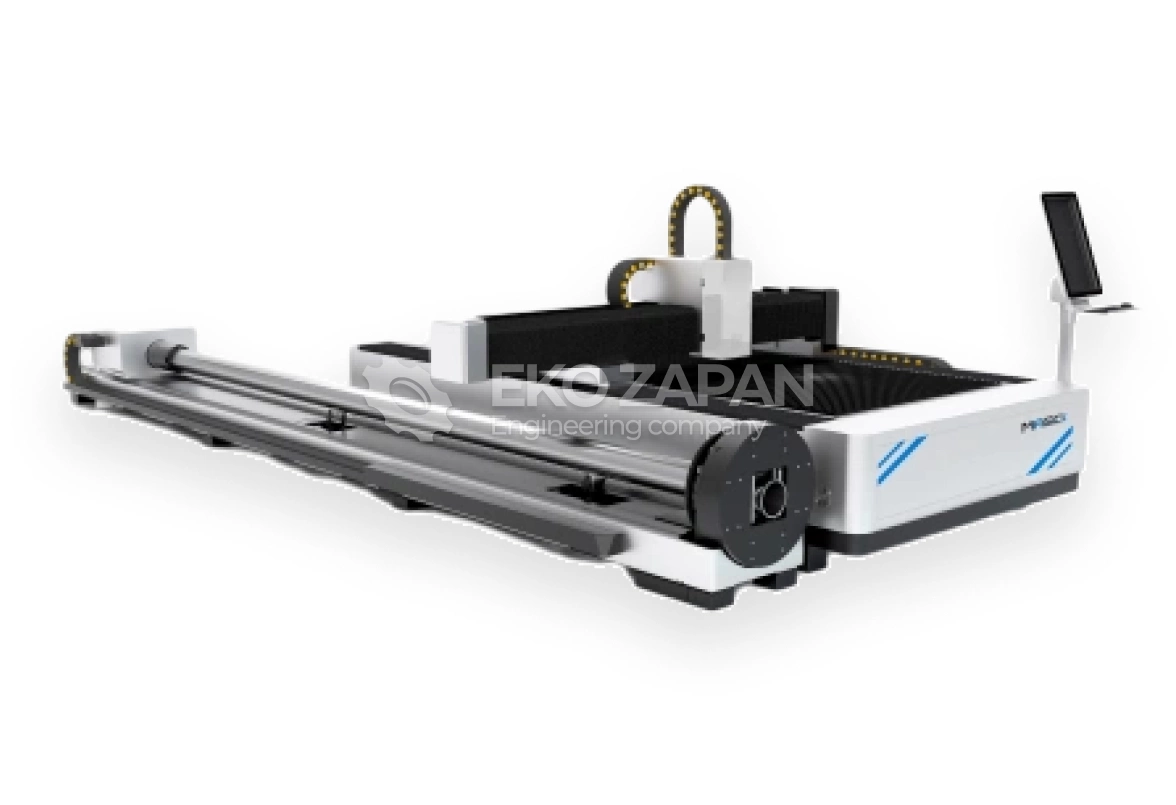

MAGICK: MK-ST Fiber Laser Cutting Machine
- Модели: MK-3015ST - MK-6020ST
- Мощность лазера: 1000 Вт / 4000 Вт
- Рабочая зона: 3000*1500 мм / 6000*2000 мм
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
Article: 45
Main Characteristics of the MK-ST series fiber laser cutting machine
| Model Number | MK-3015ST | MK-4020ST | MK-6020ST | |
| Working area | 3000*1500 mm | 4000*2000 mm | 6000*2000 mm | |
| Laser output power | 1000W / 1500W / 2000W / 3000W / 4000W | |||
| Effective pipe cutting diameter | f 20-220 mm | |||
| Effective cutting diameter of a square pipe | 20*20-160*160 mm | |||
| Rectangular pipe | Min. Edge length | >20 mm | ||
| Max. Diameter of the outer circle | <220 mm | |||
| Effective pipe cutting length | 3 m/6 m | |||
| X/Y/U axis positioning accuracy | 0.03 mm | |||
| Accuracy of position change along the X/Y/U axis | 0.02 mm | |||
| Maximum hitching speed on the X/Y axis | 120 m/min | |||
| The maximum speed of movement along the U axis | 30 m/min | |||
Features of the MK-ST Fiber Laser Cutting machine

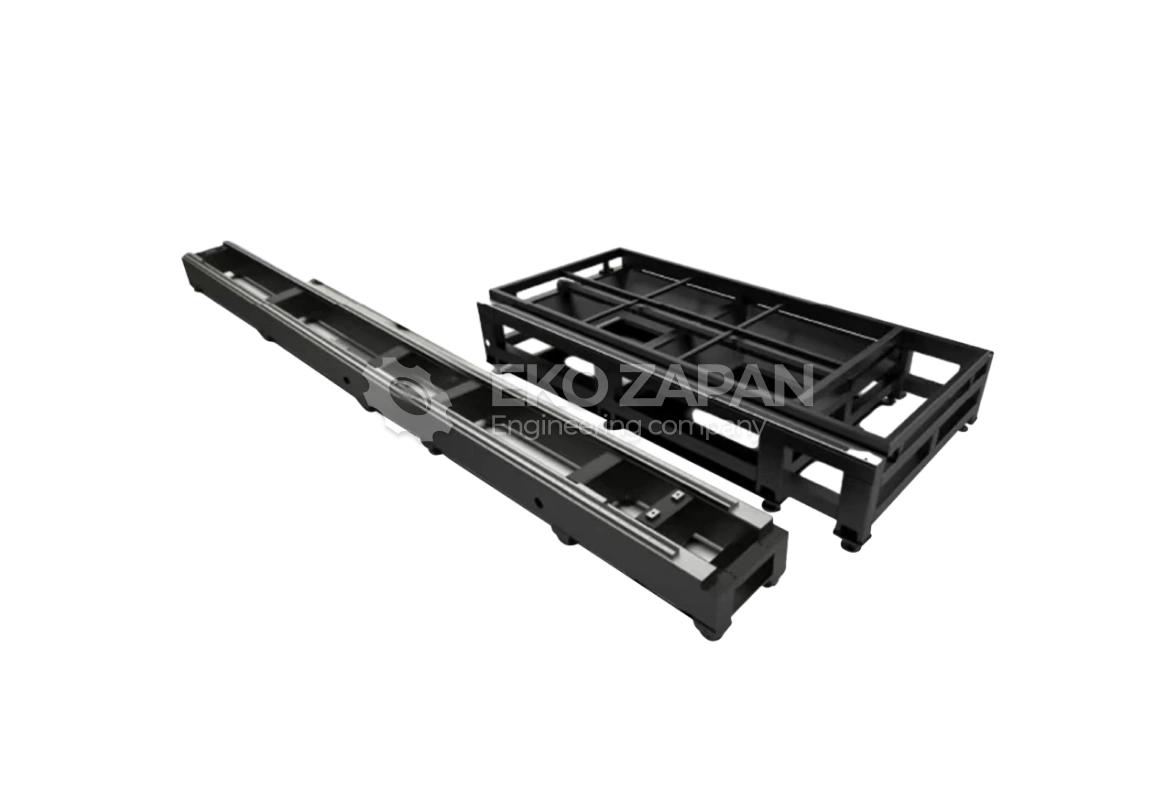

1. The bed of an industrial machine
The robust housing is highly resistant. It is unprecedented among other materials and structures. The use of graphite cast iron as a raw material preserves the accuracy of the machine for a long period and remains unchanged for 50 years.

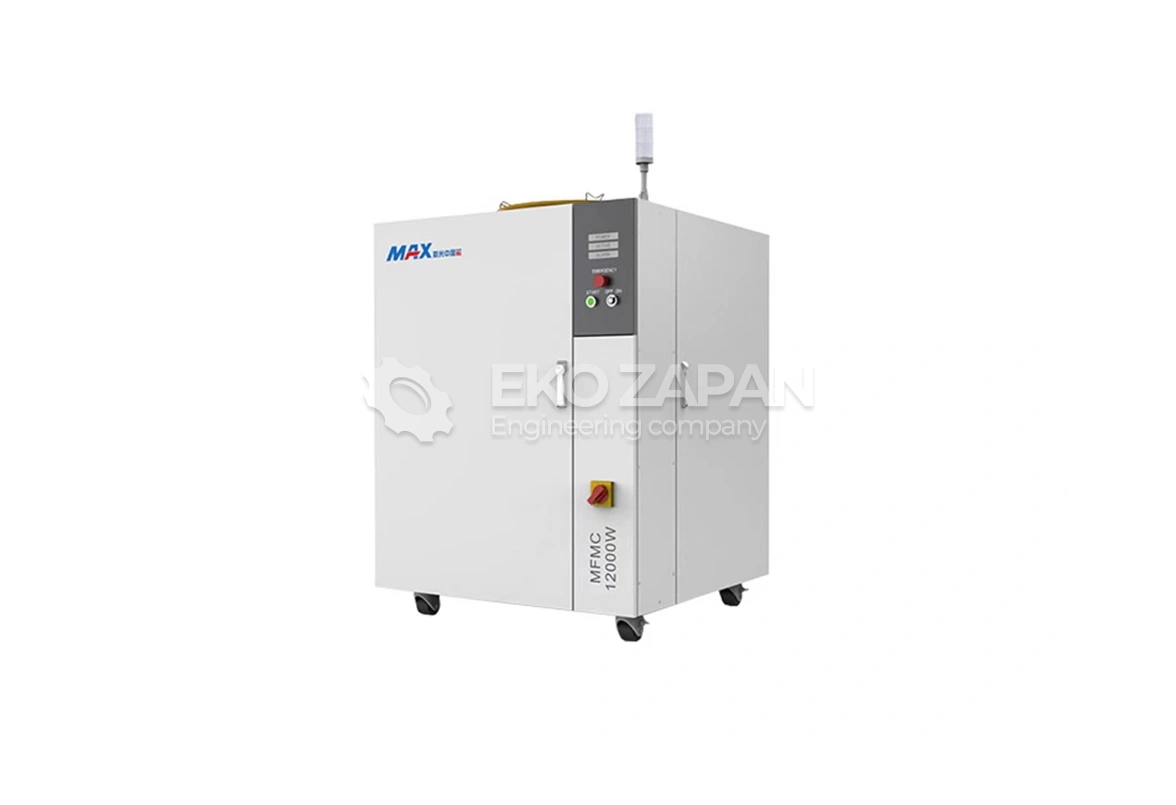

2. Laser source
Supply of laser sources of various brands and capacities. The higher the power, the greater the cutting thickness. Provide the longest warranty period for the laser source.

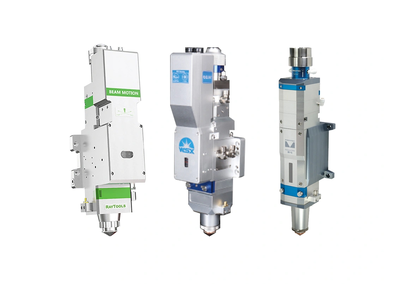

3. Laser cutting head
The entire body is subjected to T6 heat treatment, which ensures maximum strength. Treatment with a solution increases the strength and ductility of the body, optimizes and reduces its weight, accelerating movement.
