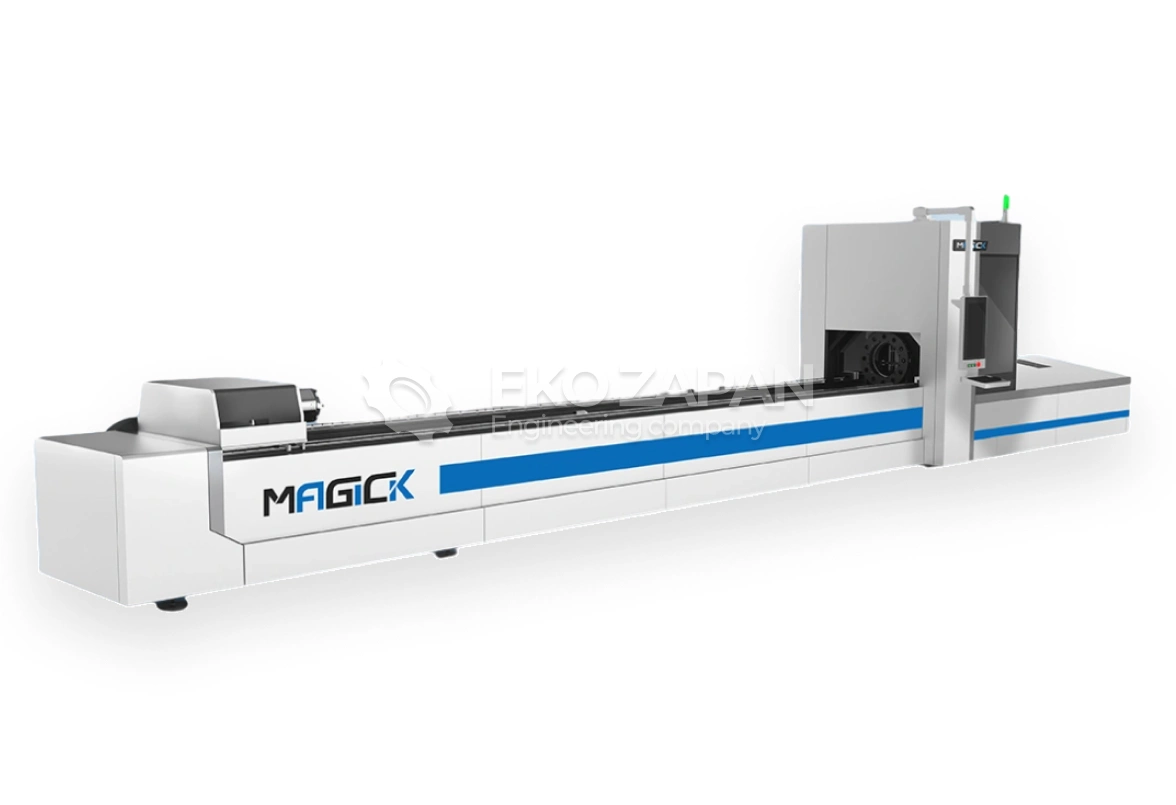

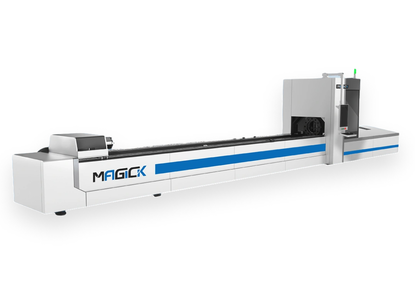

MAGICK: MK-T Laser Tube Cutting Machine
- Мощность лазера: 1000 - 6000 Вт
- Максимальное ускорение: 1,5G
- Диаметр круглой трубы: ⌀15-350 мм
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
Article: 44
Main characteristics of the MK-EC series laser cutting machine
| Model | MK-12035T | MK-12020T | MK-6020T |
| Laser output power | 1000W / 6000W | ||
| Diameter of the round tube | ⌀ 15-350 mm | ⌀ 15-230 mm | |
| The Length of the side of The Square Pipe | 15-350 mm | 15-230 mm | |
| Positioning accuracy | ±0.05 mm | ||
| Re-Positioning Accuracy | ±0.05 mm | ||
| Maximum Travel Speed | 80 m/min | 110 m/min | |
| Maximum acceleration | 0,8G | 1,5G | |
Description of the MK-T series laser cutting machine
1. Laser source
We offer an assortment of laser sources of various brands and capacities. The higher the power, the greater the thickness of the material that can be cut. We guarantee the longest possible service life of the laser source.
2. Efficient automatic lubrication system
Adjust the amount and time intervals of automatic lubrication according to the operating time of the equipment. Guides, blocks, gears, frames and other components are automatically lubricated, saving you from having to deal with used oil and cleaning procedures.
3. Laser cutting head
All beams are heat treated according to the T6 standard to ensure maximum strength. The use of a special solution increases the strength and ductility of the beams, optimizes and reduces their weight, which in turn accelerates the movement process.
Features of the MK-EC Fiber Laser Cutting machine
Gear drive
High transmission efficiency, high precision, stable and long service life.

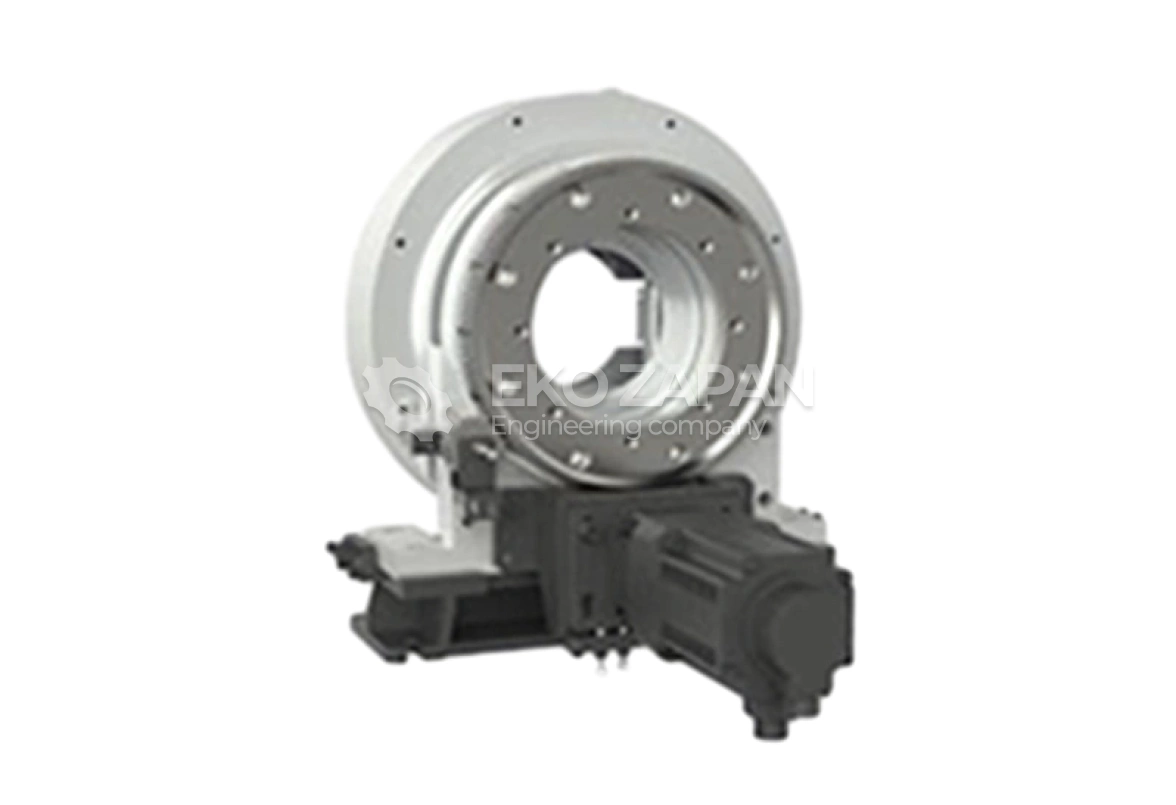

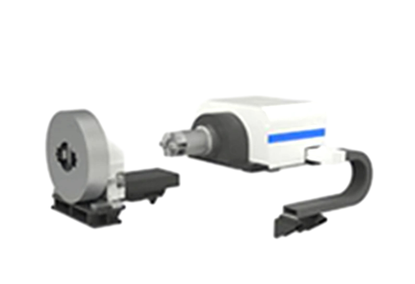

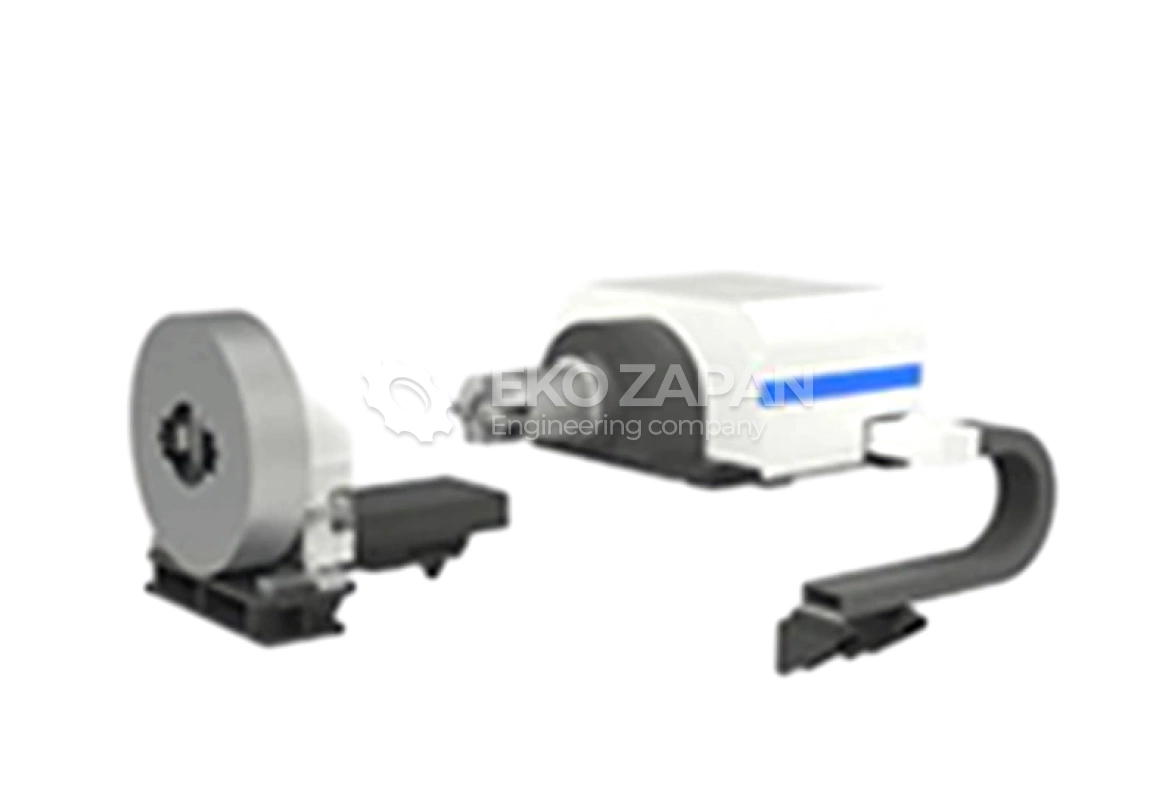

Double chuck clamp
The clamping tube is round 10-160 mm.
The servo motor and gearbox are driven synchronously, which ensures the accuracy of processing. The front and rear cartridges are tightened pneumatically

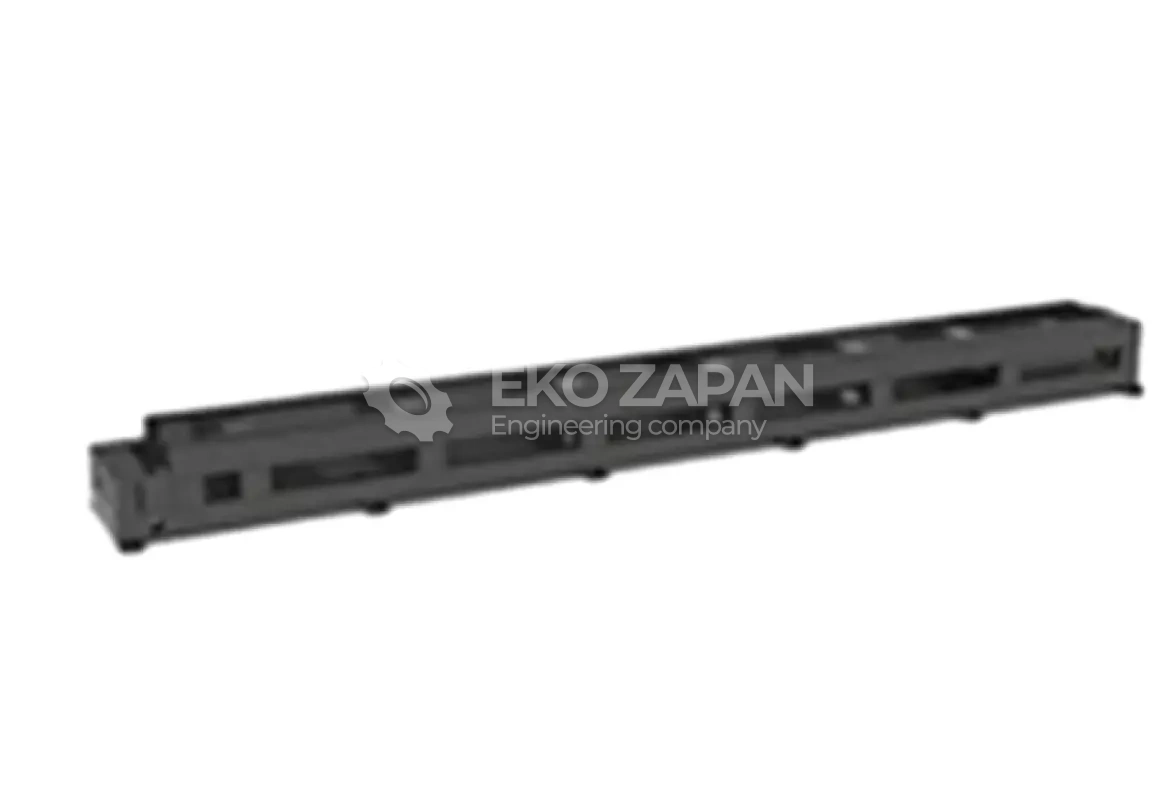

Stable machine bed and portal design
The machine bed and the portal structure have a plate welded structure. After heat treatment and annealing to relieve stress, the structure becomes stable and has good rigidity.
