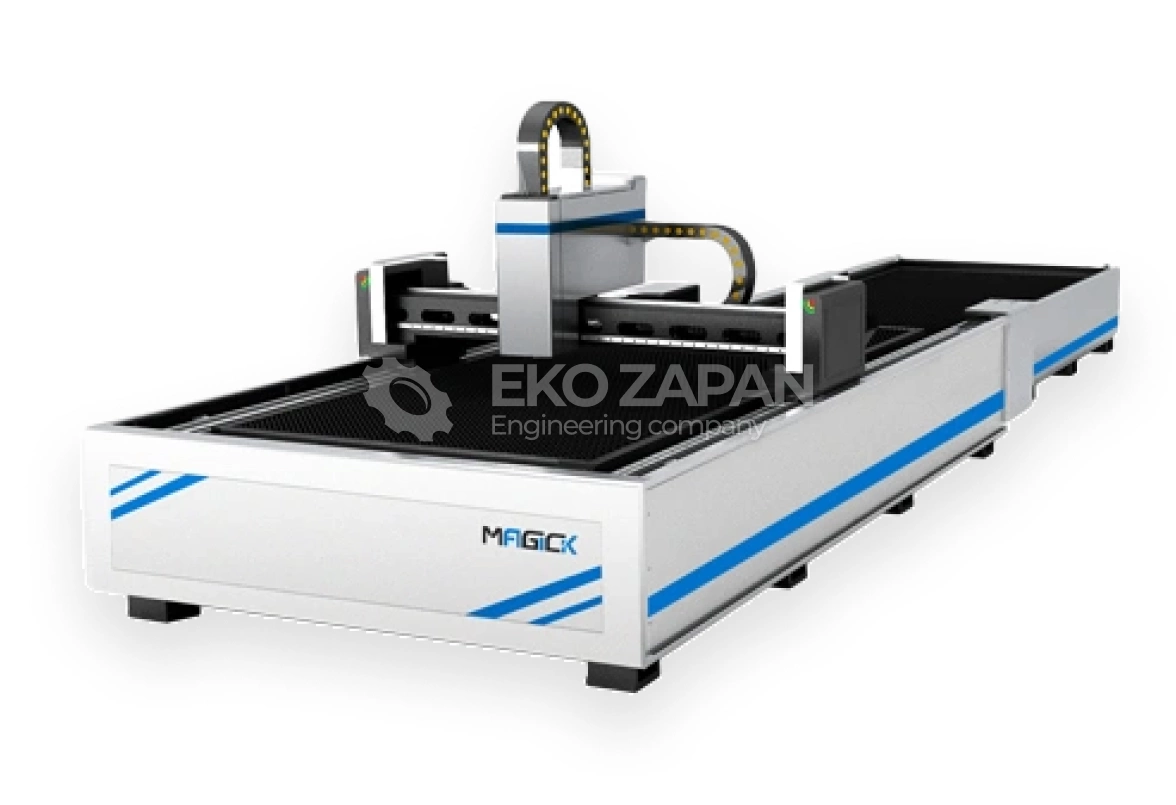

MAGICK: MK-E series Laser Cutting Machine
- Модели: MK-3015E - MK-8025E
- Рабочая зона: 3000*1500 мм / 8000*2500 мм
- Максимальная скорость: 140 м/мин
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
Article: 38
Main characteristics of the MK-E series laser cutting machine
| Model | MK-3015E | MK-4020E | MK-6020E | MK-6025E | MK-8025E |
| Working area | 3000*1500mm | 4000*2000mm | 6000*2000mm | 6000*2500mm | 8000*2500mm |
| Laser output power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000 W | ||||
| Repeat movement accuracy | +0.03mm | ||||
| Positioning accuracy | ±0.02mm | ||||
| Maximum speed | 140m/min | ||||
| Maximum acceleration | 1.2 G | ||||
Description of the MK-E series laser cutting machine

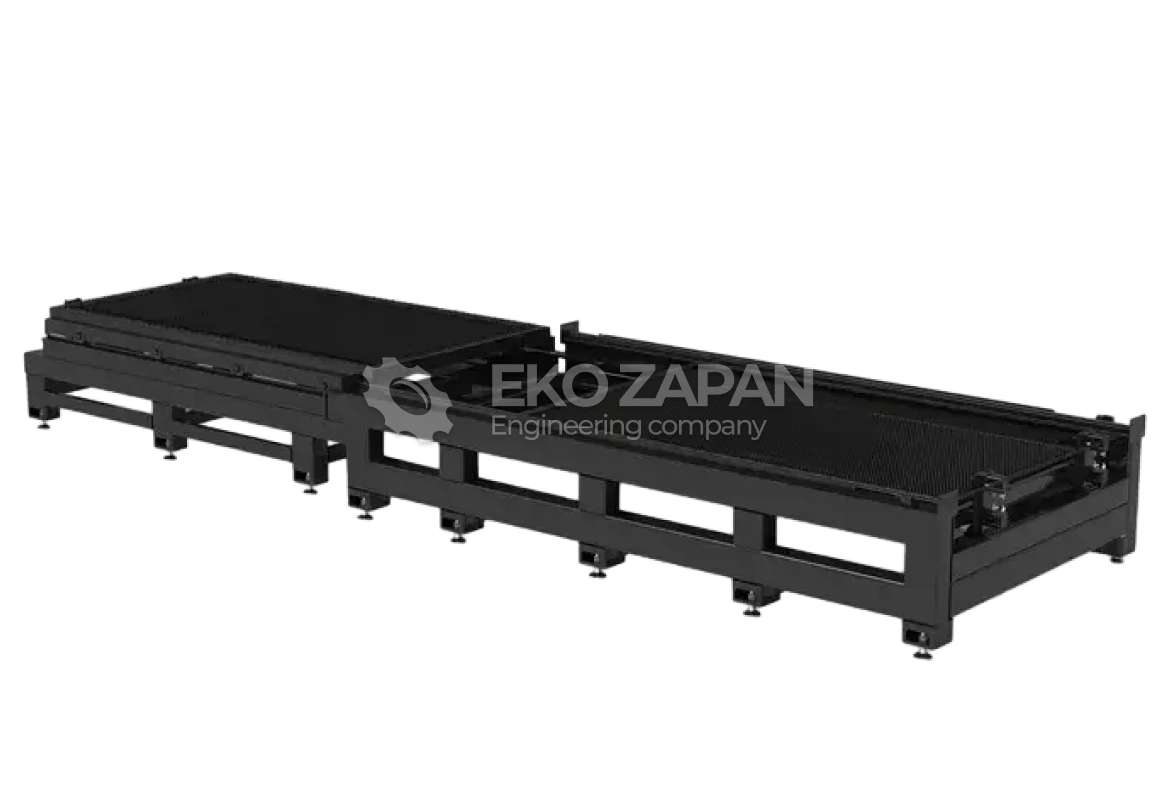

1. Industrial machine base
High-quality steel is used as a raw material. The front base is welded from high-quality carbon steel plates that can withstand lasers with a power from 1 kW to 20 kW. The rear base, welded from steel pipes, is easy and convenient to install and move.

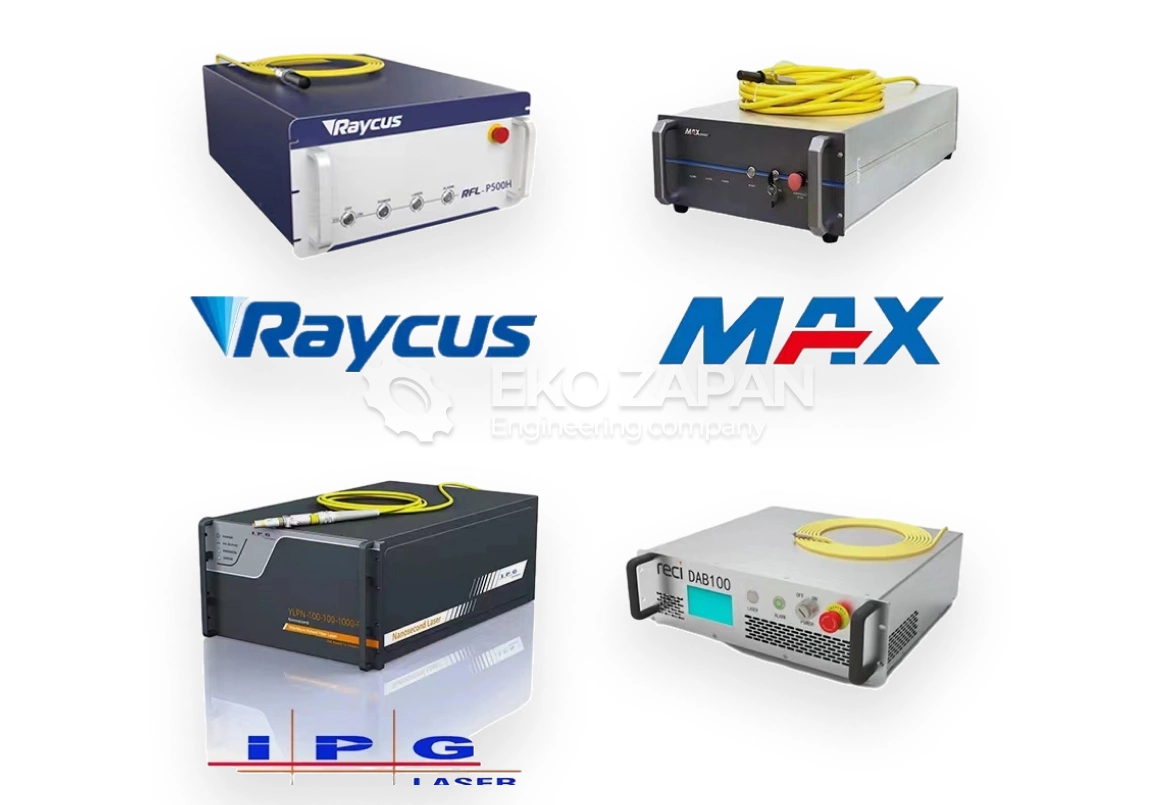

2. Laser source
Different brands of laser sources with different power are supplied. The higher the power, the thicker the material can be cut. The longest warranty period for a laser source is provided.

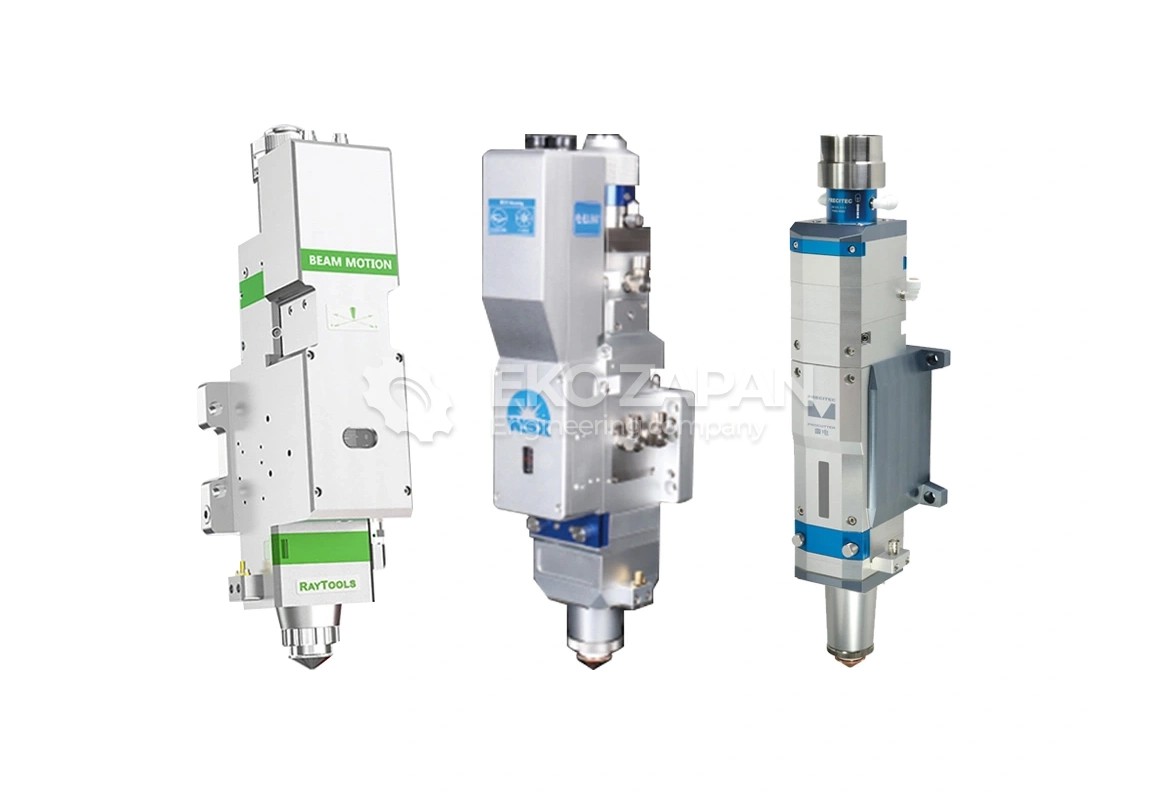

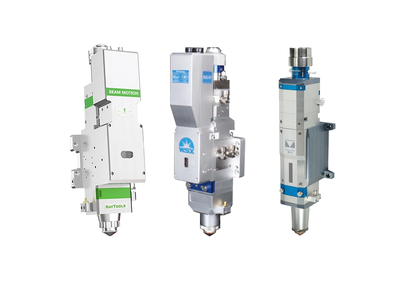

3. Laser cutting head
The entire beam is treated with T6 heat treatment to achieve maximum strength. The treatment with a solution increases the strength and plasticity of the beam, optimizes and reduces its weight, accelerating movement.
