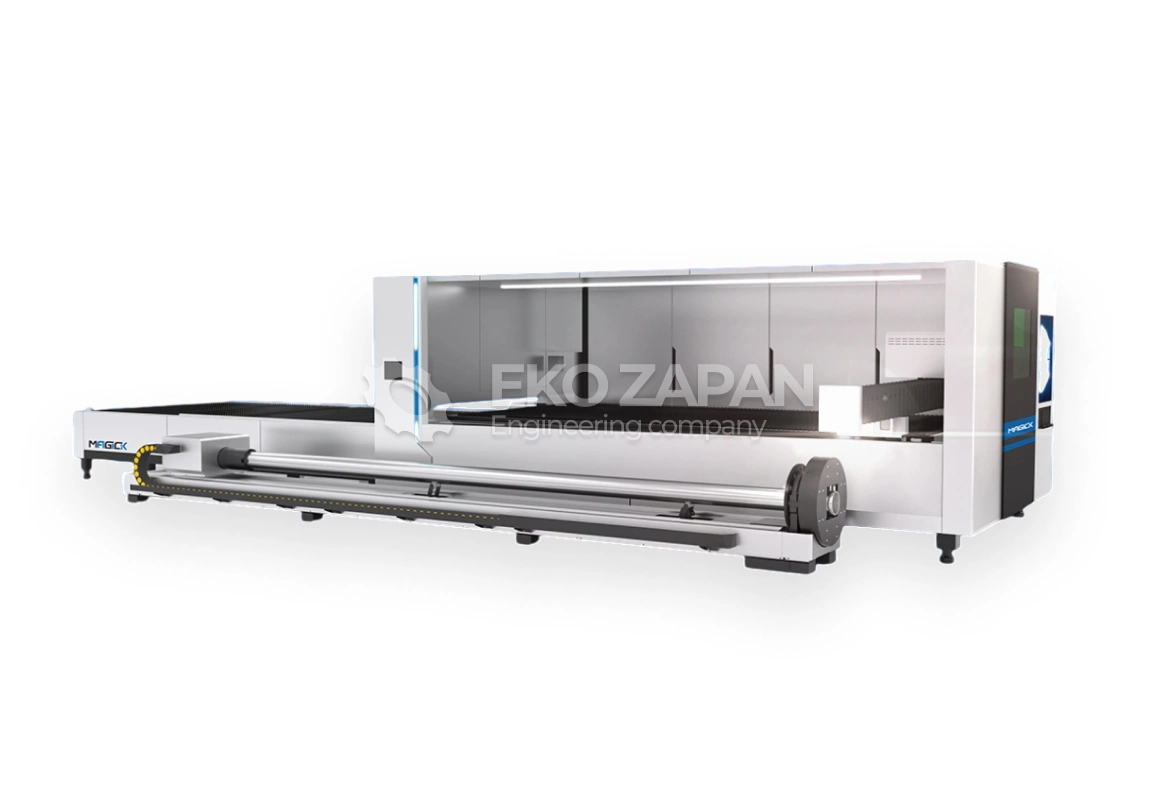

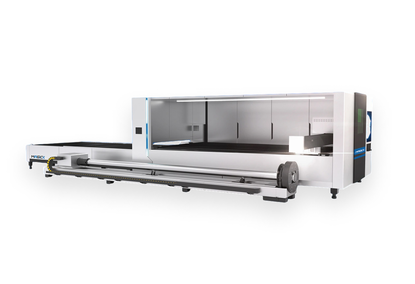

MAGICK: MK-CET series Laser Cutting Machine
- Модели: MK-3015CET - MK-6020CET
- Мощность лазера: 1000 Вт / 4000 Вт
- Рабочая зона: 3000*1500 мм / 6000*2000 мм
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
Article: 47
Main Characteristics of the MK-CET series fiber laser cutting machine
| Model Number | MK-3015CET | MK-4020CET | MK-6020CET | |
| Working area | 3000*1500 mm | 4000*2000 mm | 6000*2000 mm | |
| Laser output power | 1000W / 1500W / 2000W / 3000W / 4000W | |||
| Effective pipe cutting diameter | f 20-220 mm | |||
| Effective cutting diameter of a square pipe | 20*20-160*160 mm | |||
| Rectangular tube | Min. Edge length | >20 mm | ||
| Max. Diameter of the outer circle | ≤220 mm | |||
| Effective pipe cutting length | 3 m/6 m | |||
| X/Y/U axis positioning accuracy | 0.03 mm | |||
| Accuracy of position change along the X/Y/U axis | 0.02 mm | |||
| Maximum hitching speed on the X/Y axis | 120 m/min | |||
| The maximum speed of movement along the U axis | 30 m/min | |||
Description of the MK-CET laser cutting machine

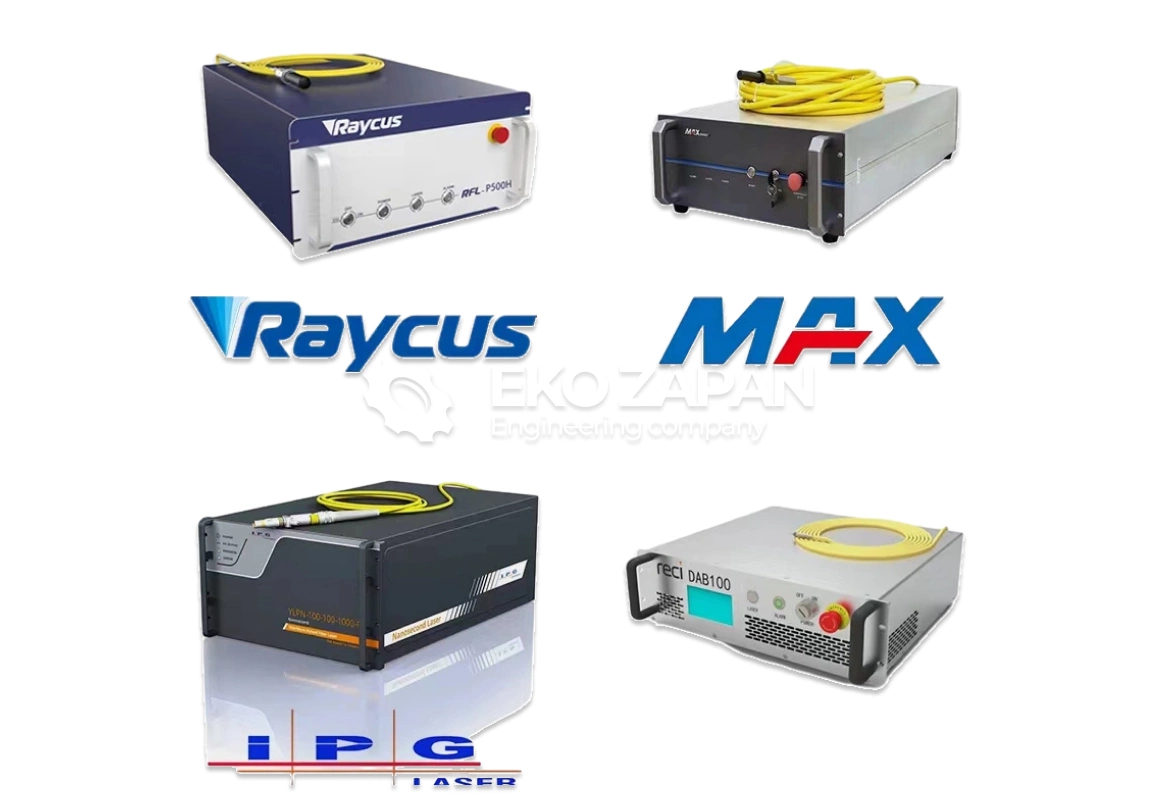

1. Laser source
We supply laser sources of various brands and capacities. The higher the power, the greater the cutting thickness possibilities. We provide the longest warranty periods for laser sources, ensuring reliability and durability in operation.

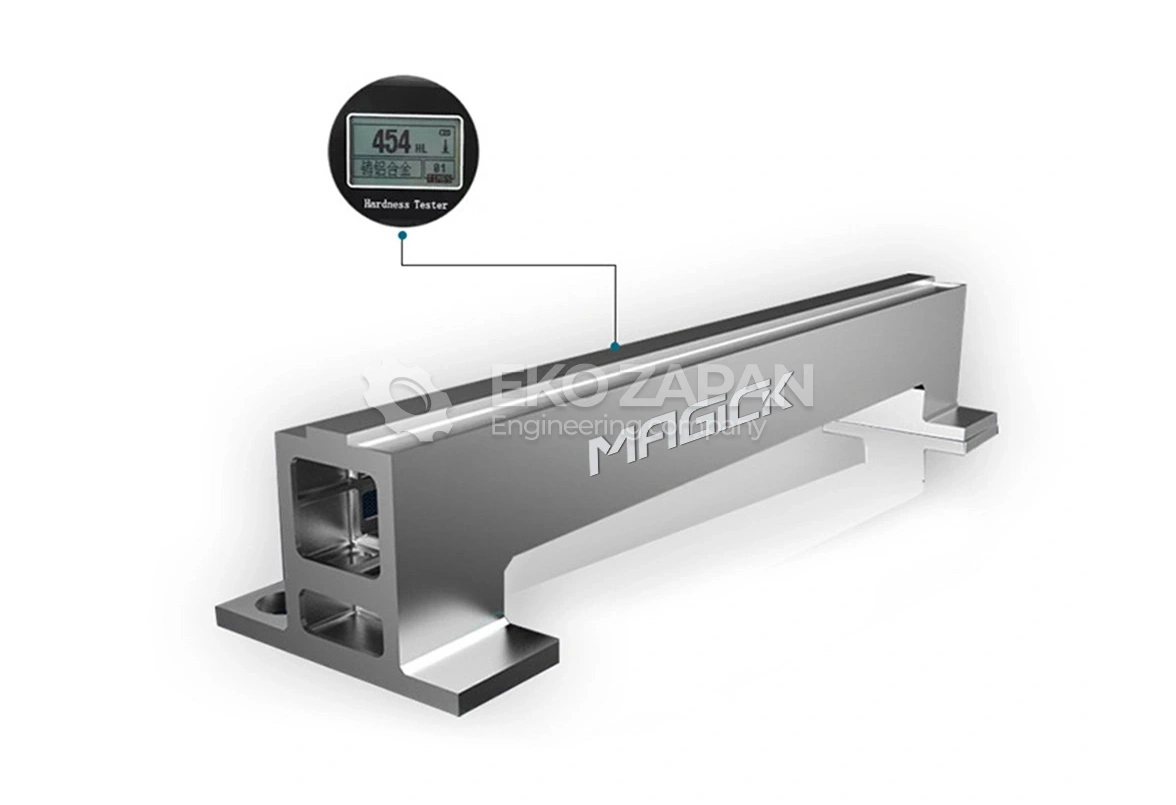

2. Beam made of high-strength aviation aluminum alloy
The entire beam is treated with T6 heat treatment to achieve maximum strength. The dissolution process improves the strength and ductility of the beam, optimizes and reduces its weight, and accelerates the speed of movement.

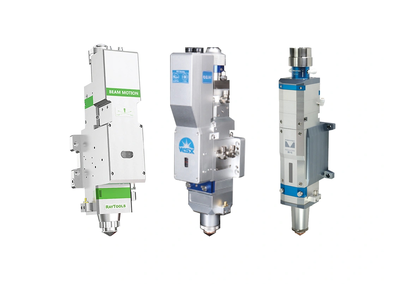

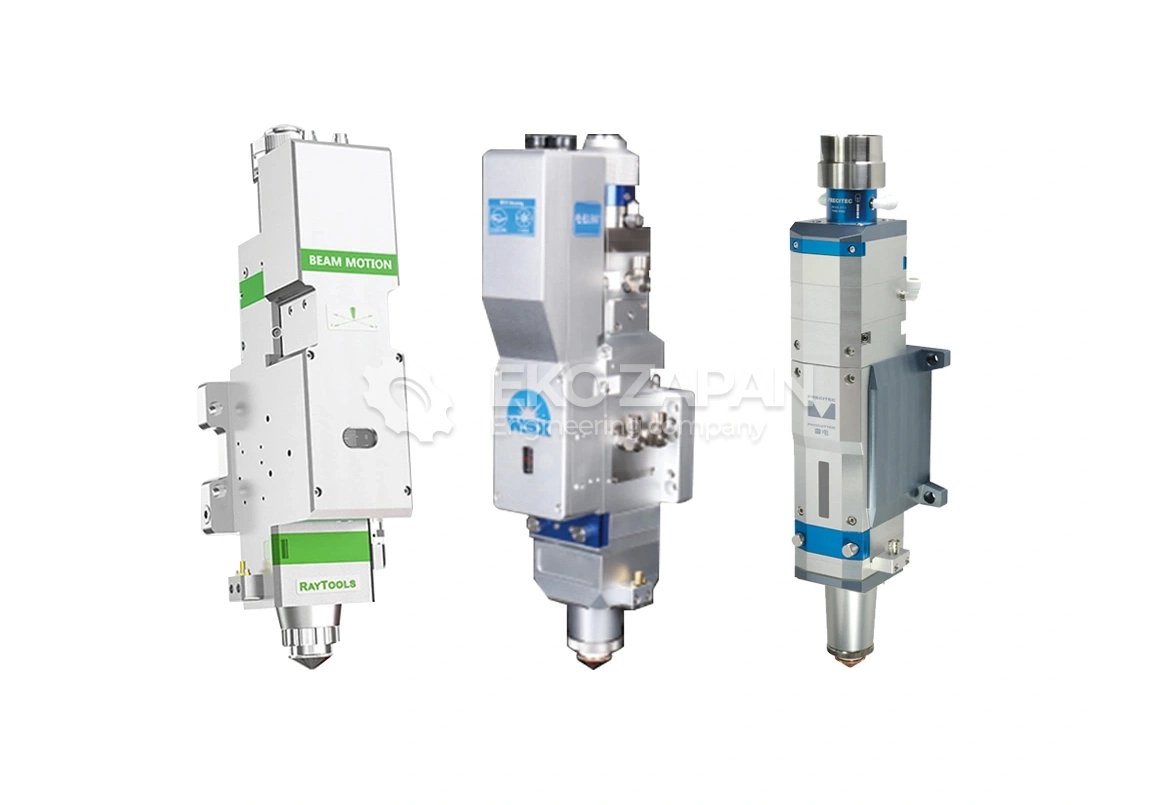

3. Laser cutting head
The entire beam is subjected to a T6 heat treatment process to achieve maximum strength. The dissolution process improves the strength and ductility of the beam, optimizes and reduces its weight, and accelerates the speed of movement.
