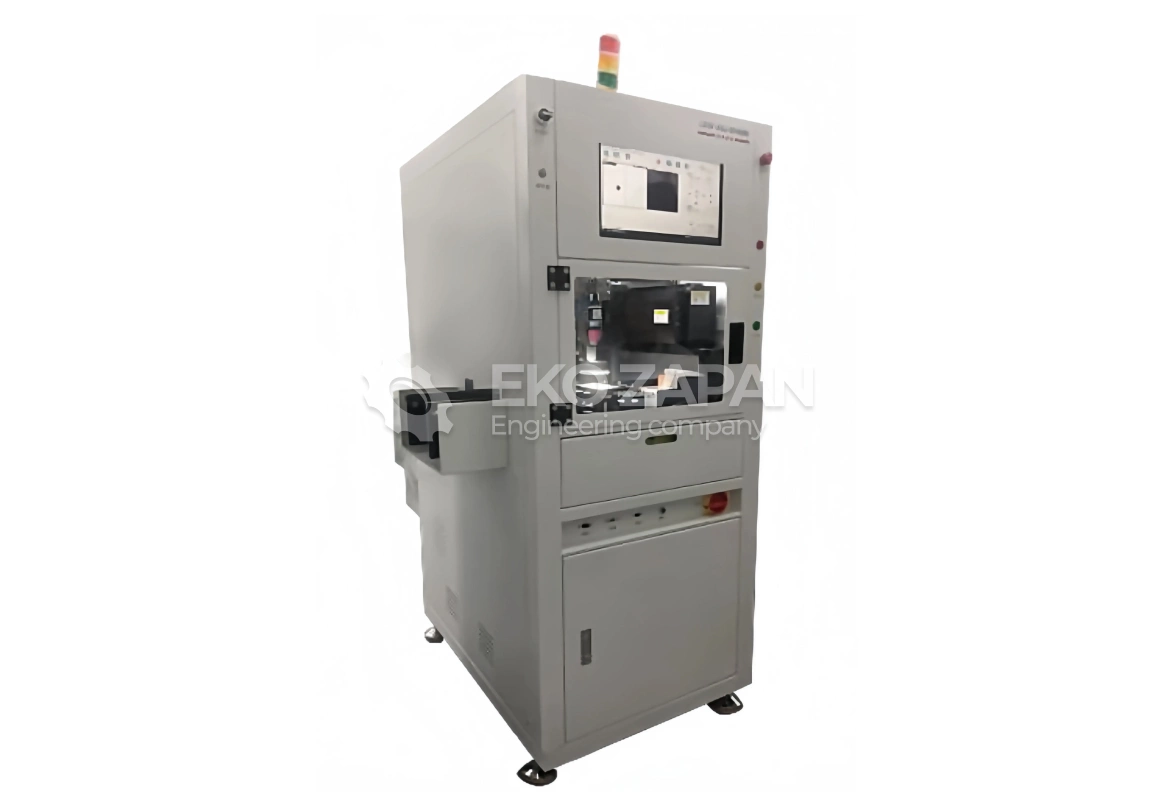

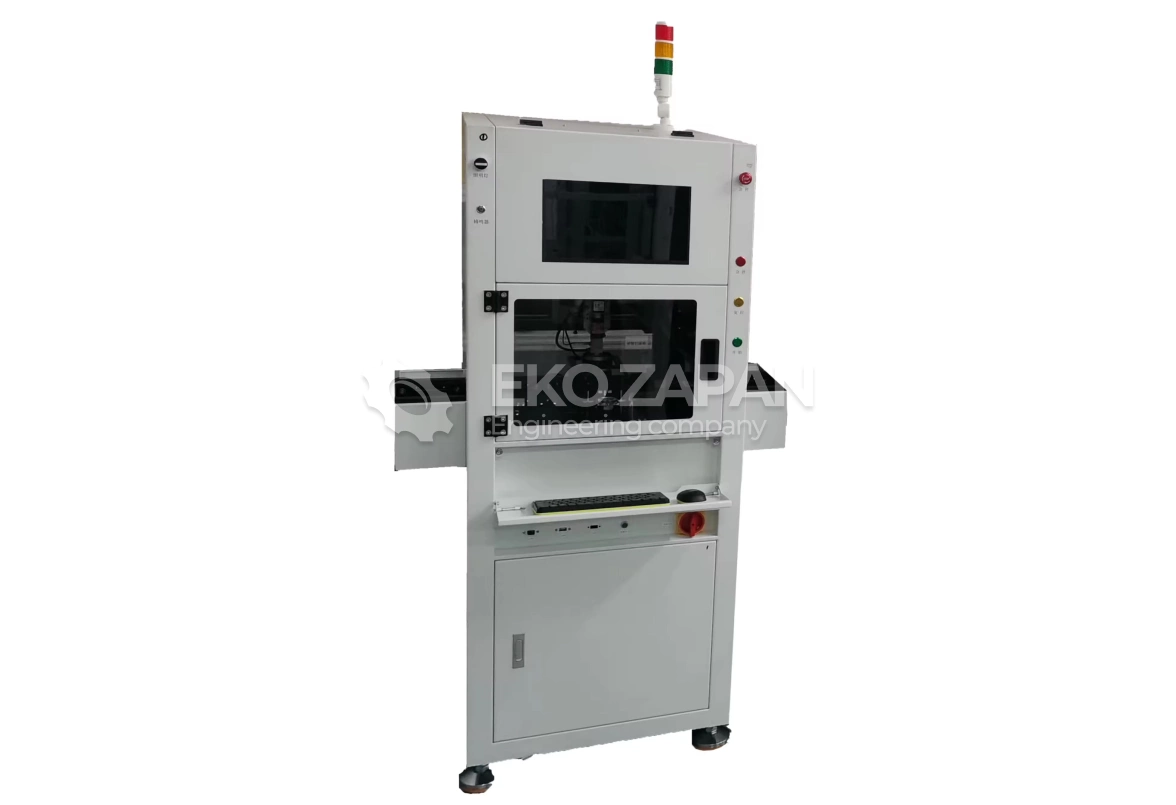

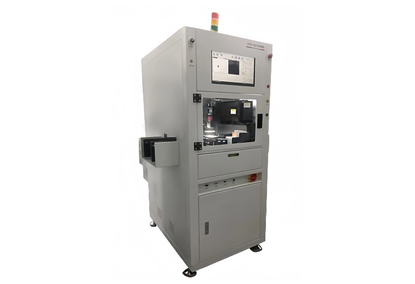

A screw machine with three axes and a track system
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 31 700
$
Article: 2381
Specifications
| Parameter | Description |
| Dimensions (L*W*H) | L920*W900*H1600MM |
| Operating range | X200*Y200*Z80MM |
| Drive model | 3-axis servo motor + linear module + assembly line |
| Positioning accuracy | ±0.01 MM |
| The operating system | Windows 10 |
| The management system | IPC+ Industrial CCD+ High-performance motion control card |
| Electric drive system | Automatic electric drive, the torque can be set and controlled |
| Programming mode | CCD mark training + CAD coordinate import ++ manual training |
| Management Interface | 14" LCD + Keyboard + Mouse |
| Number of feeding devices | 1 PC |
| The screwing time of each screw | ＜1.8S/piece (external screw specification) |
| Power supply | AC220V 50Hz |
| Air pressure | 0.5~0.7Mpa |
| Applicable screws | M1.0-M3.0 |
| Weight | 100 kg |
