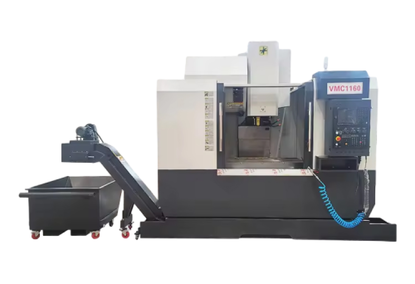

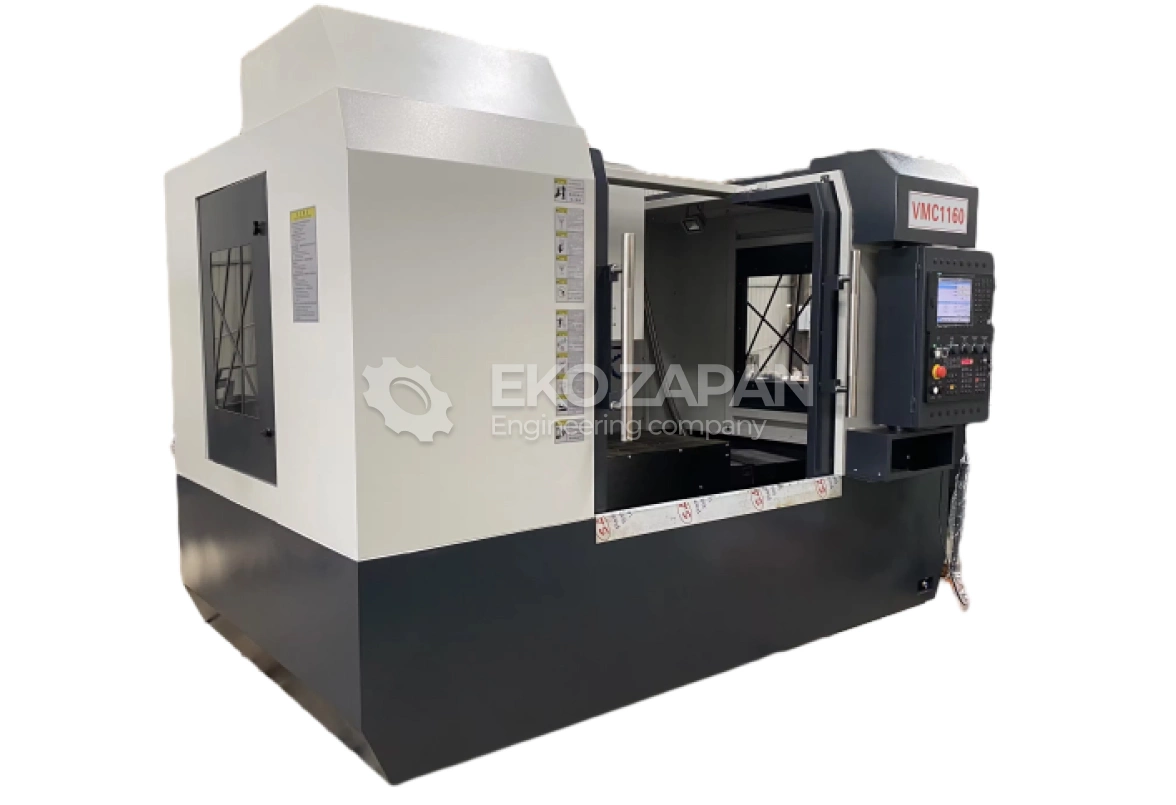

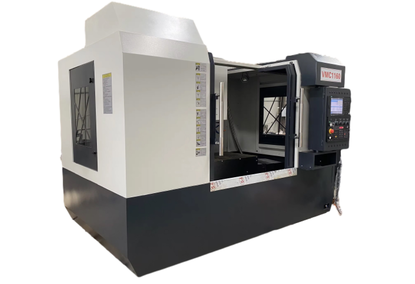

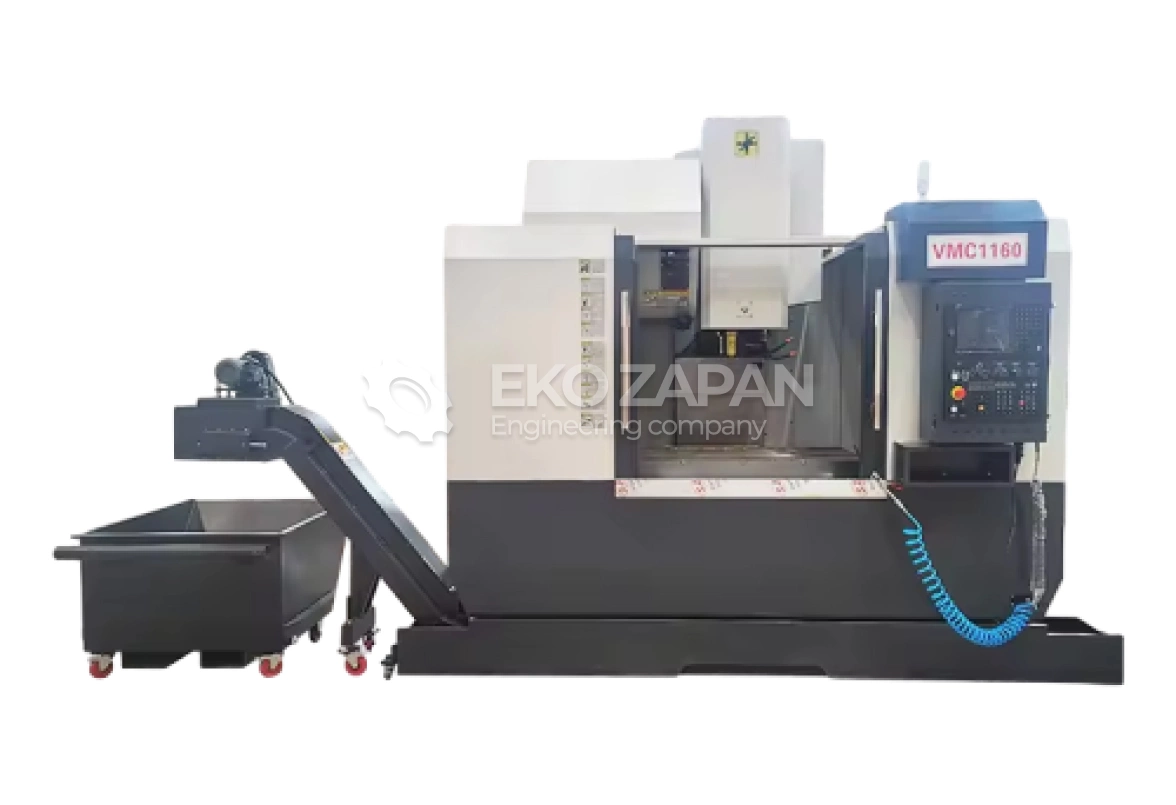

High-speed Vertical CNC machining Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 59 700
$
Article: 1411
Specifications
| Parameter | Description |
| Table size (mm) | 1200x600 |
| Number of axes | 3 |
| X-axis travel of the table (mm) | 1100 |
| Table stroke along the Y axis (mm) | 600 |
| Number of spindles | One |
| Type | Vertical |
| Weight (t) | 6.2 |
| Table stroke along the Z axis (mm) | 600 |
| Positioning accuracy (mm) | ±0.005 |
| Repeatability (X/Y/Z) (mm) | ±0.005 |
| Spindle power (kW) | 11 |
| Min. tool change time (s) | 3 |
| Tool store capacity | 24 |
| Guarantee | 1 year |
| Warranty for the main components | 1 year |
| The main components | Bearing |
| Spindle power (kW) | 11 |
| Spindle speed range (rpm) | 0 - 8000 |
| Maximum table load (kg) | 800 |
| Feed rate (mm/min) | 1 - 8000 |
| Fast moving speed (m/min) | 36 |
| Type of guides on the X/Y axes | Linear guides |
| Type of guides along the Z axis | Sliding guides |
| Balancing method | Heavy Casting Parts |
| Linear guides and a ball screw pair | Taiwanese HIWIN |
| Certification | ISO CE |
4.9
5
