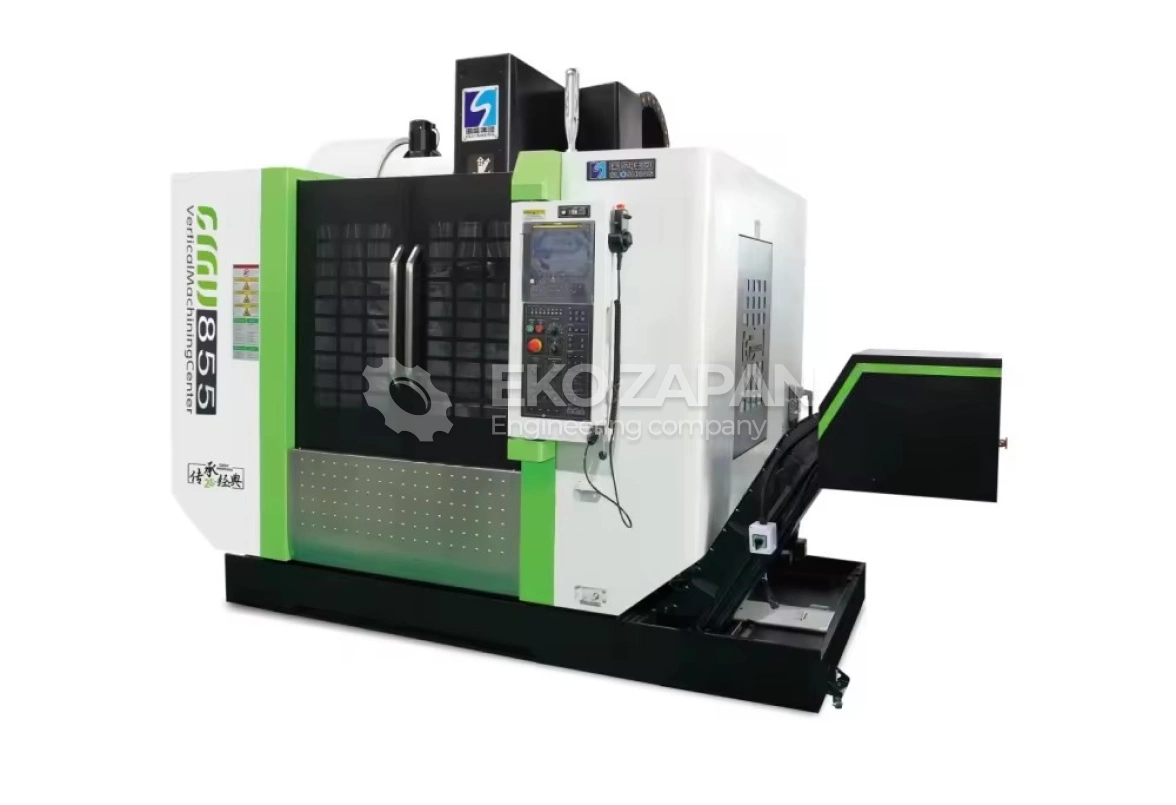

High Precision Vertical CNC Milling Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 64 500
$
Article: 1422
Specifications
| Parameter | Description |
| Table size (mm) | 1000*500 |
| Number of axes | 4 |
| Table stroke (X) (mm) | 850 |
| Table stroke (Y) (mm) | 550 |
| Number of spindles | One |
| Type | Vertical |
| Weight (t) | 5.4 t |
| Table stroke (Z) (mm) | 550 |
| Positioning accuracy (mm) | 0.008 |
| Repeatability (X/Y/Z) (mm) | 0.005 |
| Spindle power (kW) | 11/15 |
| Min. tool change time (s) | 2 |
| Guarantee | 1 year |
| Warranty on the main components | 1 year |
| The main components | The motor |
| Dimensions (L*W*H) | 2700*2400*2850 mm |
| CNC control system | FANUC, MITSUBISHI, Siemens, can be customized |
| Spindle rotation speed range (rpm) | 10 - 8000 rpm |
| Maximum table load (kg) | 500 kg |
| Feed rate (mm/min) | 1 - 10000 mm/min |
| Fast feed rate (m/min) | 36/36/24 |
| Voltage | 220/380V, 50Hz |
| Spindle speed | 8000 rpm |
| Spindle cone | BT40 |
| Specification of the nail pattern | P50T-1-MAS403(45°) |
| Spindle power | 11/15 kW |
| Maximum spindle torque | 52.5/95.5 Nm |
| Maximum desktop load | 700 mm |
| Width of the T-slot | 5-18*80mm |
