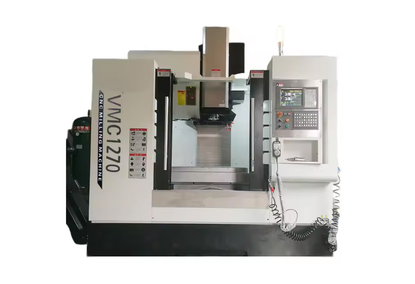

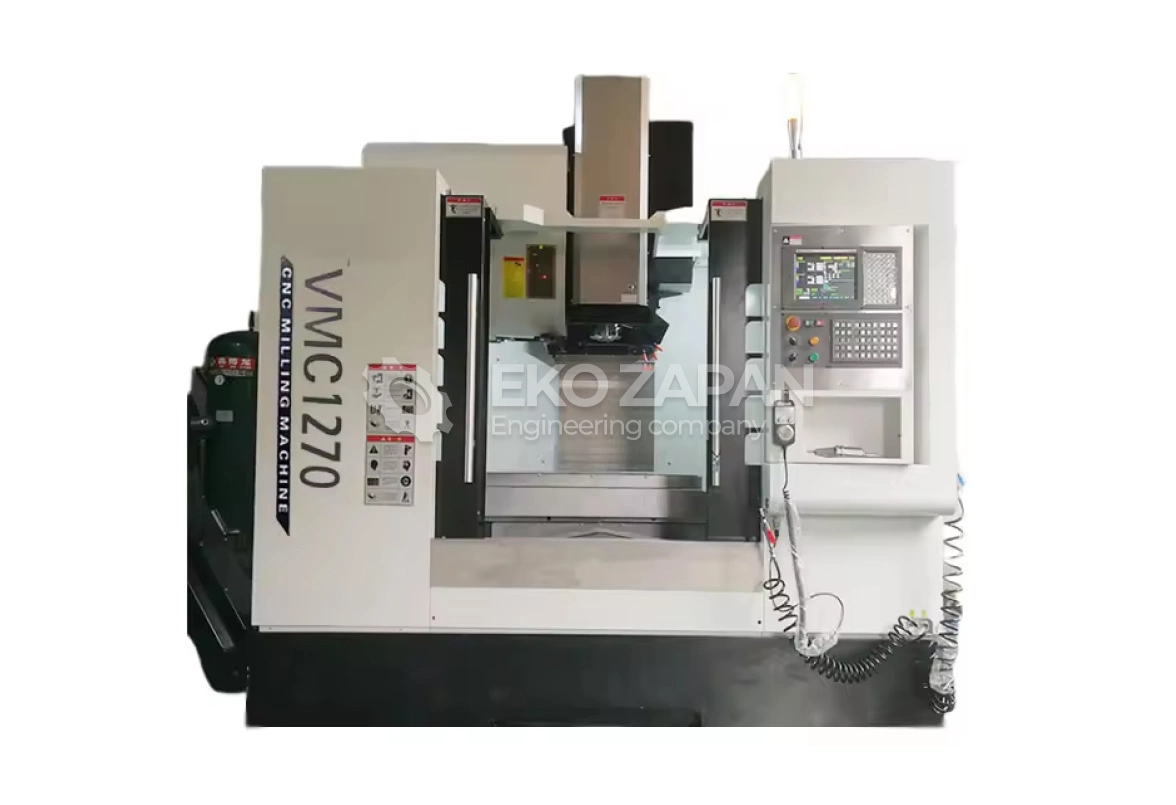

Vertical CNC Milling Machine with 5 Axes and Automatic Tool Change
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 37 600
$
Article: 1407
Specifications
| Parameter | Description |
| Table size (mm) | 1400*700 |
| Number of axes | 3, 4, 5, 7 |
| Table stroke (X) (mm) | 1300 |
| Table stroke (Y) (mm) | 700 |
| Number of spindles | One |
| Type | Vertical |
| Weight (t) | 8.2 T |
| Table stroke (Z) (mm) | 700 |
| Positioning accuracy (mm) | ±0.005/300mm |
| Repeatability (X/Y/Z) (mm) | ±0.003mm |
| Spindle power (kW) | 15-18 |
| Min. tool change time (s) | 2 |
| Tool store capacity | 16, 24, 32 |
| Guarantee | 3 years old |
| Warranty for the main components | 3 years old |
| The main components | PLC |
| Spindle cone | BT40 (optional BT50) |
| Dimensions (L*W*H) | 3550*2600*3000 mm |
| CNC control system | GSK, FANUC, KND, Siemens |
| Spindle speed range (rpm) | 1 - 8000 rpm |
| Maximum table load (kg) | 1200 kg |
| Feed rate (mm/min) | 1 - 10000 mm/min |
| Maximum speed of rapid movement (m/min) | 24/24/20 |
| Voltage | Three-phase variable 380V±10% |
| Fast movement along the X/Y/Z axes | 30/30/20 per minute |
| Spindle diameter | 155 mm |
| The inner diameter of the main bearing | 770 mm |
| The distance from the spindle to the table surface | 100-800 mm |
