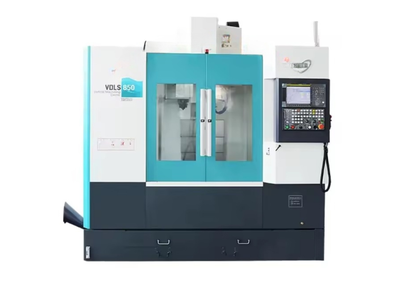

Vertical CNC Milling and Drilling Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 41 200
$
Article: 1425
Specifications
| Parameter | Description |
| Table size (mm) | 1000*500 |
| Number of axes | 3, 4, 5 |
| Table stroke (X) (mm) | 860 |
| Table stroke (Y) (mm) | 510 |
| Number of spindles | One |
| Type | Vertical |
| Weight (t) | 5.6 t |
| Table stroke (Z) (mm) | 560 mm |
| Positioning accuracy (mm) | 0.008 |
| Repeatability (X/Y/Z) (mm) | 0.005 |
| Spindle power (kW) | 7.5/11 |
| Min. tool change time (s) | 2 |
| Tool store capacity | 24 |
| Guarantee | 1 year |
| Warranty for the main components | 1 year |
| The main components | The motor |
| Spindle cone | BT40 |
| Dimensions (L*W*H) | 2496*2530*2679 mm |
| CNC control system | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Spindle rotation speed range (rpm) | 0 - 12000 rpm |
| Maximum table load (kg) | 500 kg |
| Feed rate (mm/min) | 0 - 10000 mm/min |
| Fast feed rate (m/min) | 10000 |
| Voltage | 380V 50Hz |
| Accuracy | 0.008mm High Precision CNC Lathe |
| Linear guides | Box guides |
