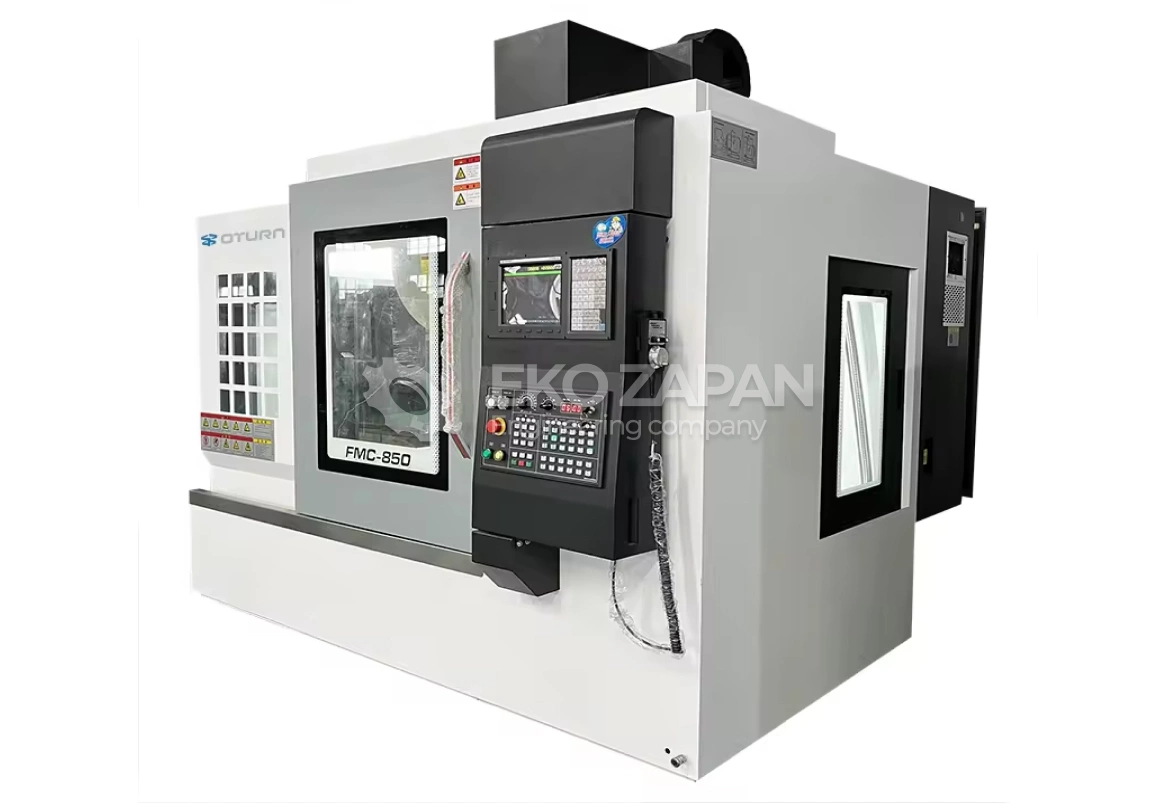

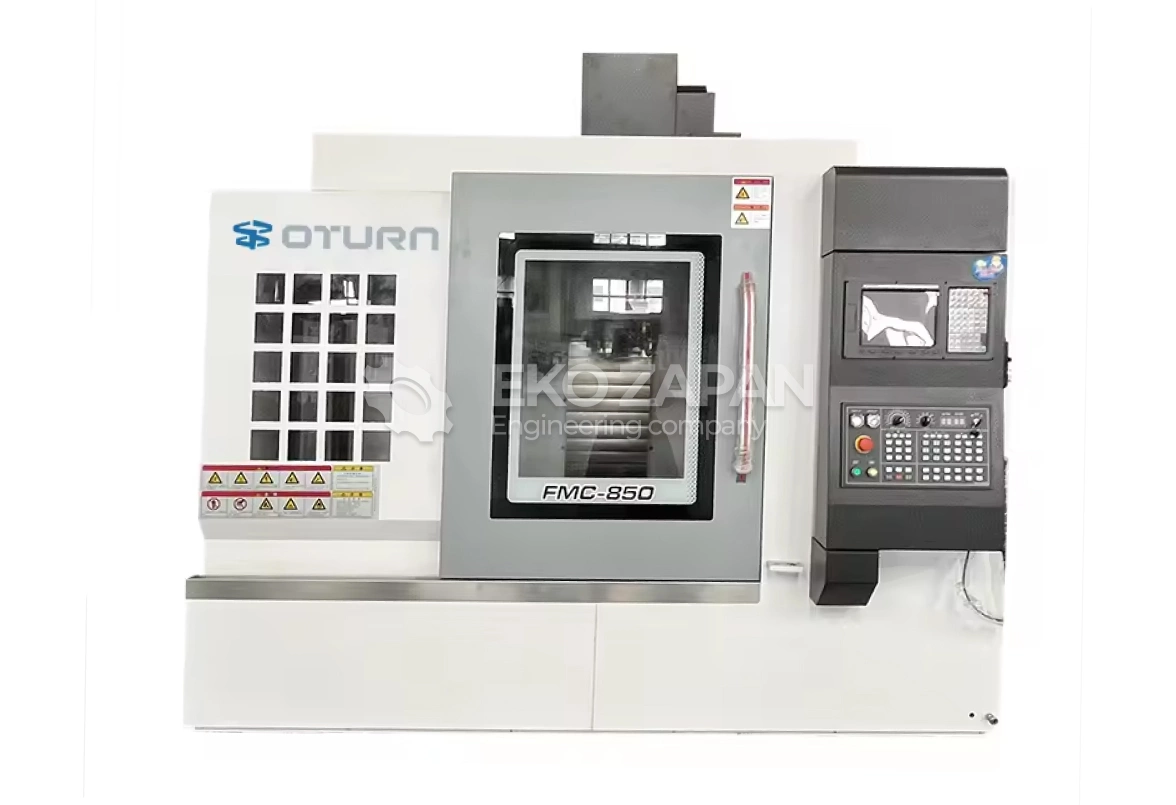

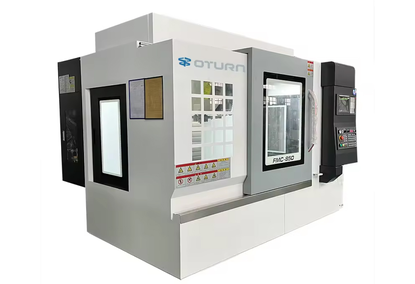

Vertical CNC Milling Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 45 700
$
Article: 1416
Specifications
| Parameter | Description |
| Table size (mm) | 1000x500 |
| Number of axes | 3, 5 |
| Table stroke (X) (mm) | 800 |
| Table stroke (Y) (mm) | 500 |
| Number of spindles | one |
| Weight (t) | 5.3 t |
| Table stroke (Z) (mm) | 500 |
| Positioning accuracy (mm) | ±0.003 |
| Repeatability (X/Y/Z) (mm) | ±0.002 |
| Spindle power (kW) | 11/15 |
| Min. tool change time (s) | 1 |
| Tool store capacity | 24, 32, 40 |
| Guarantee | 1 year |
| Warranty for the main components | 1 year |
| The main components | Bearing |
| Spindle cone | BT40 |
| Dimensions (L*W*H) | 2700*2400*2600 |
| CNC control system | GSK, FANUC, MITSUBISHI, Siemens |
| Spindle rotation speed range (rpm) | 8000 - 12000 rpm |
| Maximum table load (kg) | 500 kg |
| Feed rate (mm/min) | 4000 - 4800 mm/min |
| Fast feed rate (m/min) | 1-10000 |
| Voltage | 380V |
| Colour | To order |
| Control mode | Fanuc Mitsubishi Siemens Gsk Control System |
