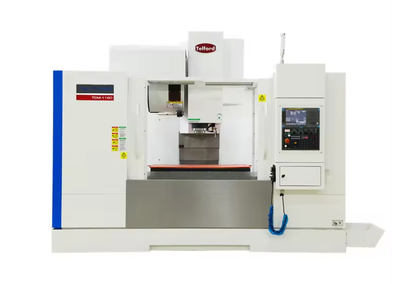

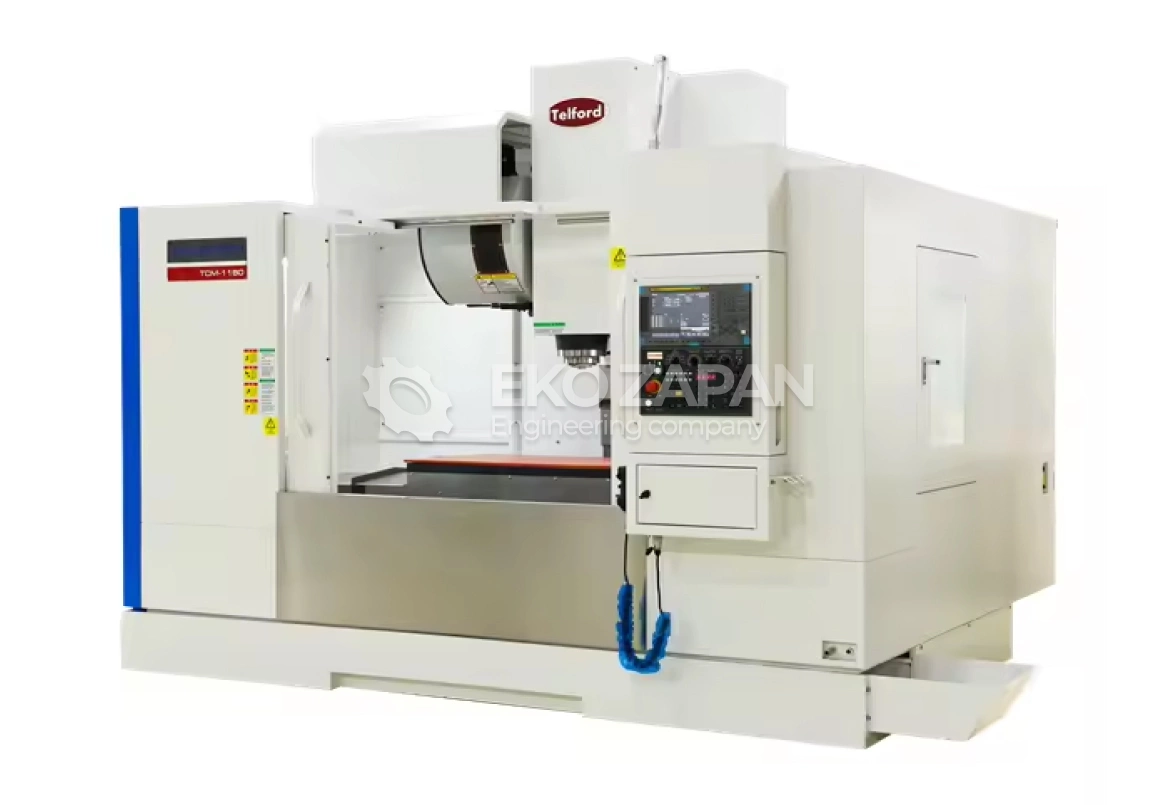

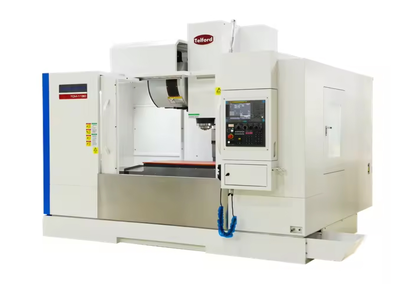

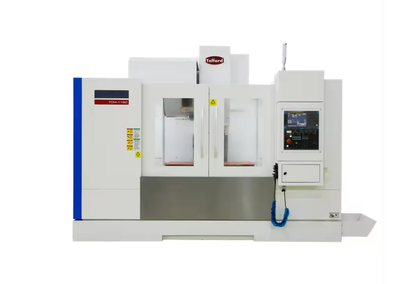

Small Size CNC Milling Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 43 000
$
Article: 1403
Specifications
| Parameter | Description |
| Table size (mm) | 800*400 |
| Number of axes | 3 |
| Table stroke (X) (mm) | 650 |
| Table stroke (Y) (mm) | 450 |
| Number of spindles | Single |
| Type | Vertical |
| Weight (t) | 4.3 t |
| Table stroke (Z) (mm) | 500 |
| Positioning accuracy (mm) | ±0.003 mm/300 mm |
| Repeatability (X/Y/Z) (mm) | ±0.003 mm |
| Spindle power (kW) | 7.5/11 |
| Min. tool change time (s) | 2 |
| Tool store capacity | 16 |
| Guarantee | 1 year |
| Warranty for the main components | 1 year |
| The main components | PLC |
| Spindle cone | BT-40 |
| Dimensions (L*W*H) | 2300*1900*2100 |
| CNC control system | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Spindle speed range (rpm) | 1 - 10000 rpm |
| Max. table load (kg) | 400 kg |
| Feed rate (mm/min) | 1 - 10000 mm/min |
| Fast moving speed (m/min) | 36 |
| X-axis travel | 650 |
| Y-axis stroke | 450 |
| Z-axis travel | 500 |
| Spindle cone | BT40 |
| CNC control system | GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM |
