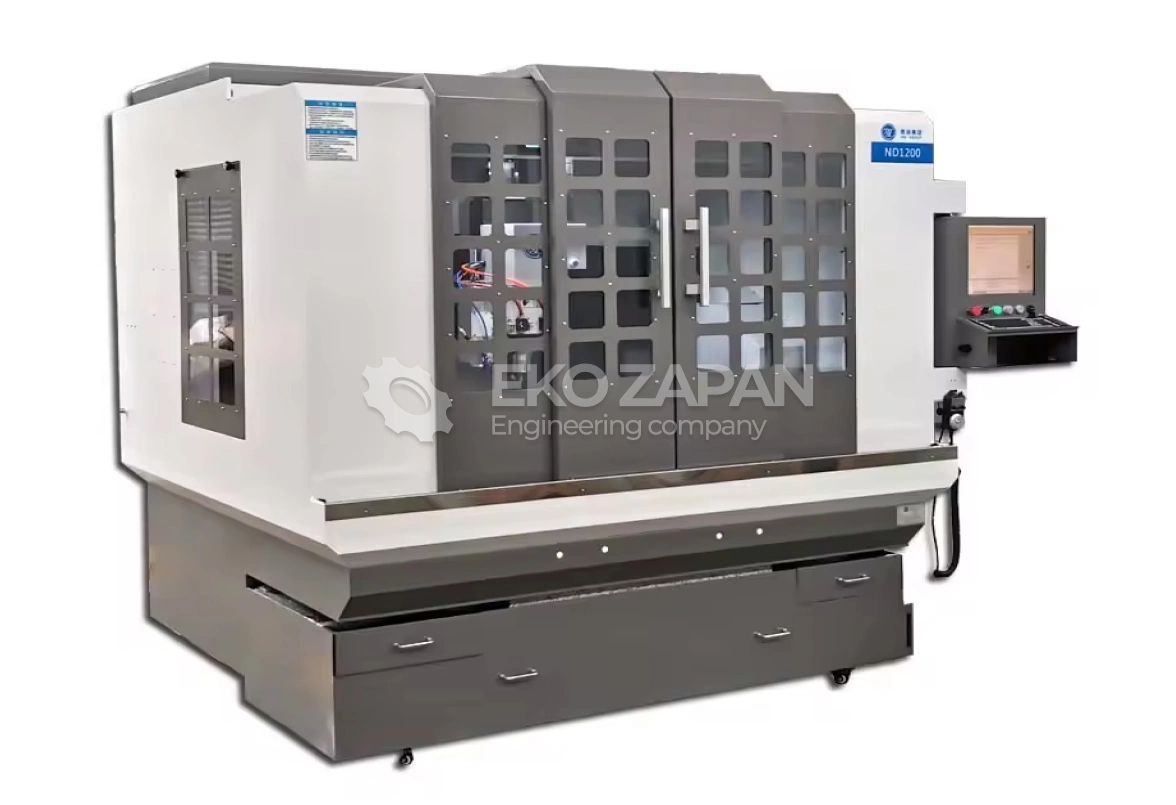

CNC Milling Machine for metal with full protection
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 90 100
$
Article: 1402
Specifications
| Parameter | Description |
| Warranty for the main components | 13 months |
| The main components | Engine, Motor, Gear, Pump |
| Guarantee | 13 months |
| Weight (kg) | 4600 |
| Rated power | 10 kW |
| Engraving speed | 15 m/min |
| The rotation speed of the main shaft | 10000~36000 rpm |
| Feed height | 150 mm |
| Milling cutter diameter | 1~16mm |
| Application | Cutting, milling, engraving, etc. |
| Dimensions | 1200*800 mm |
| Material | Brass, aluminum, zinc, magnesium, stainless steel, carbon steel, etc. |
| Spindle power | 6 kW |
| Repeatability of positioning | 0.005 mm |
| X/Y/Z axis travel | 1200*800*150 mm |
| Rated power on the X/Y/Z axes | 850/850/850 W |
| Voltage | AC380v 50Hz |
| Working area | 1200*800 mm |
| The servo system | Japanese Panasonic servo system |
