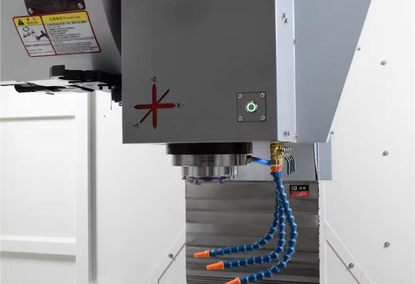

5-axis CNC milling machine

Why Choose Us?

From 11 900 $

Article: 1487

Specifications

Type	Vertical
Weight (T)	5 T
Travel table (Z) (mm)	500
Positioning accuracy (mm)	0,005
Repeatability (X/Y/Z) (mm)	0,005
Spindle motor power (kW)	7,5
Mines. Tool Change Time(s)	2
Tool store capacity	24
Key points of sale	Precision linear guide
Warranty	1 year
Origin of the product	Shandong, China
Applicable industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Printing, Energy & Mining
Warranty of the main components	1 year
The main components	Numerical control system
Spindle cone	BT40
Size (LWH)	270025002800

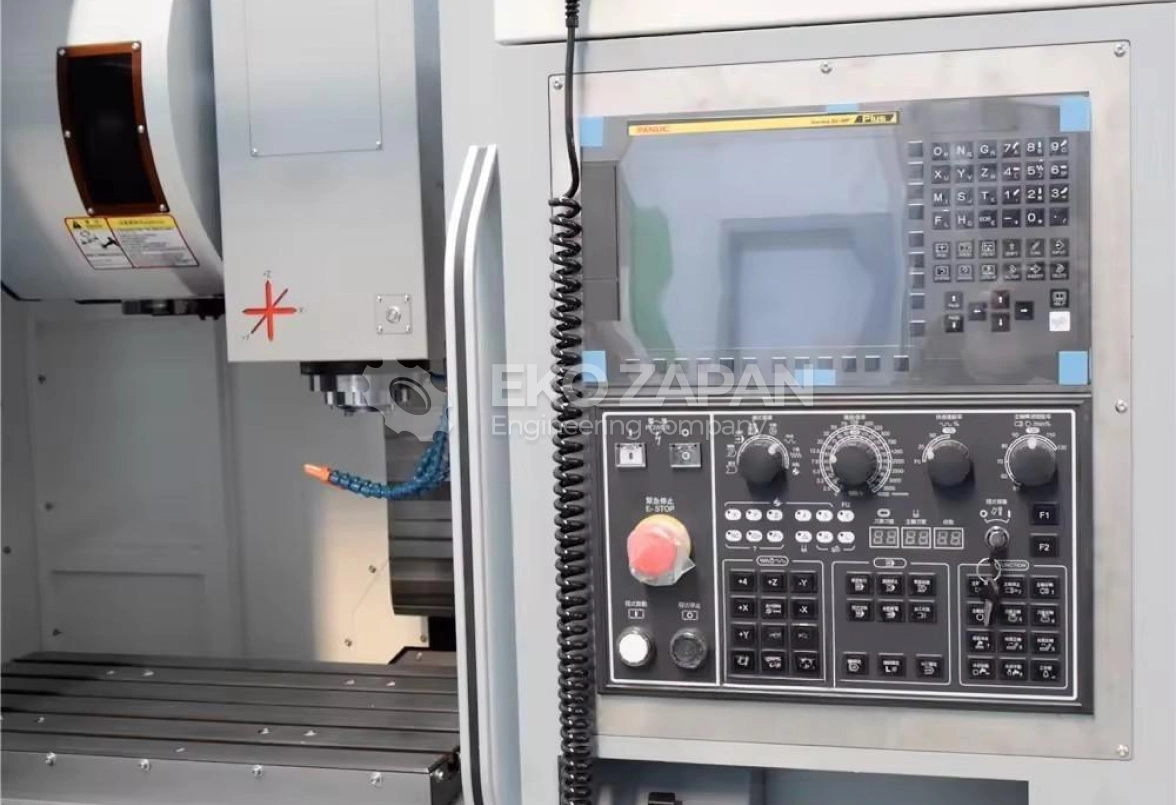

CNC control systems	GSK, FANUC, KND, Siemens
Spindle rotation speed range (rpm)	0 - 10000 rpm
Maximum table load (kg)	600 kg
Feed rate (mm/min)	0 - 10000 mm/min
Fast feed rate (m/min)	24
Name	HUA SHUO
Voltage	380 V

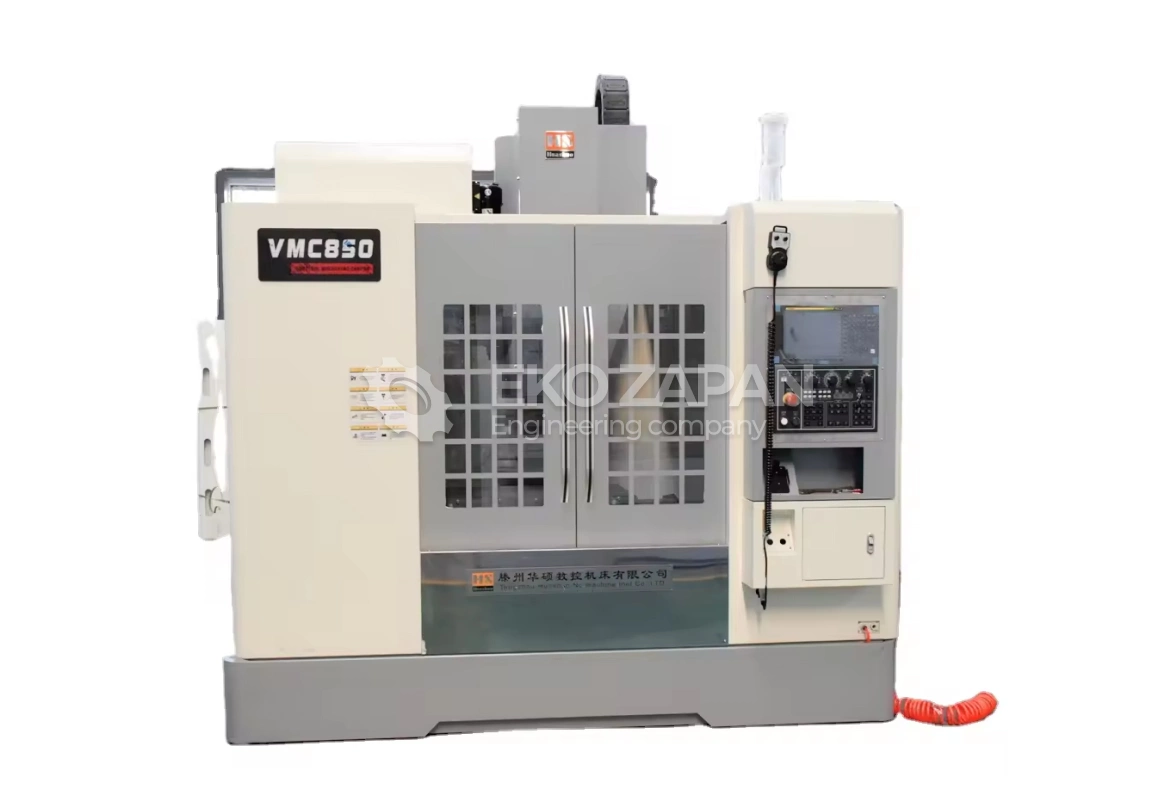

Type of machine	CNC vertical machining center
Product Name	3-axis vertical CNC machining center
Application	Processing of common equipment
Product Type	3 axis CNC Machine
Providing after-sales service	Video technical support
Keywords	VMC Machine Center
Processing	Metalworking on a CNC milling machine
Colour	At the request of the client
The key word	CNC vertical machining center
Control mode	CNC system
