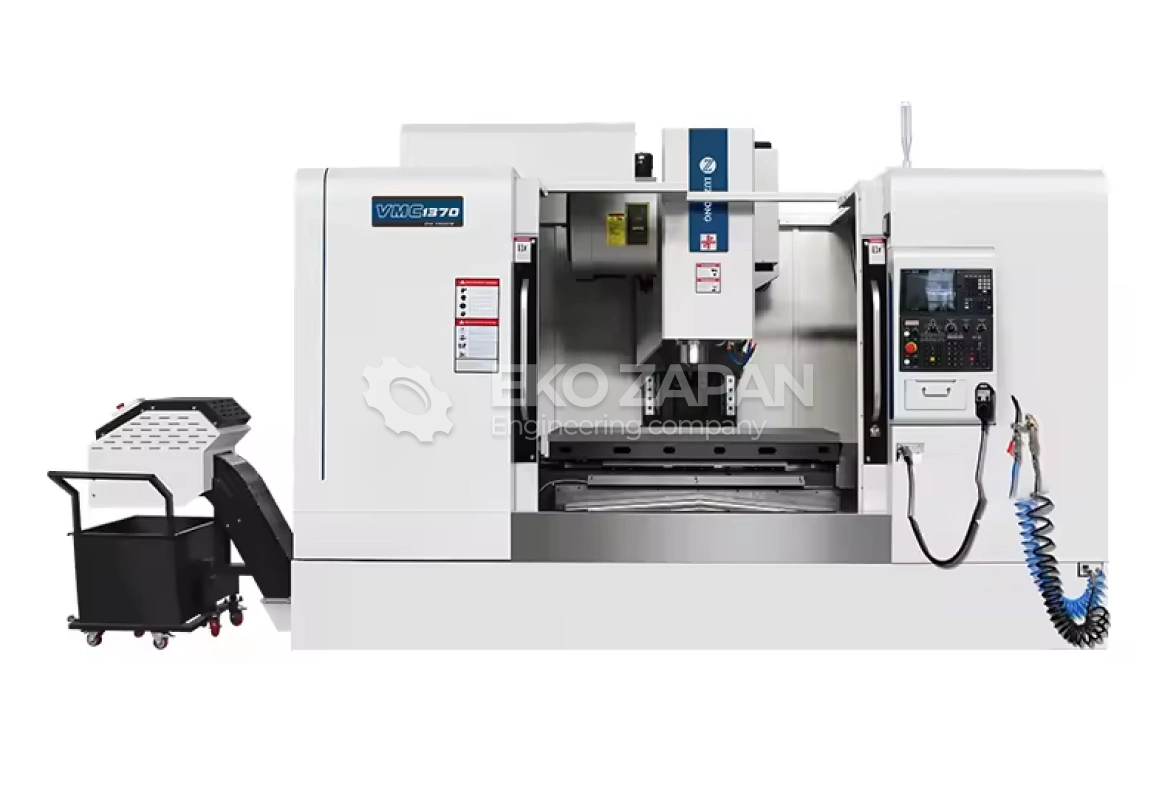

5-axis CNC milling machine for metal

Why Choose Us?

From 37 000 $

Article: 1470

Specifications

Condition	New
No. Spindles	Single
Type	Vertical
Weight (T)	8.2 Tons
Travel table (Z) (mm)	700
Positioning accuracy (mm)	± 0.005/300 mm
Repeatability (X/Y/Z) (mm)	± 0.003 mm
Spindle motor power (kW)	15-18
Mines. Tool Change Time(s)	2
Tool store capacity	16, 24, 32
Key points of sale	High accuracy
Warranty	3 years old
Origin of the product	Shandong, China
Applicable industries	Building materials shops, Machinery repair shops, Manufacturing plant, Farms, For home use, Retail, Printing houses, Construction works, Energy and mining, Advertising company
Showroom location	No
Type Marketing	2024 new product
Production Equipment Test Report	On condition
Video OUTGOING-inspection	On condition
Warranty of the main components	3 years old
The main components	PLC
Spindle cone	BT40 (optional BT50)
Size (LWH)	355026003000 mm
CNC control system	GSK, FANUC, KND, Siemens
Spindle rotation speed range (rpm)	1 - 8000 rpm
Maximum table load (kg)	1200 kg
Feed rate (mm/min)	1 - 10000 mm/min
Name	Shandong Yi Jin numerical control
Voltage	Three-phase AC380V ± 10%
CNC or not	CNC
Accuracy	High precision machine
The X/Y/Z axis is moving fast	30/30/20 m/min
Spindle diameter	155 mm
The inner diameter of the main shaft bearing	770 mm
The nose of the spindle to the table surface	100-800 mm
Keywords	Vmc Machine Center
Product Name	Vertical CNC Machining Center
Application	Metal processing
Type of machine	Vertical CNC Milling Machine
