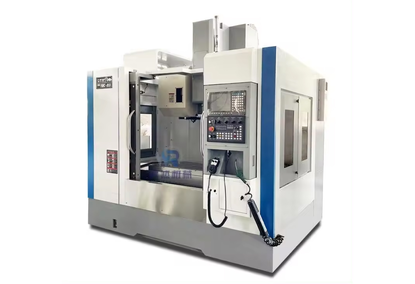

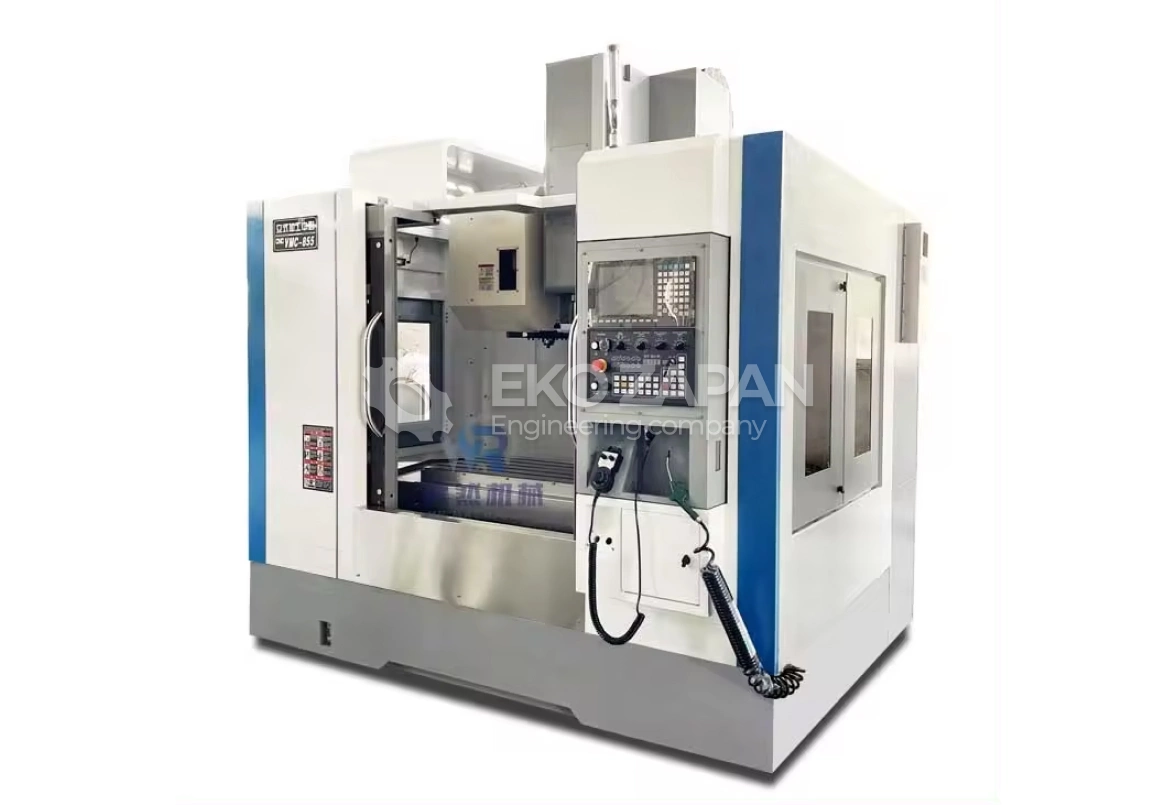

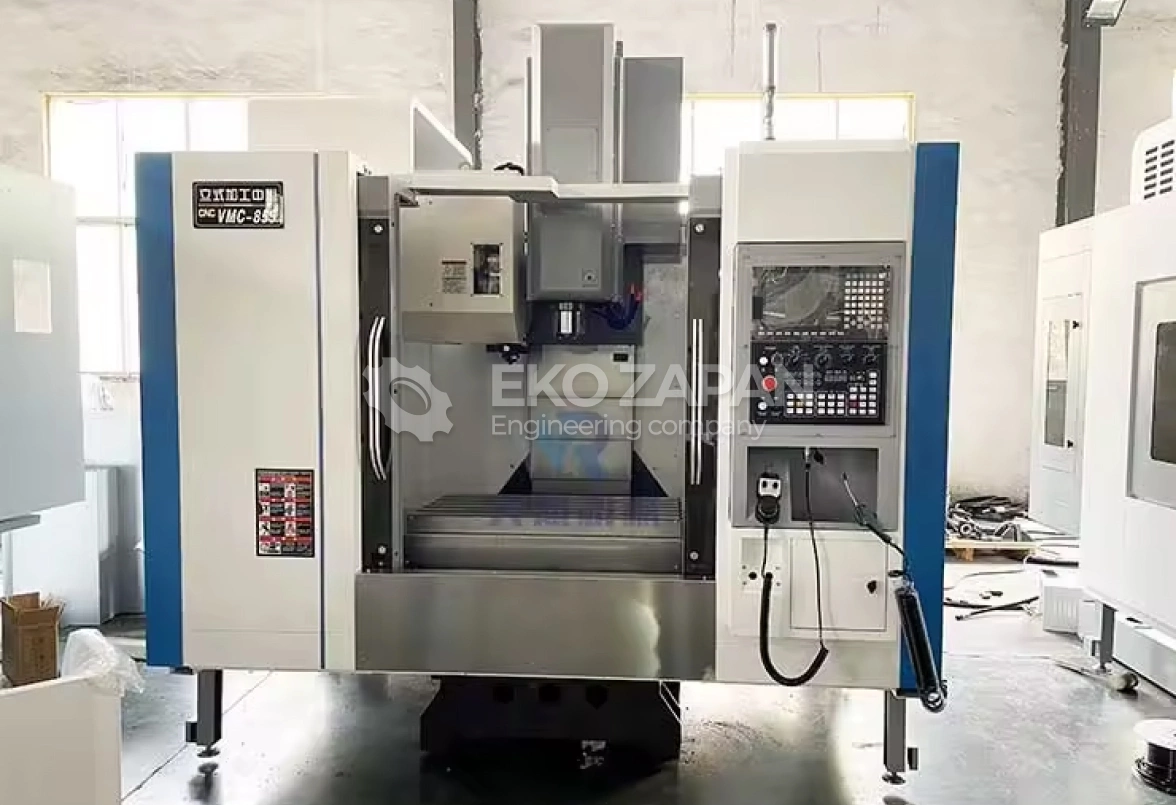

3-axis vertical CNC milling machine

Why Choose Us?

From 25 100 $

Article: 1466

Specifications

Condition	New
No. Spindles	Single
Type	Vertical
Weight (T)	5,3 T
Travel table (Z) (mm)	550
Positioning accuracy (mm)	± 0,01
Repeatability (X/Y/Z) (mm)	± 0,005
Spindle motor power (kW)	7,5
Mines. Tool Change Time(s)	6

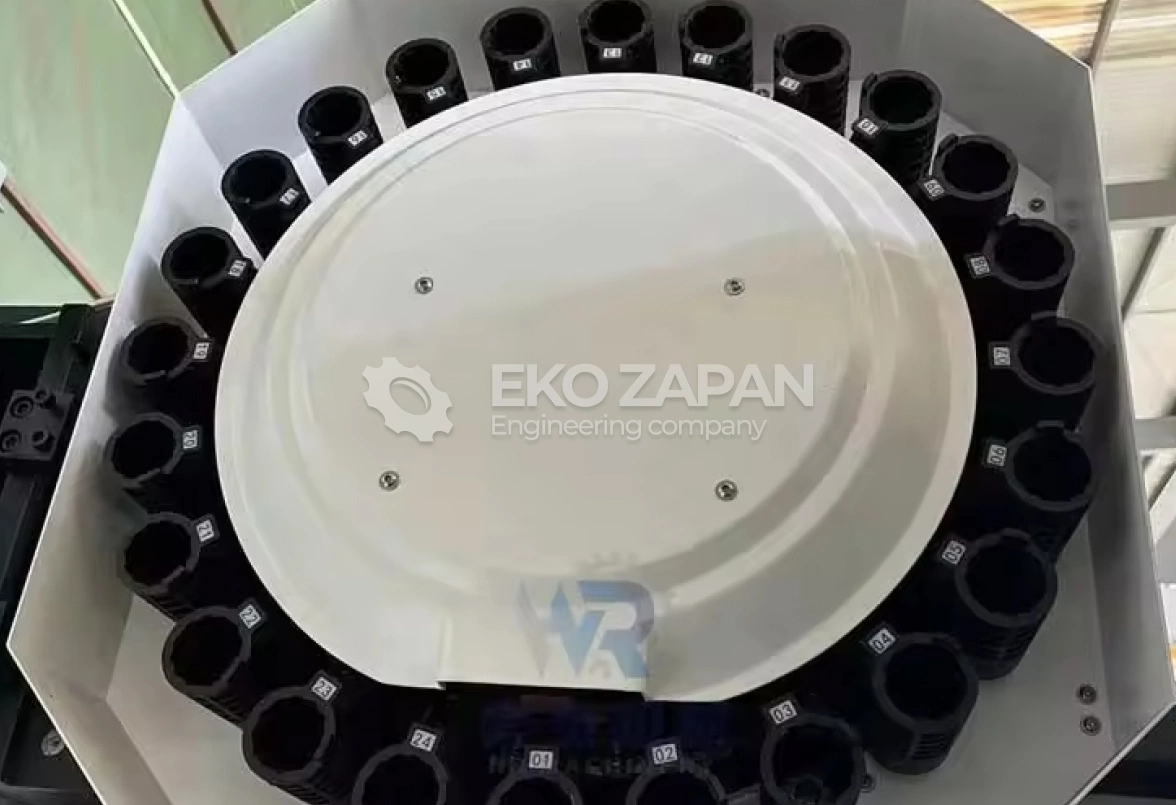

Tool store capacity	Others, 16, 24
Key points of sale	High accuracy
Warranty	2 years
Origin of the product	Shandong, China
Applicable industries	Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plant, Construction Works, Energy & Mining, Others, Advertising Company, Other
Showroom location	No
Type Marketing	Other
Production Equipment Test Report	On condition
Video OUTGOING-inspection	On condition
Warranty of the main components	2 years
The main components	Engine
Spindle cone	BT40
Size (LWH)	260023002300
CNC control systems	GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM
Spindle rotation speed range (RPM)	8000 - 10000 r.p.m
Maximum table load (kg)	500 kg
Fast feed rate (m/min)	24
Name	HR
Voltage	380 V 50 Hz/220 V 60 Hz
Model	Vmc855
Table size (mm)	800*550
Max. Permissible load (kg)	500
X-axis stroke (mm)	800
Y-axis travel (mm)	550
Z-axis travel (mm)	550
T-slot	5-18-108
Spindle end to the work table (mm)	BT40-140
Fast X/Y/Z movement (m/min)	48/48/48
Spindle rotation speed (r/min)	8000
