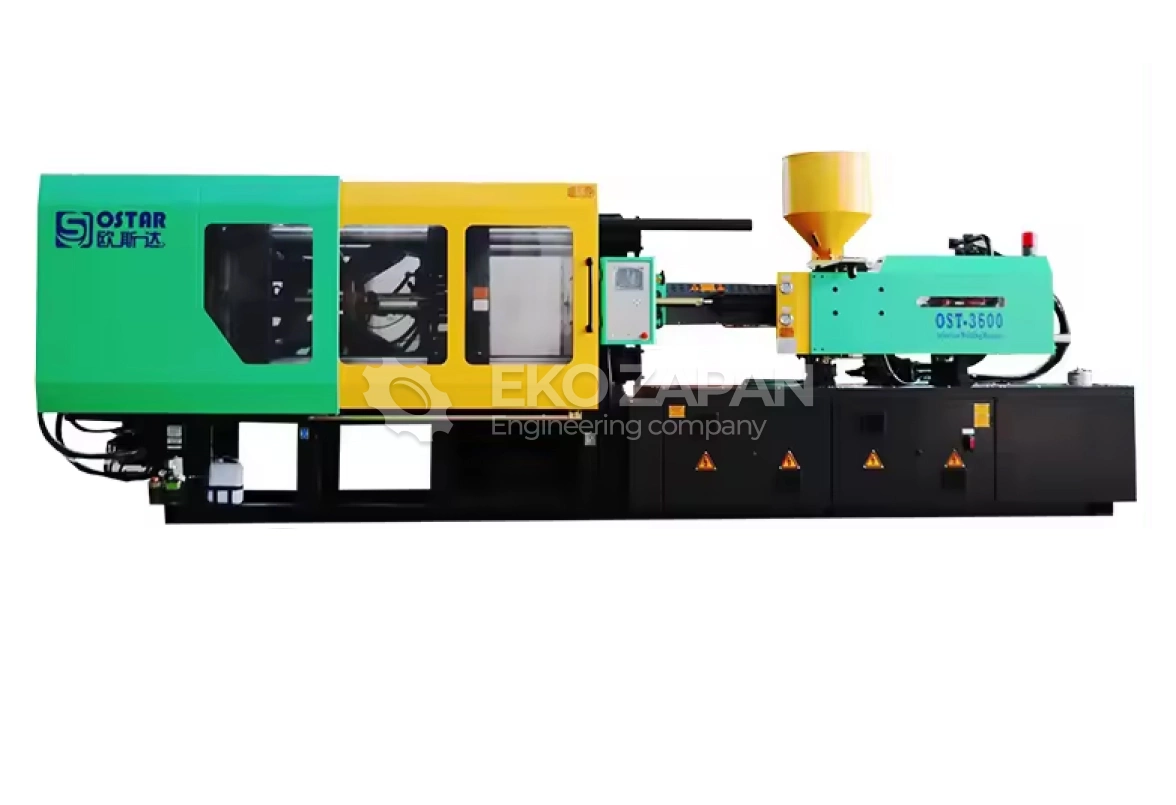

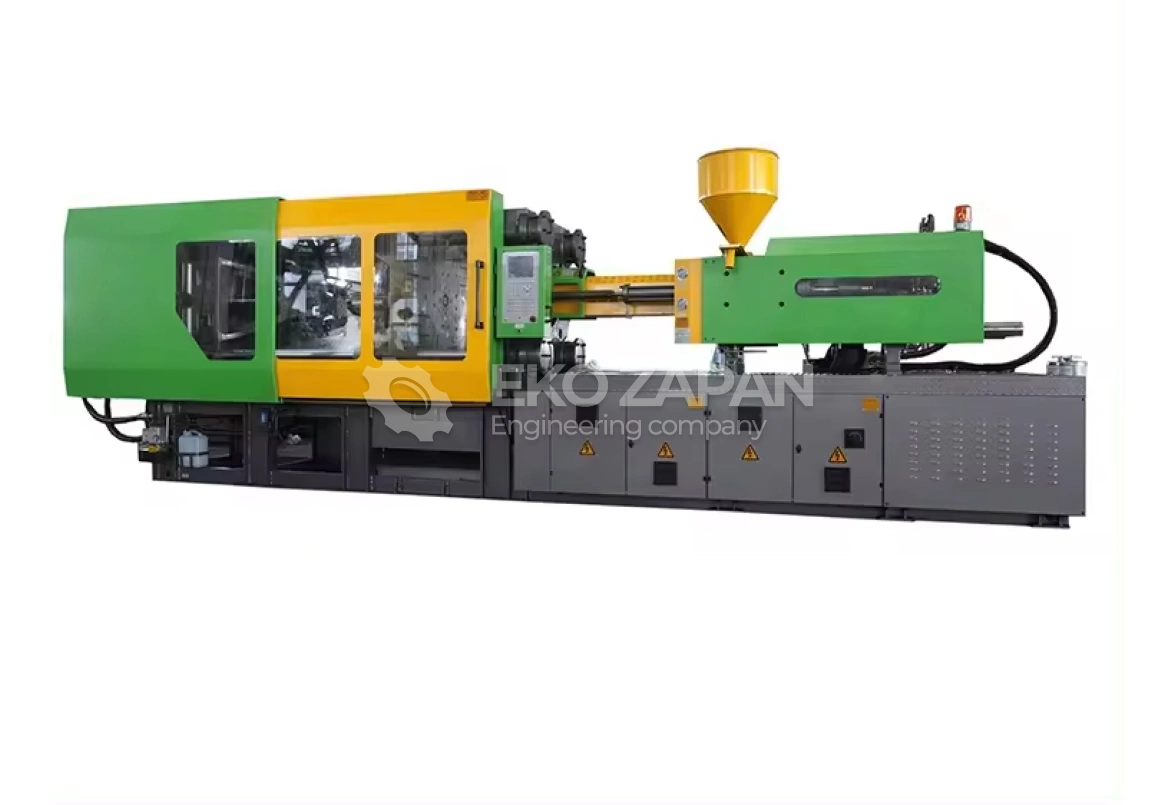

Injection Molding Machine for Thermoplastic Disposable Cups
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 64 500
$
Article: 2410
Specifications
| Parameter | Description |
| Style | Horizontal |
| Injection rate (g/s) | 301 g/s |
| Type of machine | Hydraulic |
| Injection weight (g) | 1190 g |
| Weight (kg) | 13,000 kg |
| The main components | Motor, Pump, PLC, Screw |
| Processed plastic | ABS, ABS/PP, FRPP/PVC, HDPE, HDPE/PP, LDPE, PE/PP, PET, PP, PPR, PVC, others |
| Plasticizing capacity (g/s) | 39.8 g/s |
| Shape height (mm) | 280 - 680 mm |
| Number of ejectors | 13 |
| Ejector stroke (mm) | 180 mm |
| Ejector force (kN) | 110 kN |
| Theoretical volume of the shot (cm3) | 1307 cm3 |
| Screw speed (rpm) | 1 - 140 rpm |
| Screw diameter (mm) | 70 mm |
| Screw length to diameter ratio (L/D) | 21.6 |
| The distance between the ties | 680*680 mm |
| Opening stroke (mm) | 660 mm |
| Power (kW) | 29 kW |
| Function | Machine for the production of thin-walled food containers |
| Cycle time | 4-5 seconds |
| Injection pressure | 16 MPa |
| Number of container cavities | 2-8 cavities |
| Voltage | 380V/ 50Hz 3P+N+E (changeable) |
| Energy saving | Yes |
