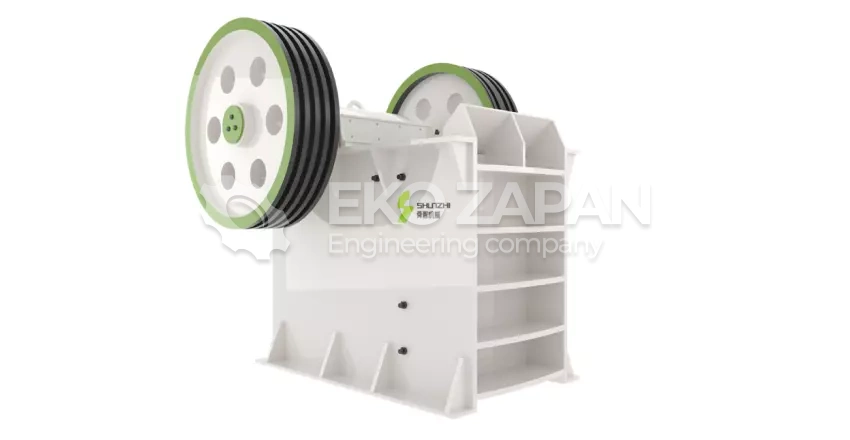

PE Series Jaw Crusher

Zapan Stone Machinery LTD. Co.

Web-site: http://chinashunzhi.com

Email: anna@chinashunzhi.com

Tel.number: +8619036934681

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

Direct connection with the manufacturer

From 4 200 $

Article: 2697

It may take some time for a response.

Specifications

The PE series of jaw crushers is a high-performance equipment developed by our company based on advanced domestic and foreign technologies. This series of jaw crushers has a rational and compact structural design that ensures high efficiency. The integrated motor frame allows the motor to be mounted in the rear of the crusher, which guarantees optimal belt tension. Choosing a solid base simplifies and speeds up the installation process.

Model	Input material size (mm)	Max. input material size (mm)	Output adjustment range (mm)	Capacity (t/h)	Power (kW)	Weight (t)
PE250x400	250x400	210	20-60	5-20	15	2.8
PE400x600	400x600	340	40-100	16-60	30	6.65
PE500x750	500x750	425	50-100	40-110	55	11.73
PE600x900	600x900	500	65-180	80-180	55-75	16.13
PE750x1060	750x1060	630	80-180	110-320	90-110	30
PE900x1200	900x1200	780	95-225	220-450	110-132	49
PE1000x1200	1000x1200	850	195-280	280-550	110-132	51
PE1200x1500	1200x1500	1020	150-300	400-800	160-220	109
PEX150x750	150x750	120	8-48	8-25	15	3.5
PEX250x750	250x750	210	20-50	13-35	30	4.96
PEX250x1000	250x1000	210	25-60	16-52	30-37	6.5
PEX250x1200	250x1200	210	25-60	20-61	37-45	8.8
PEX300x1300	300x1300	250	20-90	25-95	55-75	12.67
