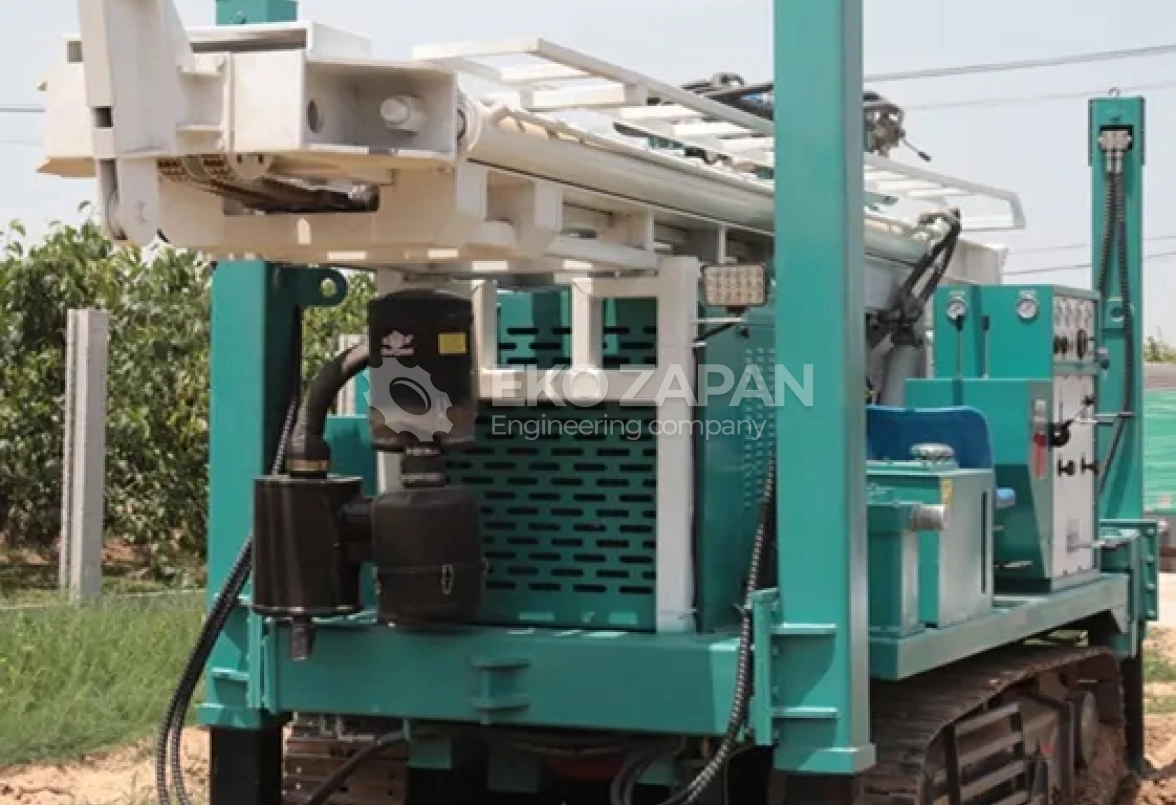

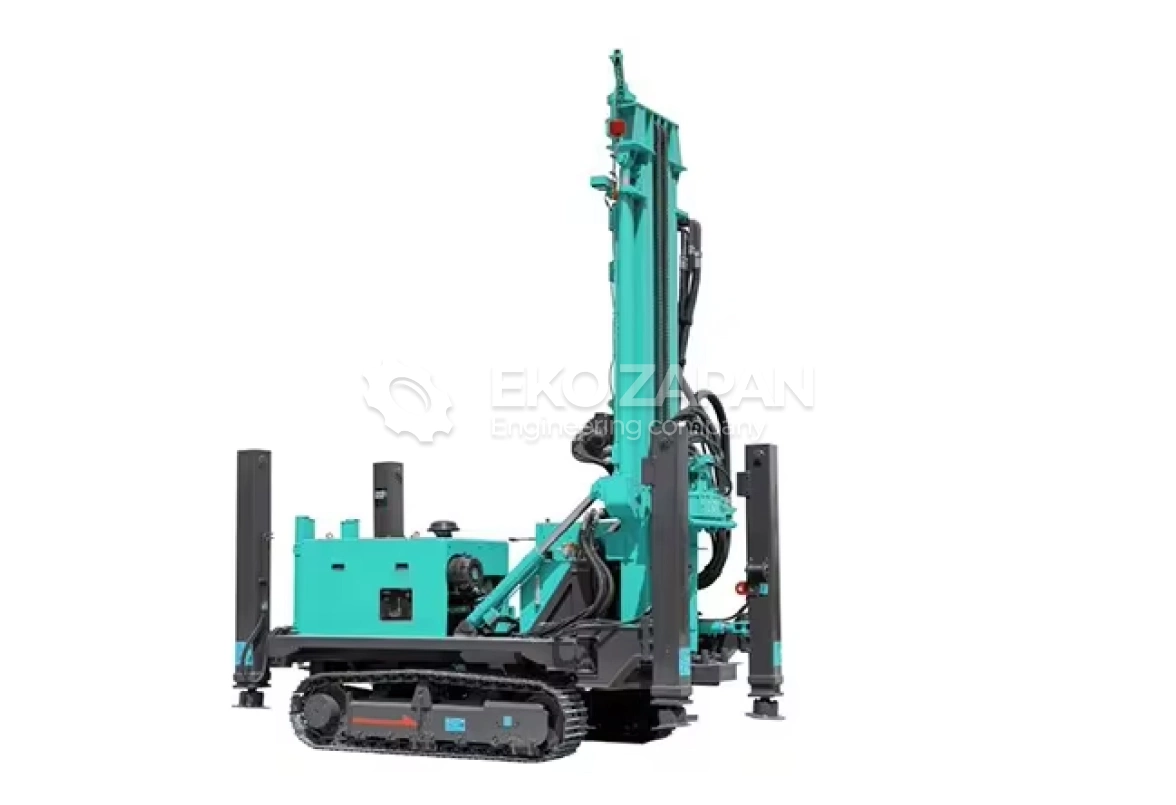

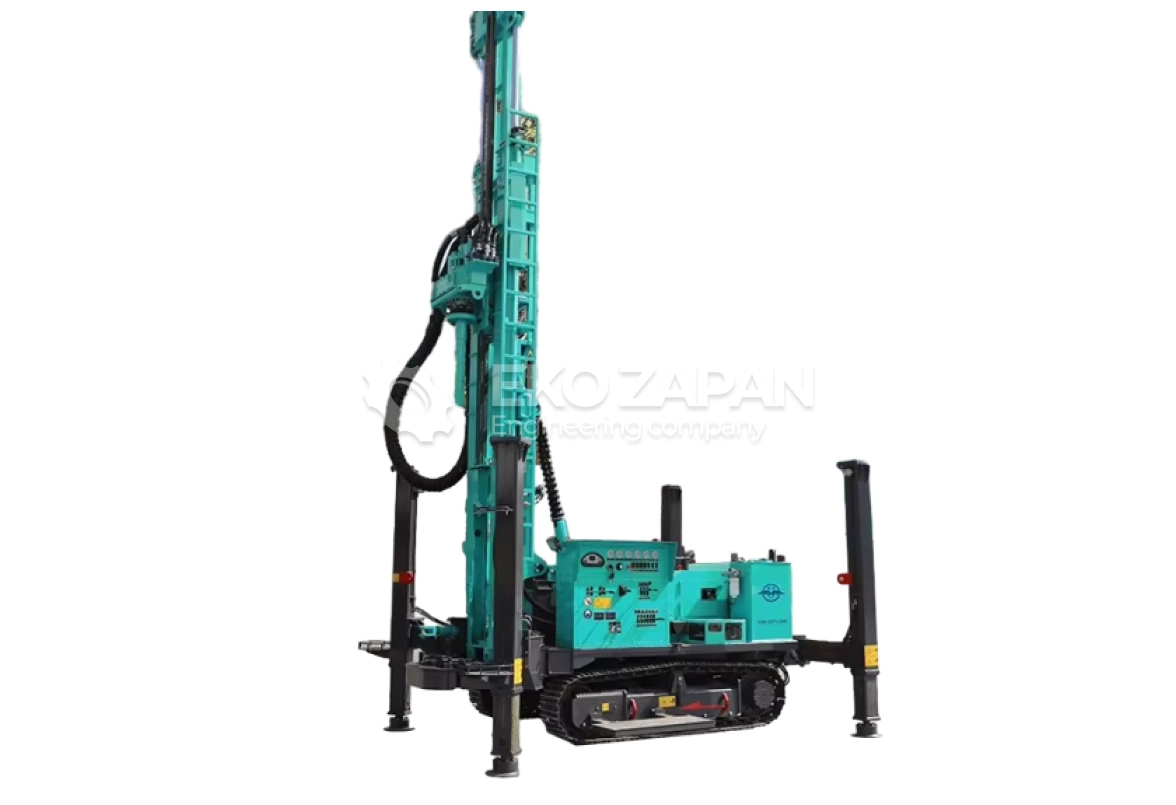

Hydraulic Tracked Drilling Rig
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 17 900
$
Article: 1917
Specifications
| Parameter | Description |
| Weight | 8,500 kg |
| The main components | Motor, Pump, bearing |
| Drilling diameter | 105-325 mm |
| Drilling depth | Max. 560 m |
| Type of power supply | Diesel |
| Using | Water well |
| Voltage | 220 V / 380 V |
| Dimensions (L*W*H) | 4800*2000*2450 mm |
| Operating pressure | 1.05-3.5 MPa |
| Maximum lifting force | 16 tons |
| Air consumption | 16-60 m3/min |
| Rotation speed | 0-90 rpm |
| Maximum torque | 8000 N.m |
| Movement speed | 3 km/h |
| Length of the drill rod | 3 m |
| Diameter of the drilling rod | 76/89 mm |
| Max. torque | 4500-6500 NM |
| Product Name | Drilling rig for water wells 300 m |
