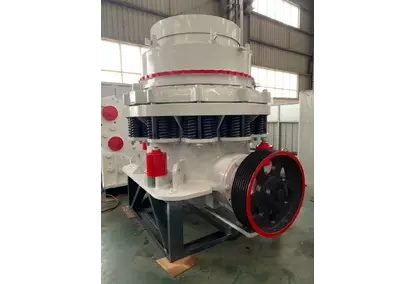

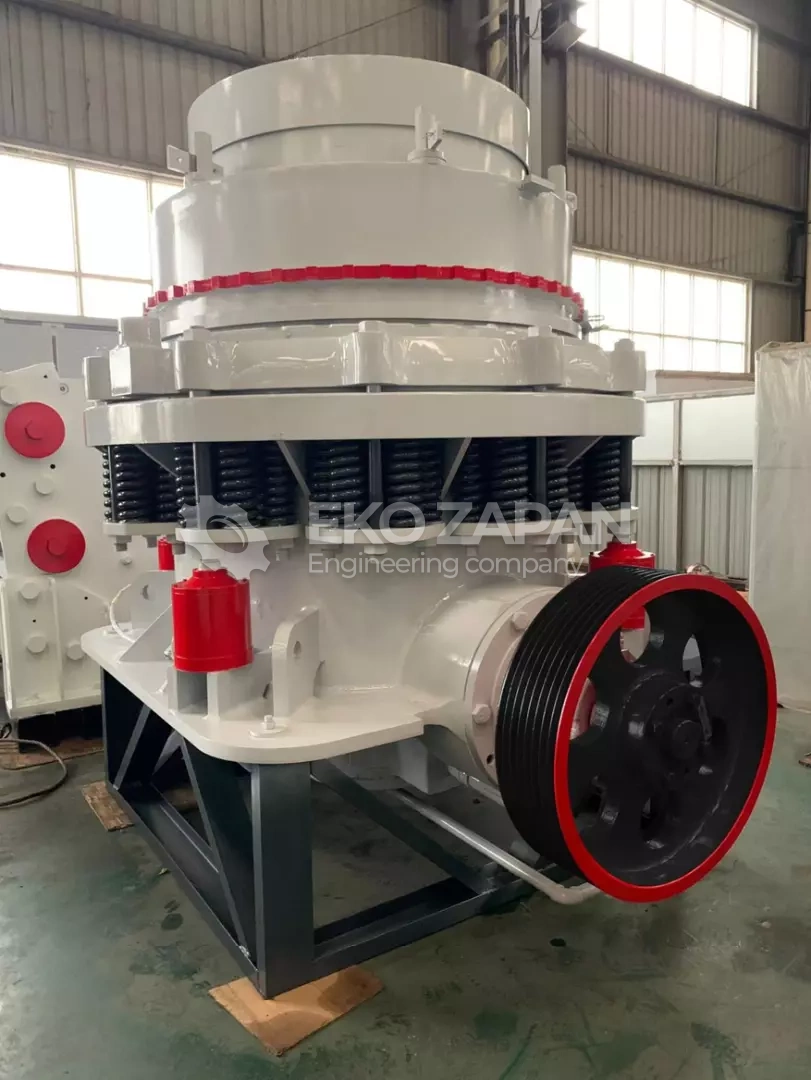

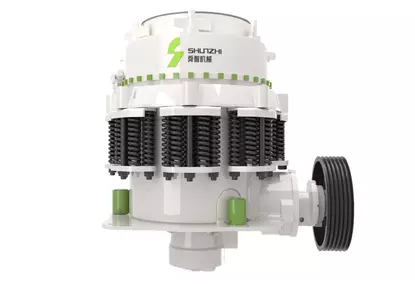

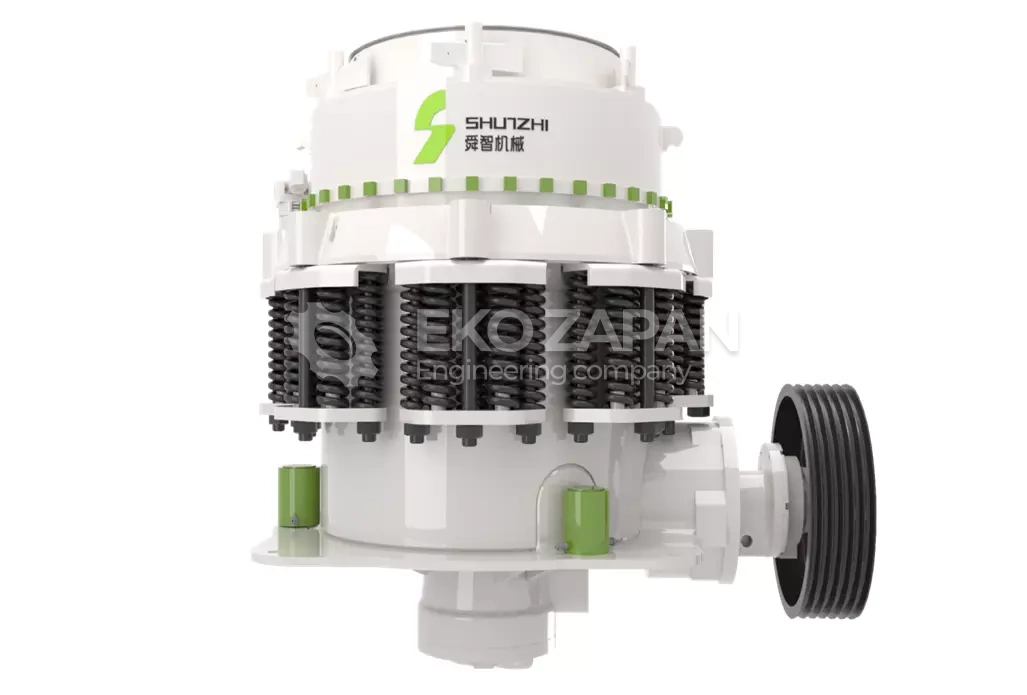

Simons SG Series Cone Crusher
Zapan Stone Machinery LTD. Co.
Web-site:
http://chinashunzhi.com
Email:
anna@chinashunzhi.com
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
Direct connection with the manufacturer
From 9 300 $
Article: 2702
It may take some time for a response.
Specifications

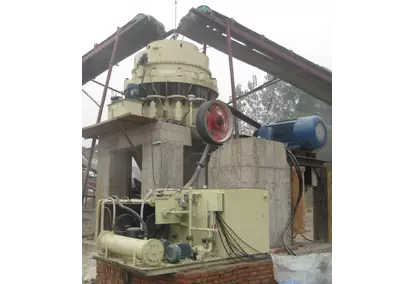

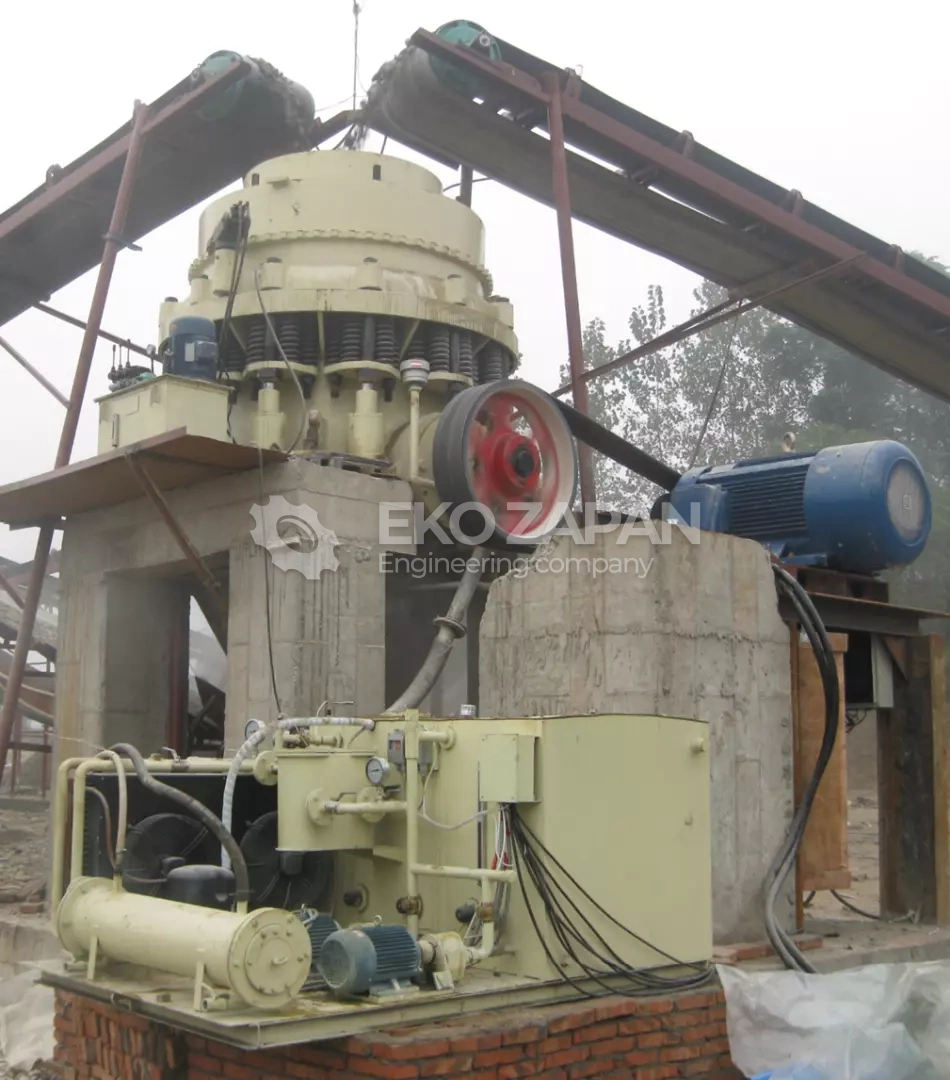

Simons SG series cone crushers are widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry and silicate industry. They are suitable for crushing various ores and rocks of medium and above average hardness. This machine is characterized by large crushing force, high efficiency, high productivity, low maintenance costs and easy adjustment. It is made of high-quality materials, has a reasonable design, and the crushed products have a uniform particle size, which reduces the load on the cycle.

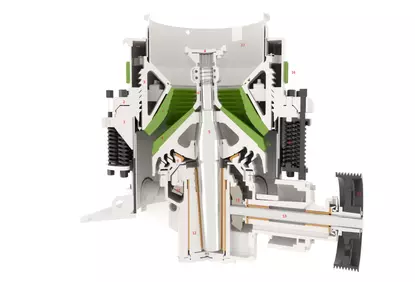

Simons SG Series Cone Crusher Components
- Main frame
- Support sleeve
- Adjusting sleeve
- Separation plate
- Main shaft
- Spindle Bushing
- Collector wall
- Crushing wall
- Movable cone
- Big gear
- Small gear
- Eccentric bushing
- Drive shaft
- Belt pulley
- Spring
- Hydraulic adjusting device
- Loading hopper
Performance Benefits
- The crusher uses a multi-cylinder hydraulic cavity cleaning system, which reduces downtime and labor costs.
- Each crusher has different types of cavities, allowing users to choose the right type depending on their needs.
- A compensable lubricating seal prevents dust contamination of the lubricating oil, increasing the reliability and durability of all parts of the machine.
- The safety system is based on a multi-group spring design that allows foreign objects and iron blocks to pass through the crushing cavity without harm to the crusher, ensuring simplicity and reliability.
Available models
SG30 (2')
| Type of cavity | Outlet adjustment range (mm) | Minimum output size (mm) | Max. input material size (mm) | Capacity (t/h) | Main engine power (kW) | Weight (Kg) |
| Standard thin type | 6-38 | 70 | 60 | 16-50 | 30 | 4500 |
| Standard Medium Type | 10-38 | 95 | 80 | 18-65 | ||
| Standard thick type | 13-38 | 110 | 90 | 22-70 | ||
| Short-headed type | 3-13 | 35 | 30 | 9-35 | ||
| Short thick type | 5-16 | 50 | 40 | 22-70 |
SG75 (3')
| Type of cavity | Outlet adjustment range (mm) | Minimum output size (mm) | Max. input material size (mm) | Capacity (t/h) | Main engine power (kW) | Weight (Kg) |
| Standard thin type | 9-22 | 102 | 85 | 45-91 | 75 | 10530 |
| Standard thick type | 13-38 | 175 | 150 | 59-163 | ||
| Standard supergrub type | 25-38 | 178 | 150 | 118-163 | ||
| Short-headed type | 3-13 | 41 | 35 | 27-90 | ||
| Short-headed medium type | 3-16 | 76 | 65 | 27-100 | ||
| Short thick type | 6-19 | 102 | 85 | 59-129 |
SG160 (4.25')
| Type of cavity | Outlet adjustment range (mm) | Minimum output size (mm) | Max. input material size (mm) | Capacity (t/h) | Main engine power (kW) | Weight (Kg) |
| Standard thin type | 13-31 | 73 | 115 | 109-181 | 160 | 22460 |
| Standard Medium Type | 16-38 | 210 | 178 | 132-253 | ||
| Standard thick type | 19-51 | 241 | 205 | 172-349 | ||
| Standard supergrub type | 25-51 | 259 | 220 | 236-358 | ||
| Short-headed type | 3-16 | 64 | 54 | 36-163 | 22590 | |
| Short-headed medium type | 6-16 | 89 | 76 | 82-163 | ||
| Short thick type | 8-25 | 105 | 89 | 109-227 | ||
| Short-headed super-thick type | 16-25 | 133 | 113 | 118-236 |
SG250 (5.5')
| Type of cavity | Outlet adjustment range (mm) | Minimum output size (mm) | Max. input material size (mm) | Capacity (t/h) | Main engine power (kW) | Weight (Kg) |
| Standard thin type | 16-38 | 209 | 178 | 181-327 | 250 | 43270 |
| Standard Medium Type | 22-51 | 241 | 205 | 258-417 | ||
| Standard thick type | 25-64 | 269 | 228 | 299-635 | ||
| Standard supergrub type | 38-64 | 368 | 373 | 431-630 | ||
| Short-headed type | 5-13 | 70 | 60 | 90-209 | 43870 | |
| Short-headed medium type | 6-19 | 89 | 76 | 136-281 | ||
| Short thick type | 10-25 | 133 | 113 | 190-336 | ||
| Short-headed super-thick type | 13-25 | 133 | 113 | 253-336 |
SG400 (7')
| Type of cavity | Outlet adjustment range (mm) | Minimum output size (mm) | Max. input material size (mm) | Capacity (t/h) | Main engine power (kW) | Weight (Kg) |
| Standard thin type | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 |
| Standard Medium Type | 25-51 | 334 | 284 | 862-1424 | ||
| Standard thick type | 31-64 | 369 | 314 | 1125-1814 | ||
| Standard supergrub type | 38-64 | 460 | 391 | 1252-1941 | ||
| Short-headed type | 5-76 | 105 | 89 | 218-463 | 89500 | |
| Short-headed medium type | 10-19 | 133 | 113 | 404-580 | ||
| Short thick type | 13-25 | 178 | 151 | 517-680 | ||
| Short-headed super-thick type | 16-25 | 203 | 172 | 580-744 |
