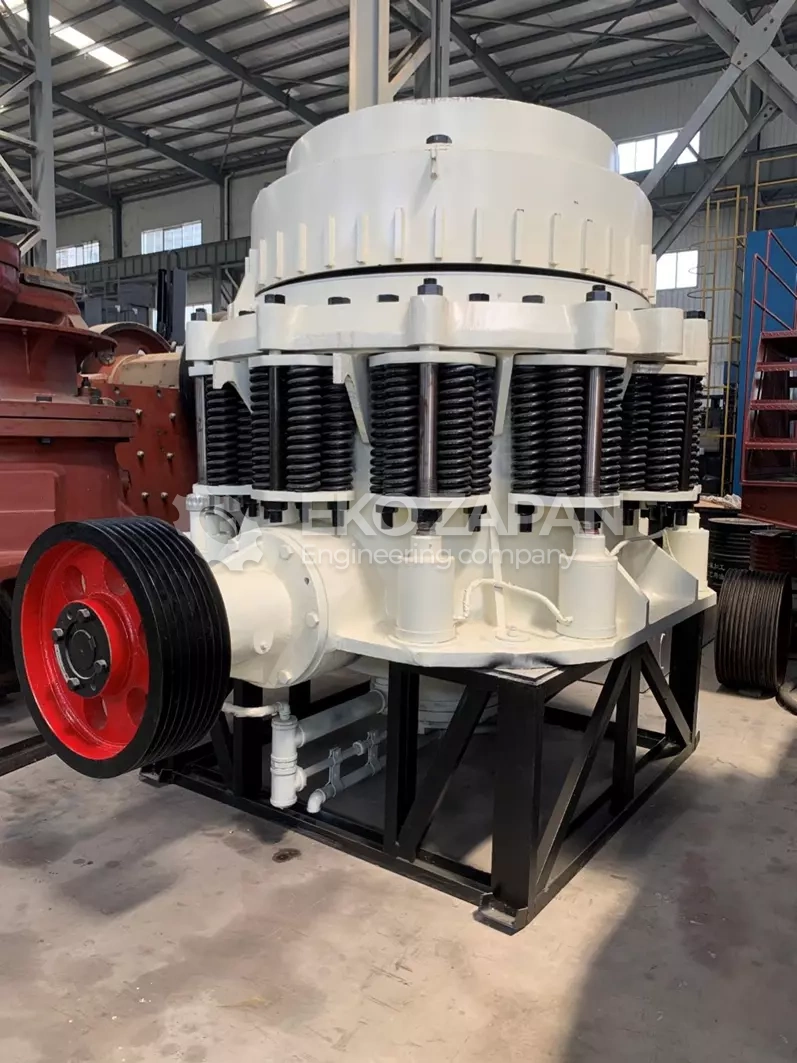

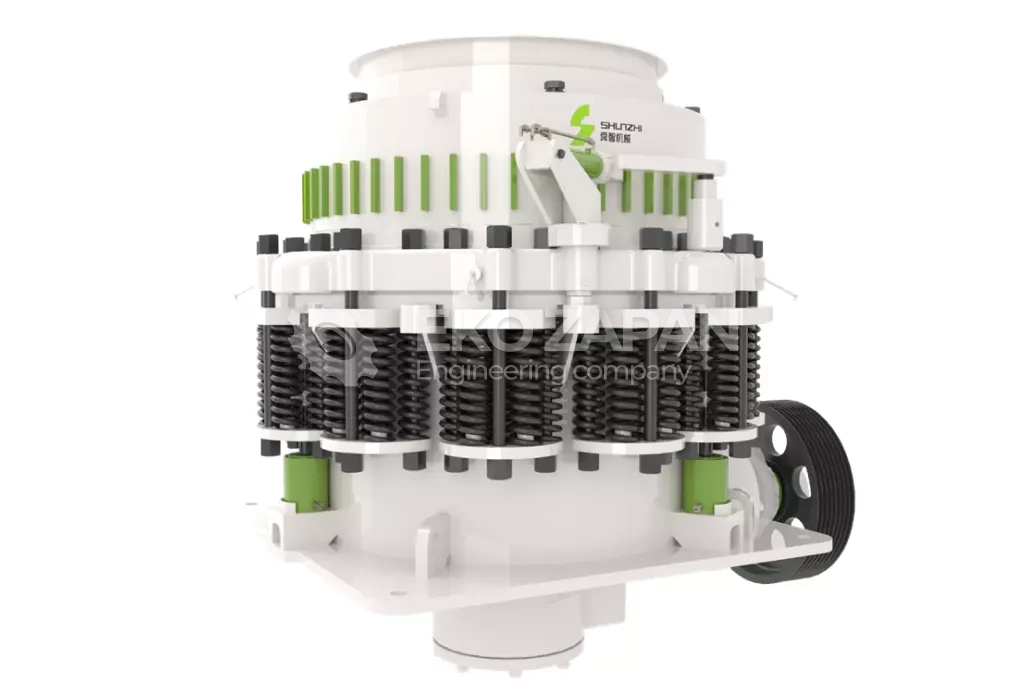

SZ Series Composite Cone Crusher

The SZ series composite cone crusher combines the advanced experience of domestic and foreign cone crushers, uses an optimized design concept, inherits the original spring crushing structure, features a reliable design and low failure rate. Additionally, a hydraulic cavity cleaning system and a discharge orifice adjustment system have been added, which reduces downtime and reduces the complexity of maintenance.

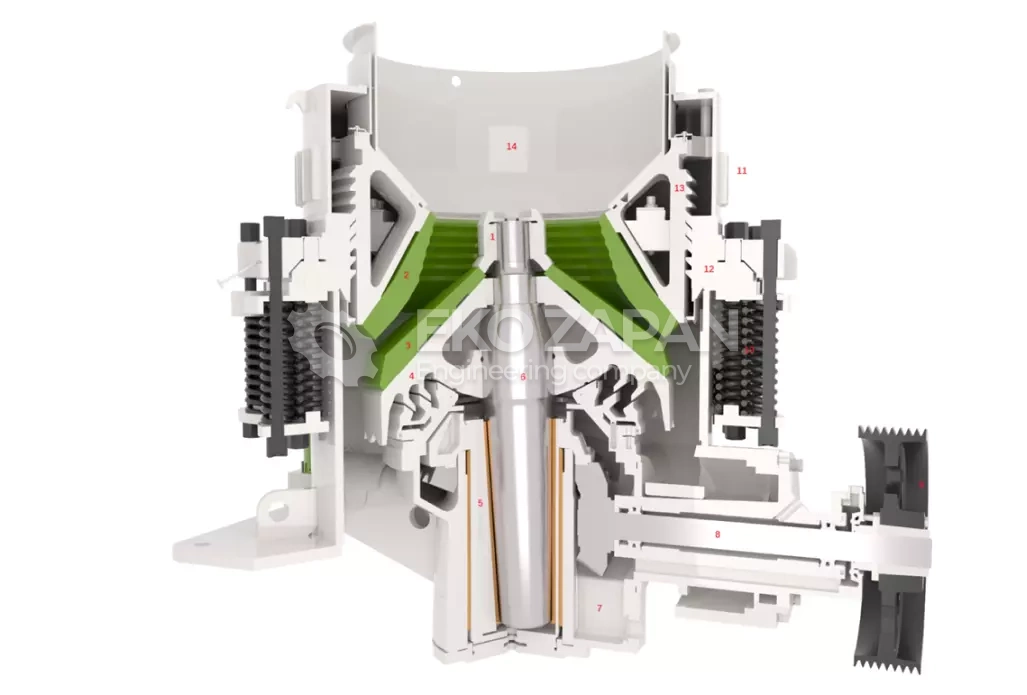

Components of the SZ series composite cone crusher

1. Cone Cap
2. The cone wall
3. Crushing wall
4. Movable cone
5. Eccentric bushing
6. The main axis
7. Main frame
8. Drive shaft
9. Belt pulley
10. Spring
11. Hydraulic adjusting device
12. Support sleeve
13. Adjusting sleeve
14. Loading hopper

Performance Benefits

1. The drive shaft is designed with a bearing, which ensures higher transmission efficiency.
2. The hydraulic adjustment of the outlet and the cleaning system of the hydraulic cavity make operation more convenient.
3. The housing made of high-strength cast steel provides durability and strength.
4. The possibility of using different cavity configurations to meet different working conditions.
