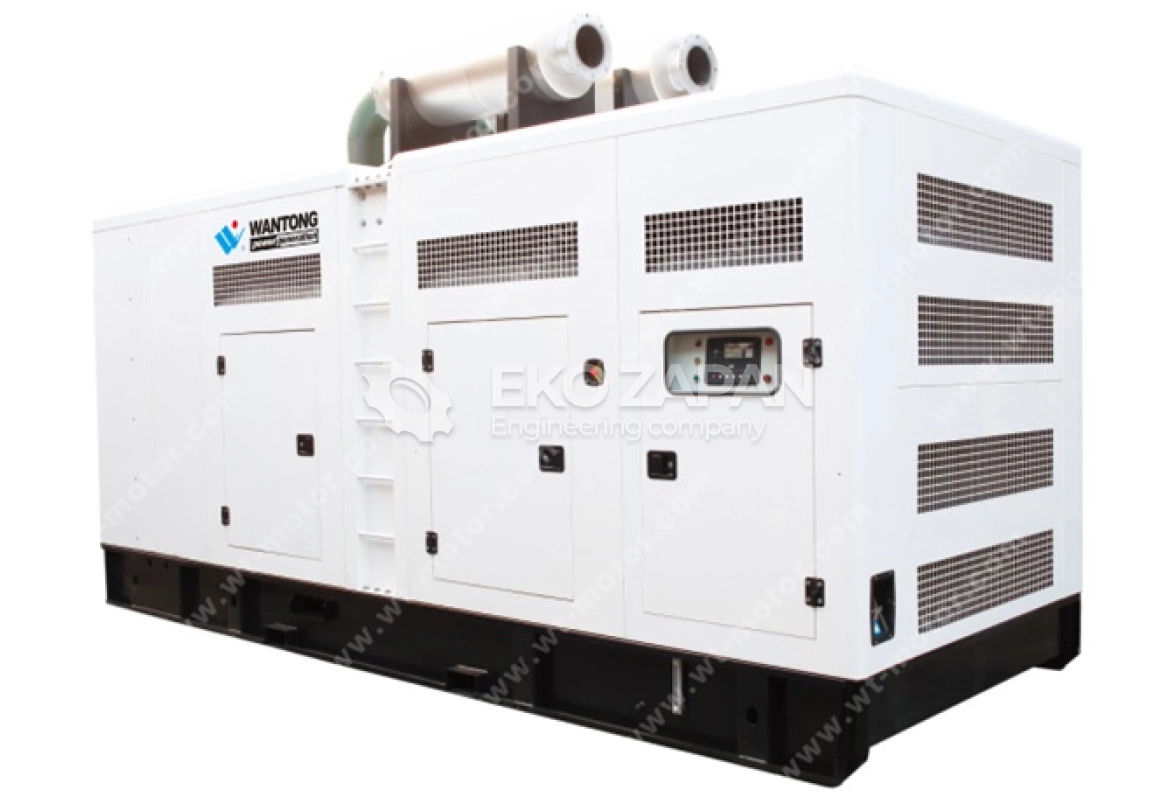

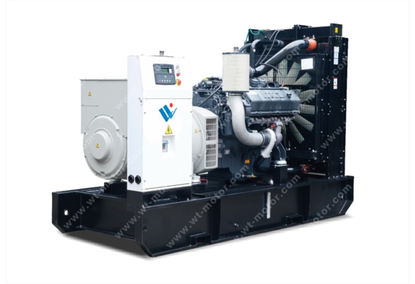

Diesel generator WT 220-2400 kW (MTU engine)

Diesel generator WT 220-2400 kW (MTU engine)

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 9 700 $

Article: 255

Specifications

Diesel generator					Engine characteristics (50 Hz/1500 rpm)									The generator		Size and weight
Model	Power(kW/kVA)				Model	Power/kW		Fuel consumption		*Cylinder Diameter * Stroke (Qty×mm×mm)**	Working volume (liters)	Compression ratio	Type of boost	WANTONG	Rated voltage (V)	Open type size (mm)	Weight (kg)	Closed type size (mm)	Weight (kg)
Model	Rated power		Backup power		Model	Rated power	Backup power	g/kWh.	L/h	*Cylinder Diameter * Stroke (Qty×mm×mm)**	Working volume (liters)	Compression ratio	Type of boost	WANTONG	Rated voltage (V)	Open type size (mm)	Weight (kg)	Closed type size (mm)	Weight (kg)
WT-MT303	220	275	242	303	6R1600G10F	242	266	196	55.8	6×122×150	10.5	17.5:1	TC	WT-C4D	380, 400, 415, 440, 200, 208, 220, etc.	2830×1100×1650	2818	390016002200	4100
WT-MT344	250	313	275	344	6R1600G20F	269	296	195	61.7	6×122×150	10.5	17.5:1	TC	WT-C4ES		2830×1100×1650	2908	390016002200	4200
WT-MT413	300	375	330	413	8V1600G10F	325	358	210	80.29	8×122×150	14	17.5:1	TC	WT-C4FS		2930×1100×1690	3366	390018002200	4650
WT-MT440	320	400	352	440	8V1600G20F	358	394	193	81.29	8×122×150	14	17.5:1	TC	WT-C4F		2930×1100×1690	3466	390018002200	4750
WT-MT500	360	450	396	495	10V1600G10F	407	448	191	91.46	10×122×150	17.5	17.5:1	TC	WT-C5C		3100×1280×1960	3915	450018002200	5400
WT-MT550	400	500	440	550	10V1600G20F	448	493	190	100.14	10×122×150	17.5	17.5:1	TC	WT-C5D		3200×1280×1960	4075	450018002200	5450
WT-MT660	480	600	528	660	12V1600G10F	524	576	192	118.36	12×122×150	21	17.5:1	TC	WT-C5E		3650×1315×1960	4710	500018002200	6300
WT-MT723	525	656	578	723	12V1600G20F	576	634	192	130.11	12×122×150	21	17.5:1	TC	WT-C5F		3770×1315×1960	4865	500018002200	6400
WT-MT715	520	650	572	715	12V2000G25	580	635	203	138.52	12×130×150	23.88	16:1	TC	WT-C5F		3890×1450×2115	5417	540018002450	7200
WT-MT860	640	800	685	856	12V2000G65	695	765	202	165.16	12×130×150	23.88	16:1	TC	WT-LV6C		4170×1450×2115	5657	20GP	7900
WT-MT1004	730	913	803	1004	16V2000G25	810	890	198	188.68	16×130×150	31.84	16:1	TC	WT-LV6D		4520×1450×2290	6748	20GP	9100
WT-MT1100	800	1000	880	1100	16V2000G65	890	975	198	207.32	16×130×150	31.84	16:1	TC	WT-LV6E		4670×1450×2290	6888	20GP	9200
WT-MT1240	900	1125	990	1238	18V2000G65	1000	1100	202	237.65	18×130×150	35.82	16:1	TC	WT-LV6F		4820×1900×2465	7704	40HQ	11200
WT-MT1375	1000	1250	1100	1375	18V2000G26F	1102	1212	199	258	18×135×156	40.2	17.5:1	TC	WT-LV6G		5780x2200x2500	11473	40HQ	15000
WT-MT1510	1100	1375	1210	1513	12V4000G23R	1205	1325	195	276.4	12×170×210	57.2	16.5:1	TC	WT-PI7B		5750x2200x2500	11748	40HQ	15500
WT-MT1800	1320	1650	1420	1775	12V4000G23	1420	1575	221	369.2	12×170×210	57.2	16.4:1	TC	WT-PI7D		5790×2240×2920	12331	40HQ	16200
WT-MT2000	1450	1813	1600	2000	12V4000G63	1575	1750	193	357.62	12×170×210	57.2	16.4:1	TC	WT-PI7E		5880×2240×2920	12611	40HQ	16500
WT-MT2270	1650	2063	1815	2269	16V4000G23	1798	1965	192	406.14	16×170×210	76.3	16.4:1	TC	WT-PI7F		6670×2610×2920	13148	40HQ	17000
WT-MT2475	1800	2250	1980	2475	16V4000G63	1965	2185	191	441.55	16×170×210	76.3	16.4:1	TC	WT-PI7G		6770×2610×2920	14835	40HQ	18500
WT-MT2750	2000	2500	2200	2750	20V4000G23	2200	2420	195	504.71	20×170×210	95.4	16.4:1	TC	/		7250×2910×3230	19050	40HQ	23000
WT-MT3000	2200	2750	2400	3000	20V4000G63	2420	2670	193	549.48	20×170×210	95.4	16.4:1	TC	/		7250×2910×3230	19150	40HQ	23500
WT-MT3200	2400	3000	2600	3250	20V4000GG63L	2590	2850	192	585.04	20×170×210	95.4	16.4:1	TC	/		7280×2910×3230	20150	40HQ	24500
