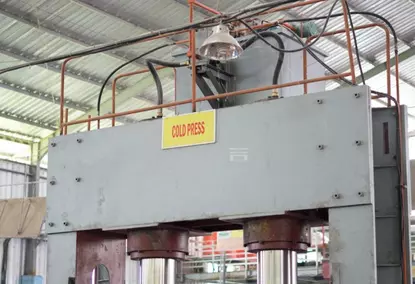

Cold press for plywood

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 30 600 $

Article: 333

Specifications

Feature: The cylinder + hydraulic tank are installed in the upper position.

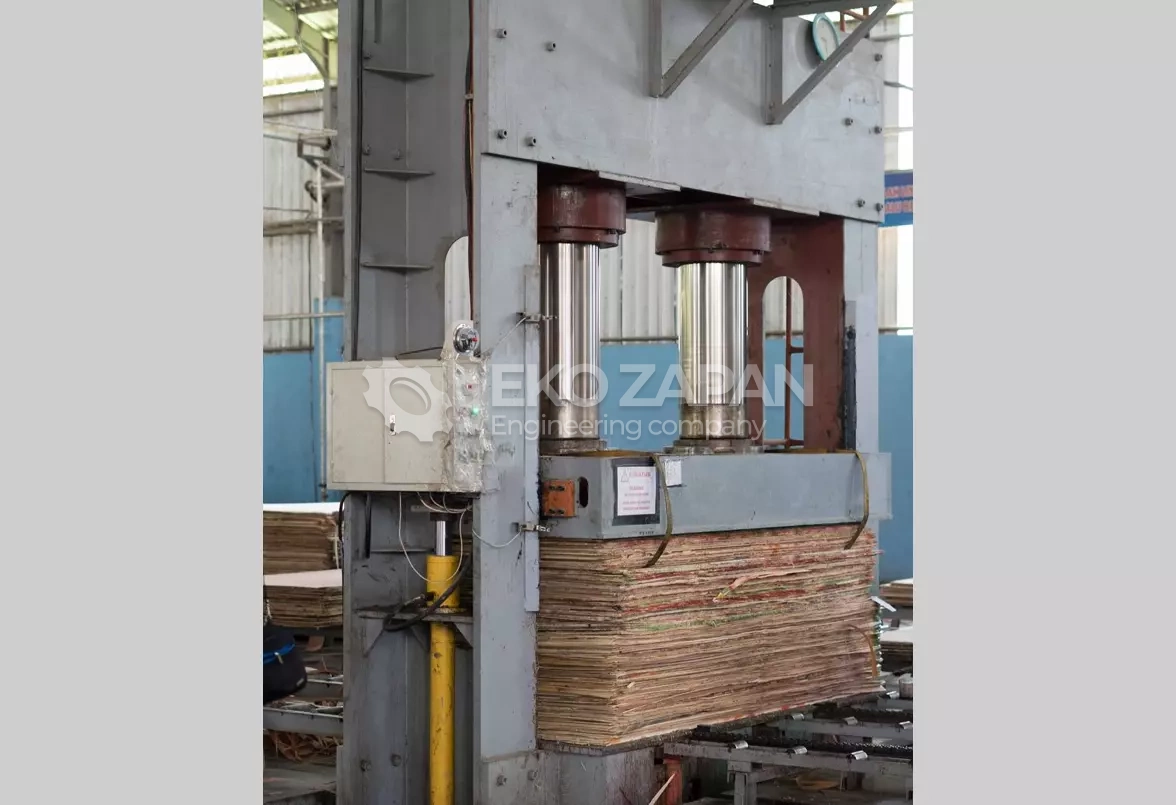

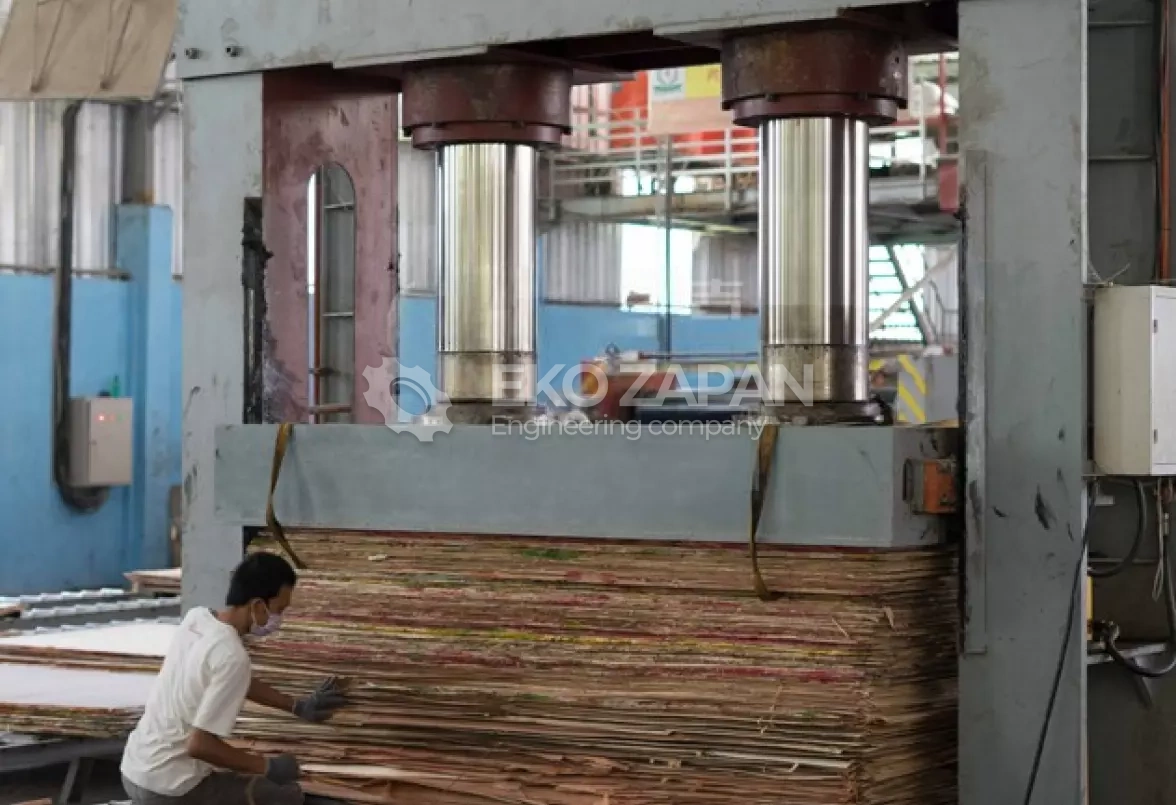

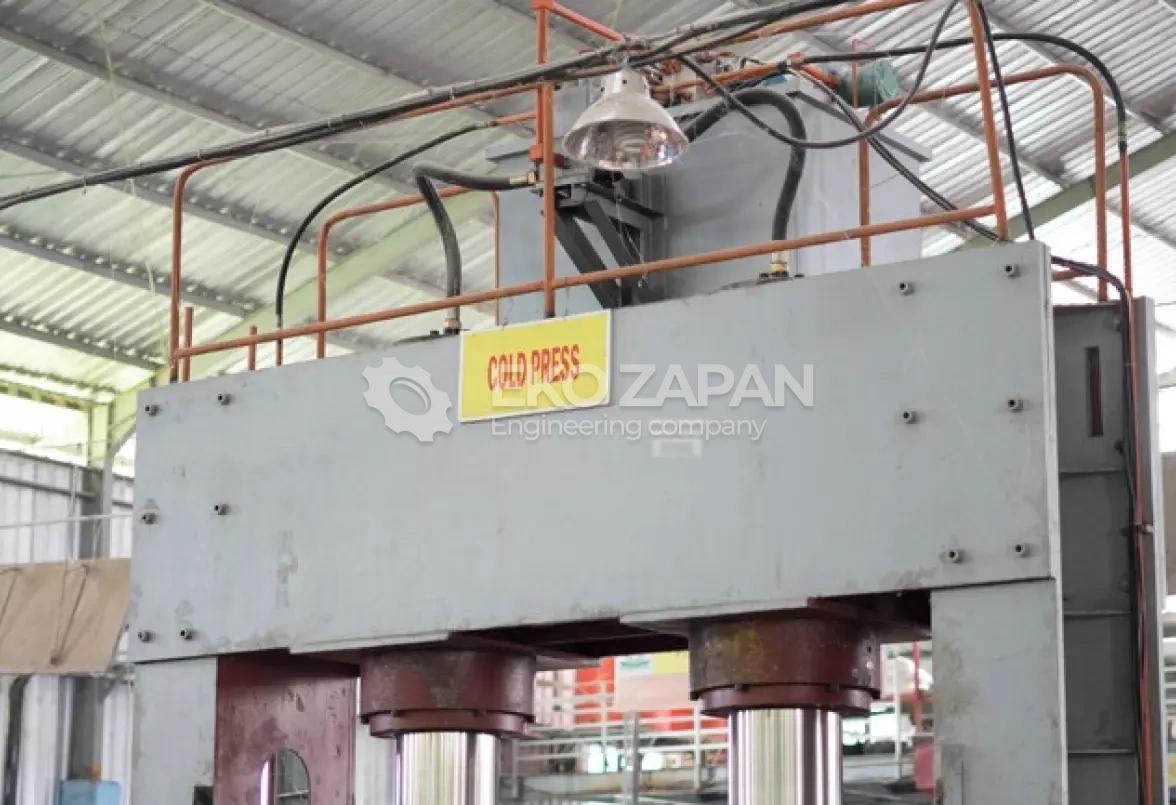

Description of the cold press for plywood

A cold press is a necessary equipment in the production of plywood. This machine is used to pre-press glued veneer to make it flat and ensure its adhesion. The machine is suitable for pre-pressing in the production of plywood, blockboard and decorative panels. Geelong's cold press specializes in woodworking processes and is suitable for the manufacture of cold-pressed cutting blades, grinding wheels and resin-based wheels, which can be completed if heating plates are used. In addition, the cold press can be used for MDF, fiberboard, veneered slabs, solid wooden slabs, wooden glue and in the woodworking industry.

Technical parameters

Parameter	Meaning
Model	GL-500T
The size of the hot plate	1370 x 2700 mm (4' x 8' ft)
Total pressure	500 Tons / 5000 KN
Specific pressure	16.8 kg/cm2
Main cylinders/rods	Diam. 360 mm x 2 sets
Opening cylinders	Diam. 80 x 2 sets
Opening distance	300-1200 mm
Pressing stroke (Max)	900 mm
The speed of lifting and lowering the plate	550 mm/min
Pressing speed	150 mm/min
Motor for the pump	11 kW x 4P
Motor for conveyor	0.75 kW x 4P
The total size of the finished machine	3610 x 2105 x 4645 mm (LxWxH)

This cold plywood press is designed to improve the efficiency and quality of the production process, ensuring high accuracy and uniformity during the pre-pressing of veneer.
