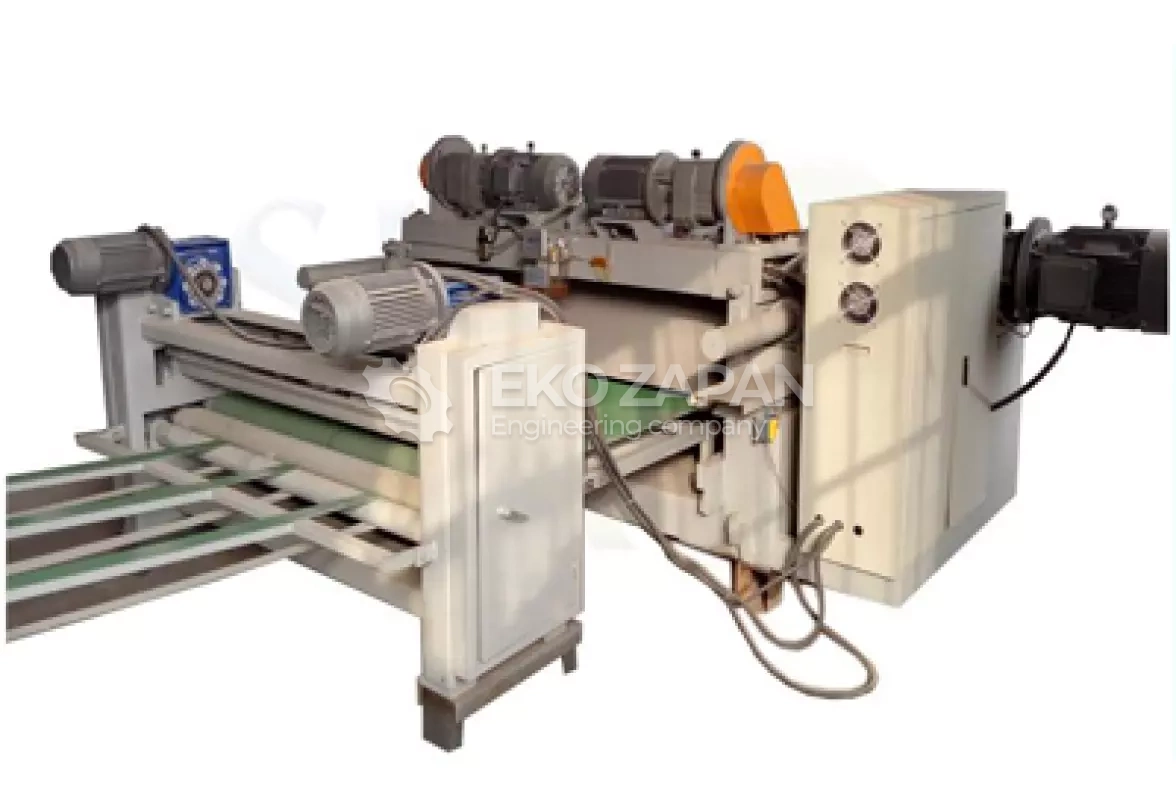

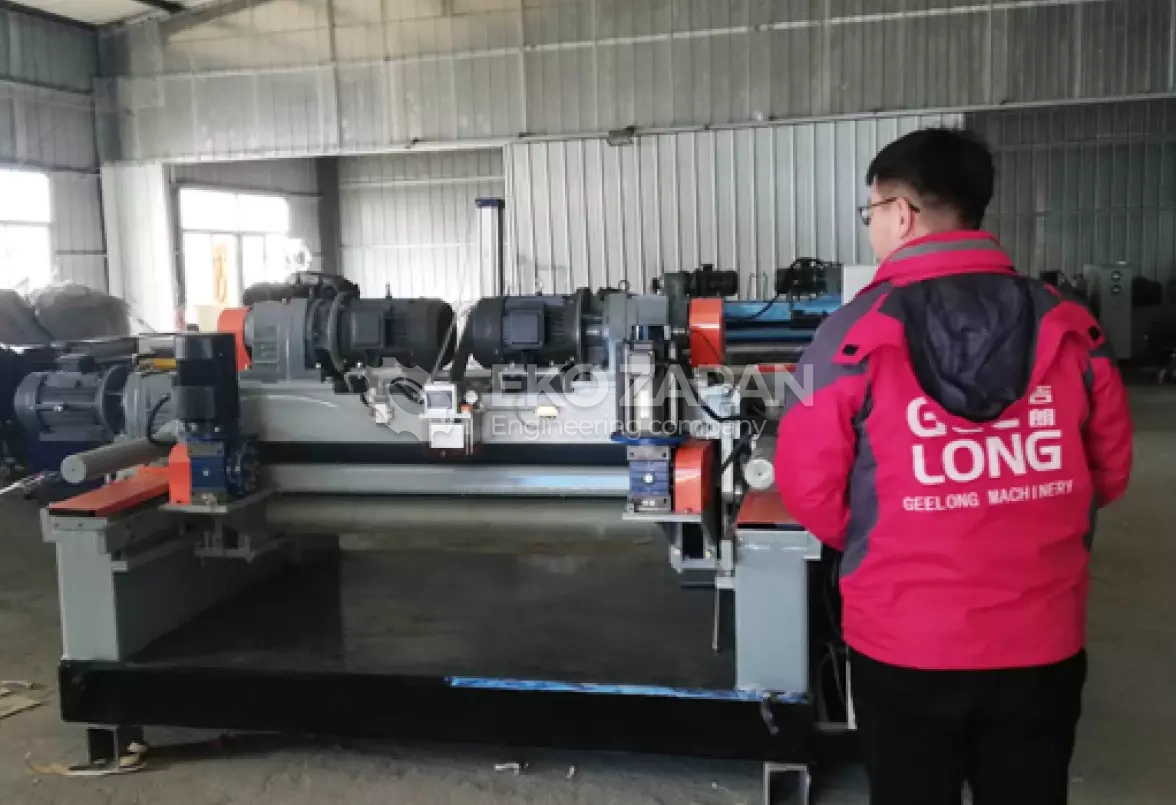

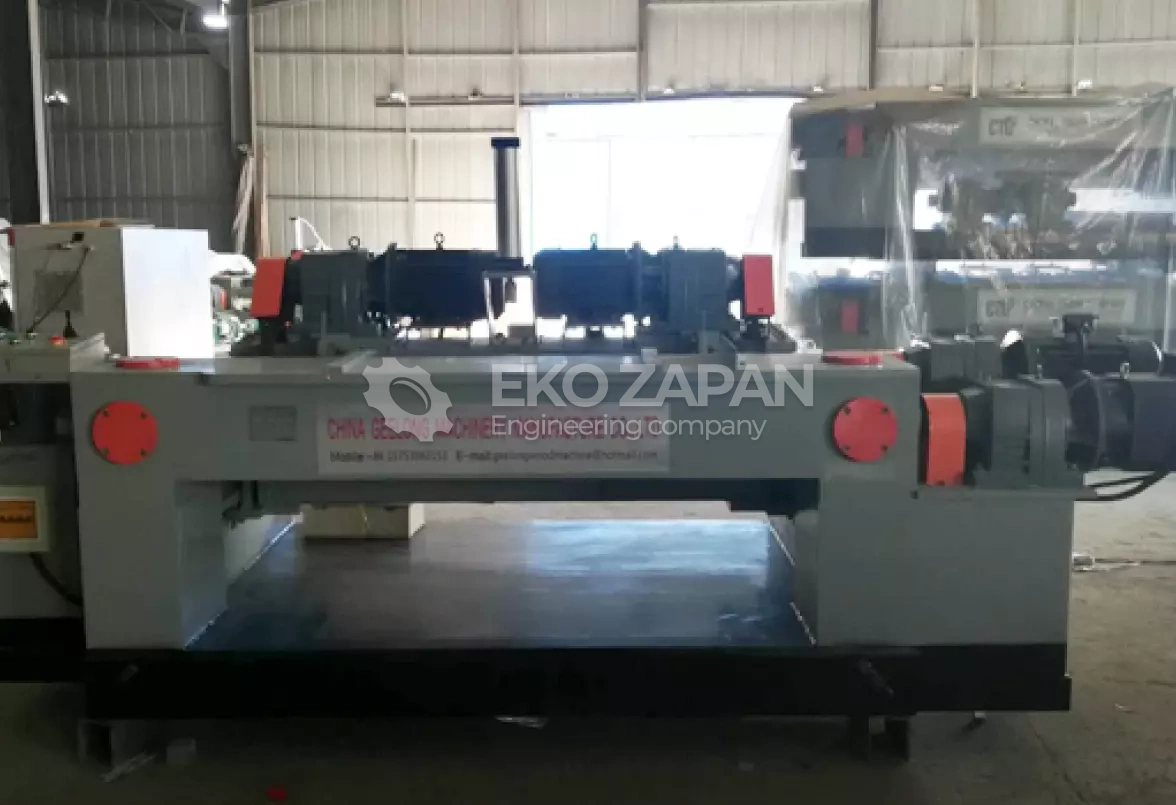

Veneer Peeling Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 15 500
$
Article: 329
Specifications
| Parameter | 4-foot machine with a speed of 45 m/min (with internal cutter) | 4-foot machine with a speed of 55 m/min (with an external cutter) |
| Length of the processed log | 1000-1300 mm | 1000-1300 mm |
| Diameter of the processed log | Diam. 28-Diam. 400 mm | Diam. 28-Diam. 400 mm |
| Blade Length | 1500 mm | 1500 mm |
| Veneer peeling thickness | 0.8-3.6 mm | 0.5-4 mm |
| Linear speed of the main machine | 45 m/min | - |
| Diameter of the drive roller | - | 120 mm |
| Diameter of the press roller | - | 120 mm |
| Feed motor power | 7.5kw servo motor | 7.5kw servo motor |
| Single roller power | 5.5 kW x 2 | 4 kW x 2 sets |
| Double roller power | 11 kW | 5.5 kW x 2 sets |
| Cutter power | 1.5 kW | 2.2 kw servo motor |
| Power of the rubber roller | 1.5 kW | - |
| Conveyor capacity | 1.5 kW | 1.5 kW |
| Total capacity | 34 kW | - |
| Screw and nut | Magnalium Alloy, Manufactured in China | - |
| Total weight | 4800 kg | 5200 kg |
| Overall dimensions | 4200x2000x1380 mm | 4500x1600x1400 mm |
