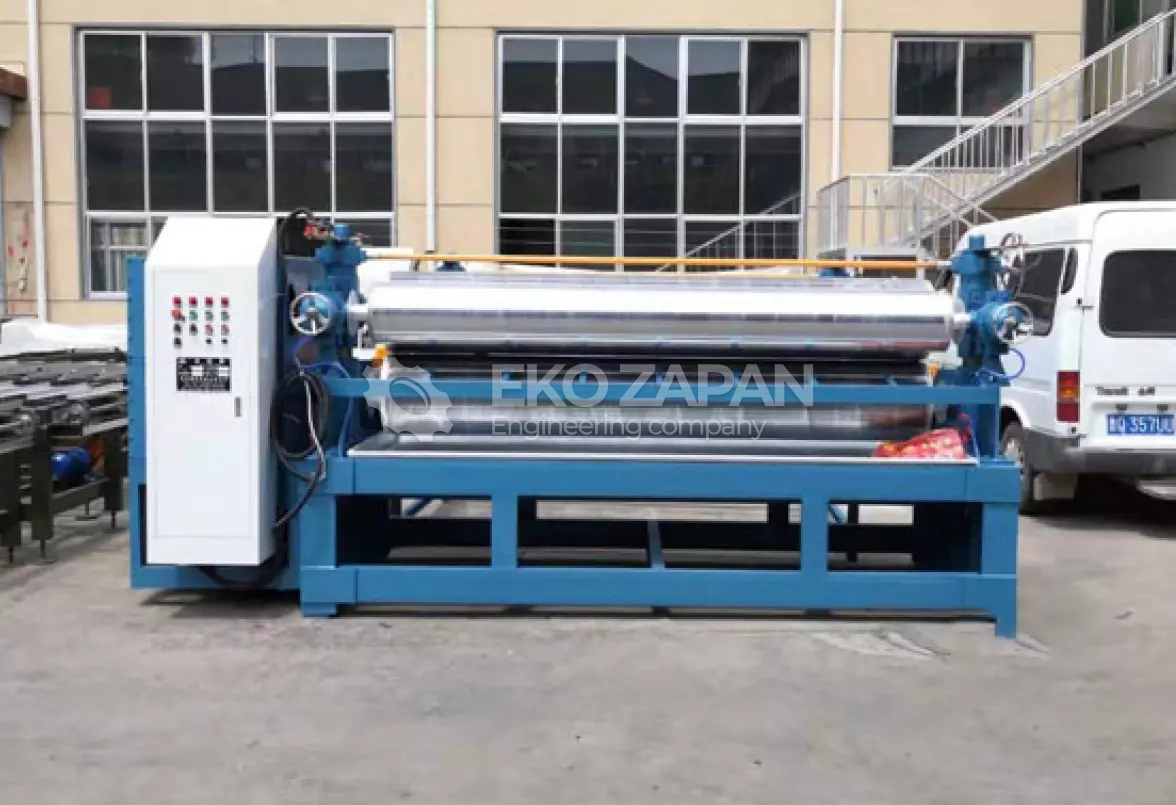

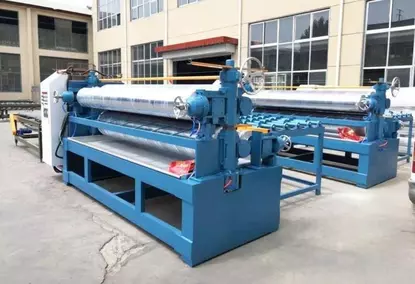

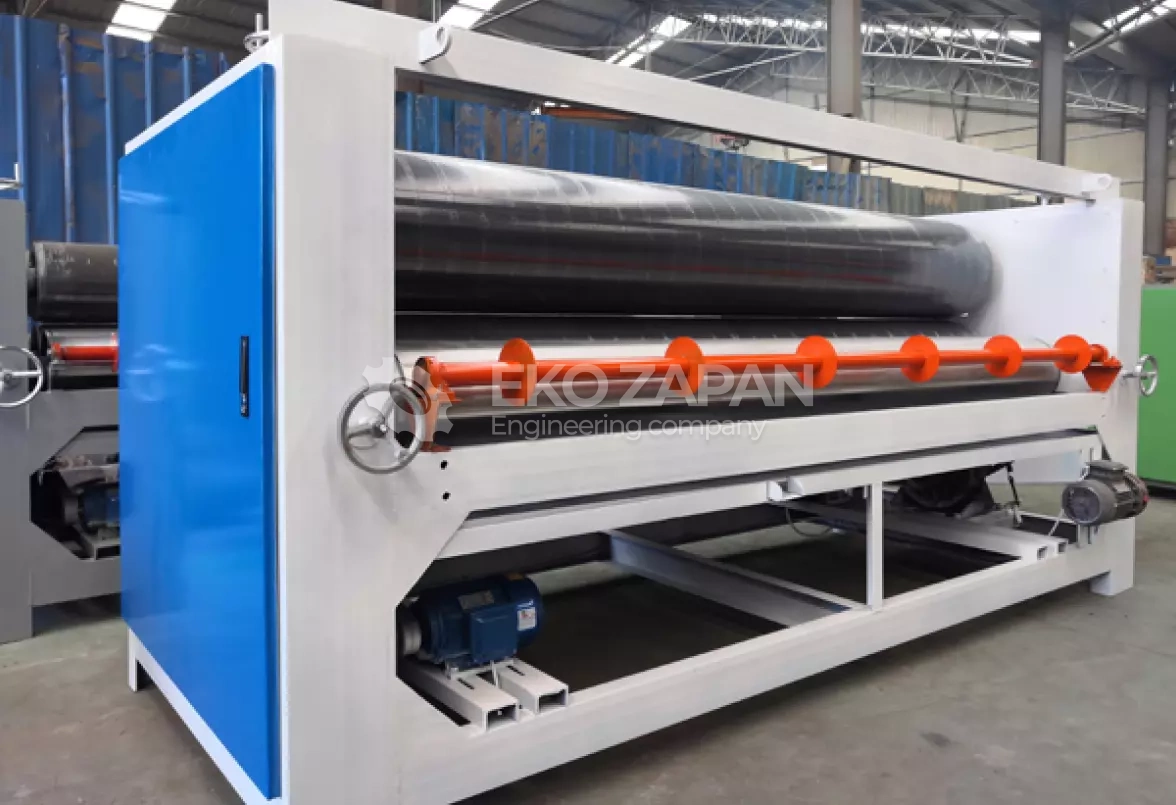

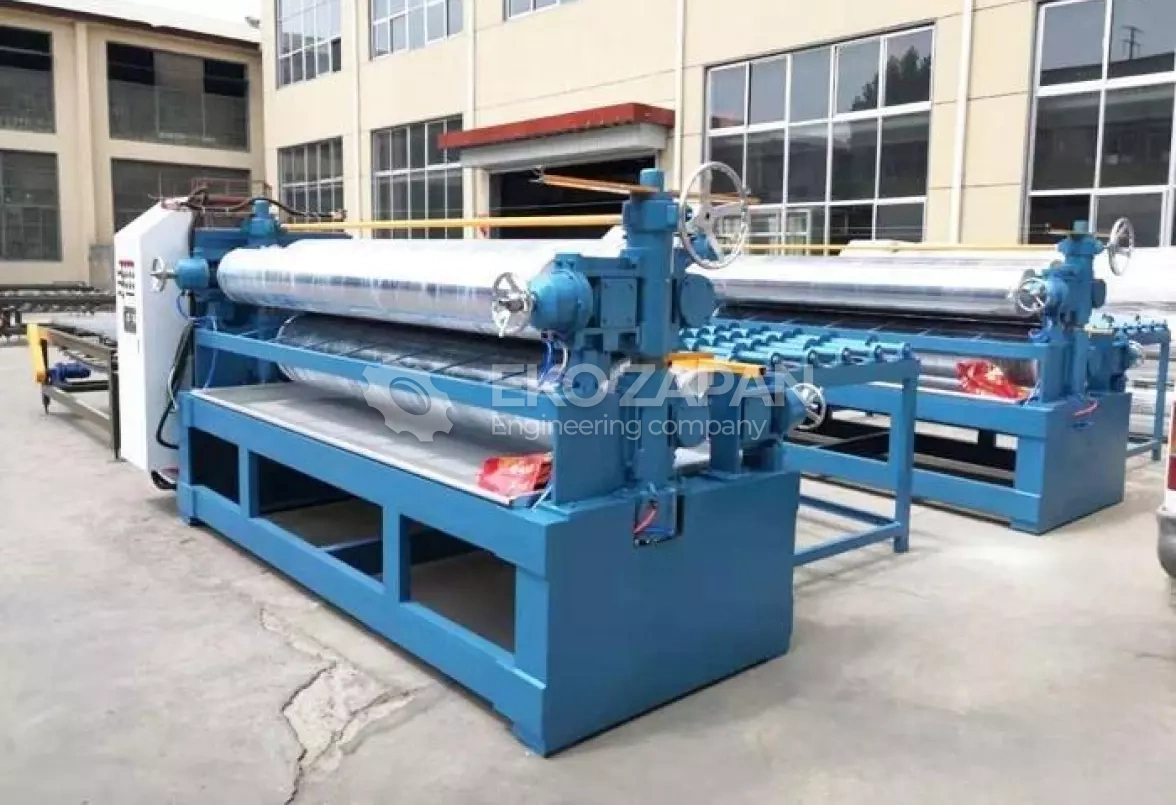

A machine for applying glue to plywood

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 22 000 $

Article: 331

Specifications

The glue application machine is necessary for the distribution of glue on core veneers, multilayer boards, plywood, chipboard and similar materials. It is available in various configurations, including three rollers for single-sided coating and four rollers for double-sided coating. Available in sizes from 1.22m to 2.74m, these machines can be customized according to the specific requirements of the customer. GEELONG brand machines are known for their high quality, reasonable design, uniform adhesive application, cost savings and ease of operation.

Features

Universal use for sound veneers, multilayer boards, plywood, chipboard, etc.
Uniform adhesive application with high performance
Saving glue, labor and total costs
Increase the use of glue and reduce waste
Rollers made of high-quality natural rubber and seamless steel pipes with chrome coating for durability
Equipped with a safety device for immediate stop in case of danger
Easy operation and maintenance

Technical specifications

Glue Application Machine 1.22m (4 Ft)

Parameter	Meaning
Size	2200 x 1000 x 1400 mm
Number of rollers	4 pcs.
Thickness of rubber	13 mm
Diameter of the glue roller	246 mm
Diameter of the spin roller	217 mm
The speed of glue application	24-90 m/min
Motor power	3 kW
Reducer	2 cycloid pins
Max. veneer width	1270 mm
Max. veneer thickness	20 mm
Total weight of the machine	1000 kg
HS Code	8465990000

Glue Application Machine 2.44m (8 Ft) and 2.74m (9 Ft)

Parameter	2.44 m (8 Ft)	2.74 m (9 Ft)
The speed of operation	0-30 m/min	0-30 m/min
Diameter of the glue roller	340 mm	415 mm
Length of the glue roller	2700 mm	2700 mm
Diameter of the spin roller	240 mm	270 mm
Length of the spin roller	2700 mm	2700 mm
Motor power	5.5 kW	7.5 kW
Max. veneer thickness	30 mm	30 mm
Max. veneer width	2700 mm	2700 mm
Overall dimensions	3500 x 1250 x 1400 mm	4200 x 1250 x 1400 mm
Machine weight	3200 kg	4000 kg
HS Code	8465990000	8465990000

These characteristics highlight the capabilities and features of GEELONG brand adhesive application machines, highlighting their adaptability, efficiency and ease of use for various plywood production requirements.
