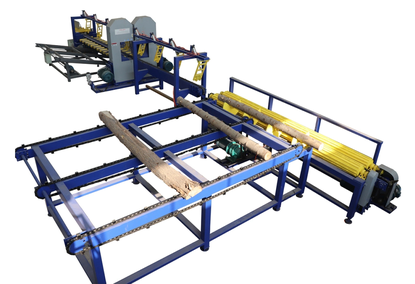

Machine with two vertical saws for cutting logs TVBS 600/800

Why Choose Us?

From 12 000 $

Article: 634

Specifications

Model	TVBS600	TVBS700	TVBS800
Diameter of the saw tree MM	100-350	100-450	100-600
Length of wood sawing	1000-4200	1000-4200	1000-6000
Diameter of the saw blade	700 MM	700 MM	800 MM
Feed rate	14 m/min	14 m/min	14 m/min
Length of the feed conveyor	3000 MM	3000 MM	3000 MM
Length of the exhaust conveyor	2000 MM	2000 MM	2000 MM
Saw engine	2*11KW	2*15KW	2*18.5 KW
Feed motor	2.2 KW	2.2 KW	2.2 KW
The width of the saw blade	75 MM	75 MM	100 MM
Thickness of the saw blade	0.9 MM	0.9 MM	0.9 MM

Model No.	TVBS600	TVBS700	TVBS800
Accuracy	Normal	Accuracy	Accuracy
Certification	CE, ISO	Individual	Individual
Condition	New	New	New
Colour	Red	Red	Red
After-sales Service	1 year	1 year	1 year
Warranty for the main components	1 year	1 year	1 year
Application	Forest/Factory/Home	Forest/Factory/Home	Forest/Factory/Home
The key arguments in favor of buying	Easy to operate	Easy to operate	Easy to operate
Voltage	380 V 50 Hz 3 Phases	380 V 50 Hz 3 Phases	380 V 50 Hz 3 Phases
Feed motor	2.2 kW	2.2 kW	2.2 kW
Weight (kg)	3000-3500 kg	3000-3500 kg	3000-3500 kg
Saw engine	2*18.5 kW	2*18.5 kW	2*18.5 kW
Feeding Conveyor Length	3000 mm	3000 mm	3000 mm
Diameter of the saw blade	800 mm	800 mm	800 mm
Diameter of wood sawing	100-6000 mm	100-6000 mm	100-6000 mm
Feed rate	14-20 m/min	14-20 m/min	14-20 m/min
Engine	Electric/Petrol/Diesel engine	Electric/Petrol/Diesel engine	Electric/Petrol/Diesel engine
Transport packaging	LCL/FCL	LCL/FCL	LCL/FCL
Specifications	31001402200 mm	31001402200 mm	31001402200 mm
Brand name	Sawmill World	Sawmill World	Sawmill World
Origin	Shandong Zouping	Shandong Zouping	Shandong Zouping
Production capacity	14-20 m/min	14-20 m/min	14-20 m/min
