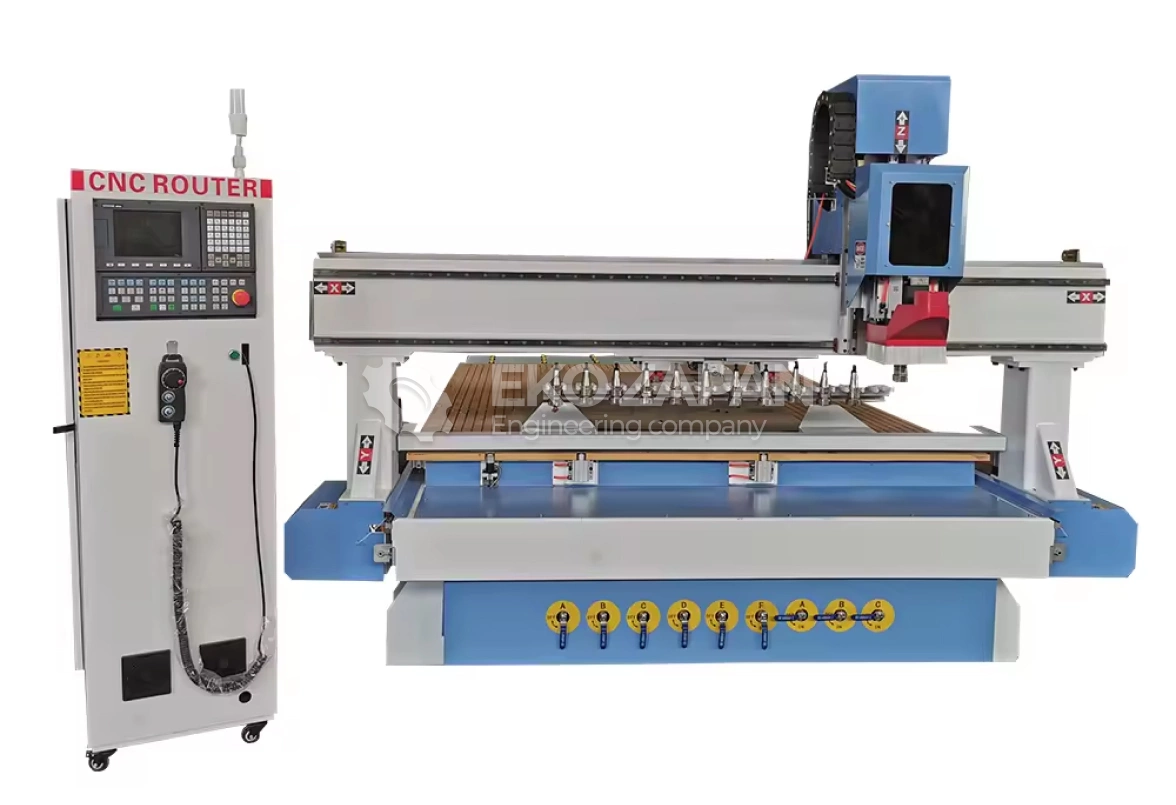

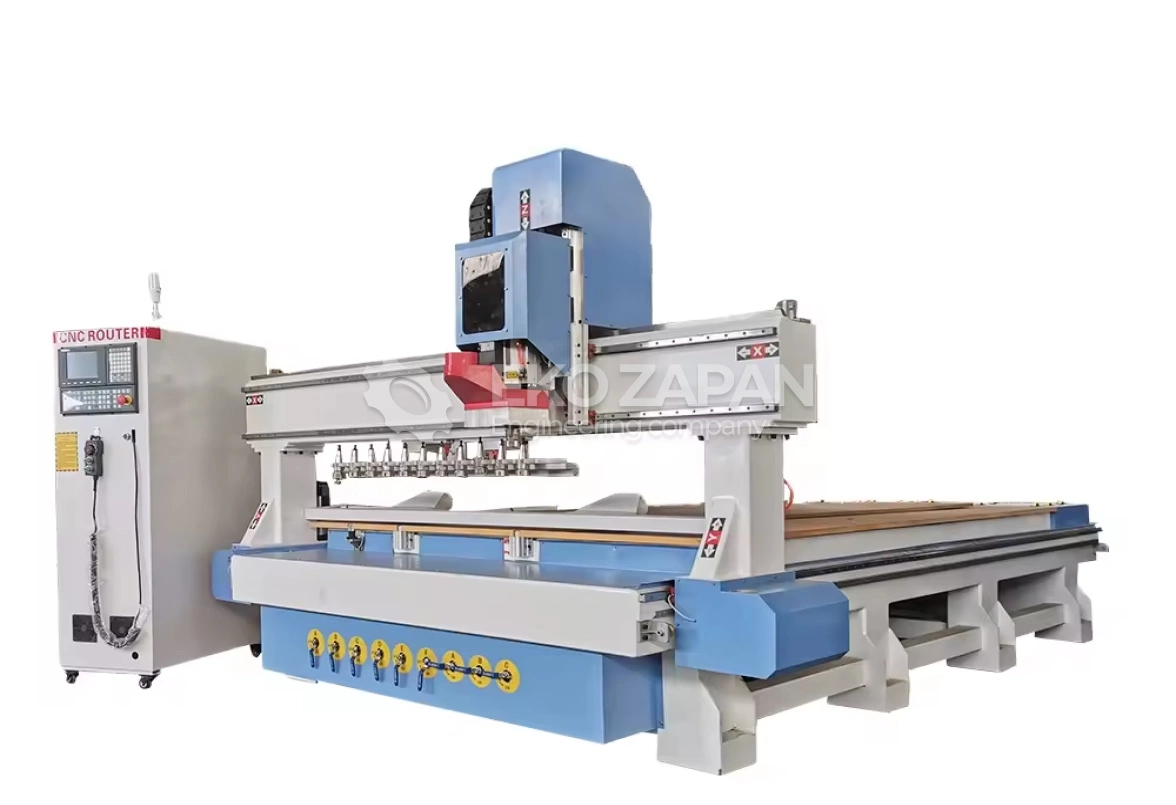

3-5-axis CNC Router with PBX for woodworking, Wood Mold Engraving Machine
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
From 2 900
$
Article: 865
Specifications
| Parameter | Description |
| Number of axes | 3 |
| Number of spindles | One |
| CNC or not | Yes |
| Weight (KG) | 1000 |
| Guarantee | 2 years |
| Spindle rotation speed range (rpm) | 1 - 18000 rpm |
| Positioning accuracy (mm) | 0.1 mm |
| Displacement (X-axis) (mm) | 1300 mm |
| Displacement (Y axis) (mm) | 2500 mm |
| Repeatability (X/Y/Z) (mm) | 0.1 mm |
| Spindle power (kW) | 3 |
| Brand name | ARTECH |
| Voltage | 220v/380v |
| Size (L*W*H) | 1300x2500x200mm |
| Power (kW) | 16 |
| Warranty of the main components | 1 year |
| The main components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Motor, Gearbox, Spindle |
| Z-axis transmission | Ball-screw transmission |
| Transmission along the X and Y axes | Rack and pinion |
| The spindle | 3kw air-cooled spindle |
| Working area | 1300x2500x200mm |
| The management system | DSP |
| The inverter | Fuling Inverter |
| Table | Vacuum table |
| The guide | Square Guide Taiwan Hiwin |
| The motor | Servo motor |
